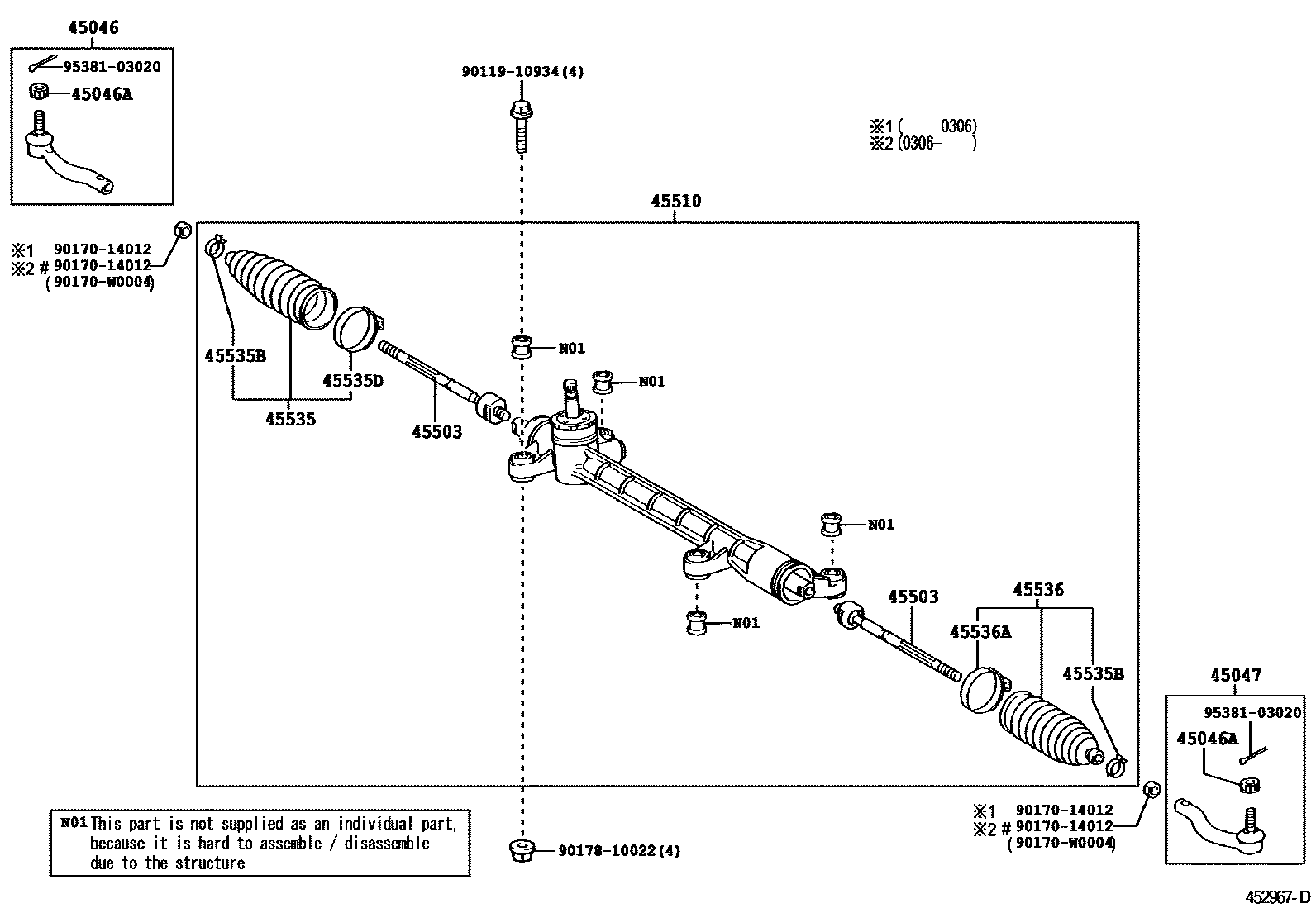

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09360iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200310-200406

main45046-19265iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200310

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCDE120,NDE120,ZZE12#..UKP200201-200406

45047END SUB-ASSY, TIE ROD, LH

main45047-09150iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200310-200406

main45047-19115iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200310

45503END SUB-ASSY, STEERING RACK

main45503-02080iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200310-200406

main45503-12130iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200310

sub45503-12131

45510GEAR ASSY, STEERING

main45510-02040iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL200201-200406

main45510-02050iCDE120..UKP..LHD..DCR;ZZE121..UKP..WG..4FC..TERRA200201-200406

45535BOOT, STEERING RACK, NO.1

main45535-09040iCDE120,ZZE12#..UKP200201-200406

45535BCLIP(FOR STEERING RACK BOOT)

main90466-22003iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-57006iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

45536BOOT, STEERING RACK, NO.2

main45535-09040iCDE120,ZZE12#..UKP200201-200406

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-57006iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

9011910934

main90119-10934

9017014012

main90170-14012

90170W0004

main90170-W0004

9017810022

main90178-10022

9538103020

main95381-03020

15 parts on this diagram · 2 diagrams in section
