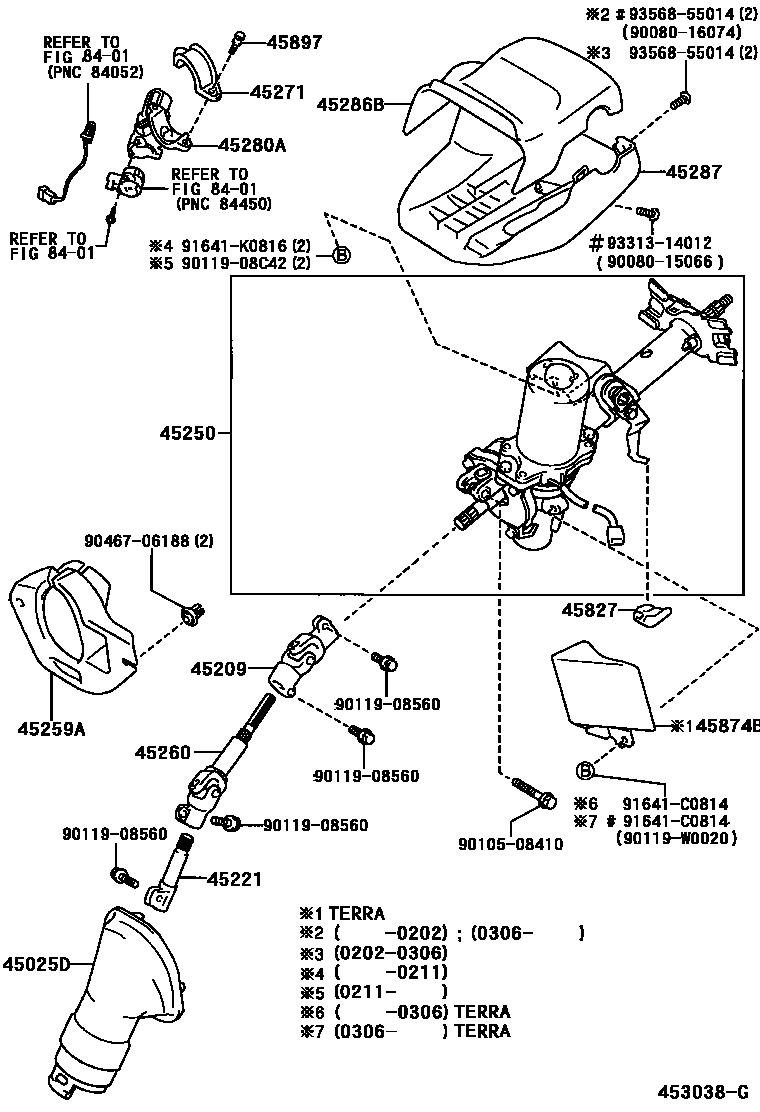

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02010iCDE120,NDE120,ZZE12#..UKP..RHD200301-200406

(L)

main45025-02060iZZE12#..UKP..LHD200301-200406

(L)

main45025-02070iCDE120,NDE120..UKP..LHD200301-200406

(L)

main45025-13050iCDE120,ZZE12#..UKP..RHD200201-200406

main45025-13050iCDE120,NDE120,ZZE12#..UKP..RHD200406

(J)

main45025-13060iZZE12#..UKP..LHD200201-200406

main45025-13060iZZE12#..UKP..LHD200406

(J)

main45025-13070iCDE120,NDE120..UKP..LHD200406

(J)

main45025-13070iCDE120..UKP..LHD200201-200406

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-02010iCDE120,ZZE12#..UKP..LHD200201-200404

sub45209-02H00

main45209-02011iCDE120,ZZE12#..UKP..LHD200405-200406

main45209-02020iCDE120,ZZE12#..UKP..RHD200201-200406

45221SHAFT, STEERING INTERMEDIATE

main45221-02020iCDE120,NDE120,ZZE12#..UKP200201-200309

sub45221-02021

main45221-02021iCDE120,ZZE12#..UKP200309-200404

sub45209-02H00

sub45260-02H00

main45221-02022iCDE120,ZZE12#..UKP200405-200406

45250COLUMN ASSY, STEERING

main45250-02310iCDE120,ZZE12#..UKP..RHD200201-200406

sub45250-02550

main45250-02320iCDE120,ZZE12#..UKP..LHD200201-200406

sub45250-02570

main45250-02470iCDE120,NDE120,ZZE12#..UKP..RHD200406

main45250-02480iCDE120,NDE120,ZZE12#..UKP..LHD200406

sub45250-02500

main45250-02490iCDE120,NDE120,ZZE12#..UKP..RHD200406-200510

W(VSC)

main45250-02500iCDE120,NDE120,ZZE12#..UKP..LHD200406

W(VSC)

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02030iCDE120,ZZE12#..UKP..RHD200201-200406

main45259-02040iCDE120,ZZE12#..UKP..LHD200201-200406

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02030iCDE120,ZZE12#..UKP..RHD200201-200404

sub45260-02H00

main45260-02031iCDE120,ZZE12#..UKP..RHD200405-200406

main45260-02040iCDE120,ZZE12#..UKP..LHD200201-200406

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iCDE120,NDE120,ZZE12#..UKP200201-200406

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02050iCDE120,NDE120,ZZE12#..UKP..MTM200201-200406

main45280-02060iZZE121..UKP..4FC200201-200406

45286BCOVER, STEERING COLUMN, UPR

main45286-02180-B0iCDE120,ZZE12#..UKP200201-200211

DK.GRAY,TRIM1#

sub45286-02922

main45286-02181-B0iCDE120,ZZE12#..UKP200211-200406

DK.GRAY,TRIM1#

main45286-02220-B0iCDE120,NDE120,ZZE12#..UKP200406

DK.GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45024-02010-B0iCDE120,ZZE12#..UKP200201-200211

DK.GRAY,TRIM1#

sub45286-02922

main45024-02011-B0iCDE120,ZZE12#..UKP200211-200406

DK.GRAY,TRIM1#

main45287-02170-B0iCDE120,NDE120,ZZE12#..UKP200406

DK.GRAY,TRIM1#

45827KNOB, STEERING TILT LEVER

main45827-02020iCDE120,ZZE12#..UKP200201-200406

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-13020iCDE120,ZZE12#..UKP..RHD..TERRA200201-200406

sub45874-13021

main45874-13060iCDE120,NDE120,ZZE12#..UKP..RHD200406

45897BOLT, STEERING LOCK SET

main45897-12020iCDE120,ZZE12#..UKP200201-200406

8401

9008015066

main90080-15066

9008016074

main90080-16074

9010508410

main90105-08410

9011908560

main90119-08560

9011908C42

main90119-08C42

90119W0020

main90119-W0020

9046706188

main90467-06188

91641C0814

main91641-C0814

91641K0816

main91641-K0816

9331314012

main93313-14012

9356855014

main93568-55014

25 parts on this diagram · 4 diagrams in section
