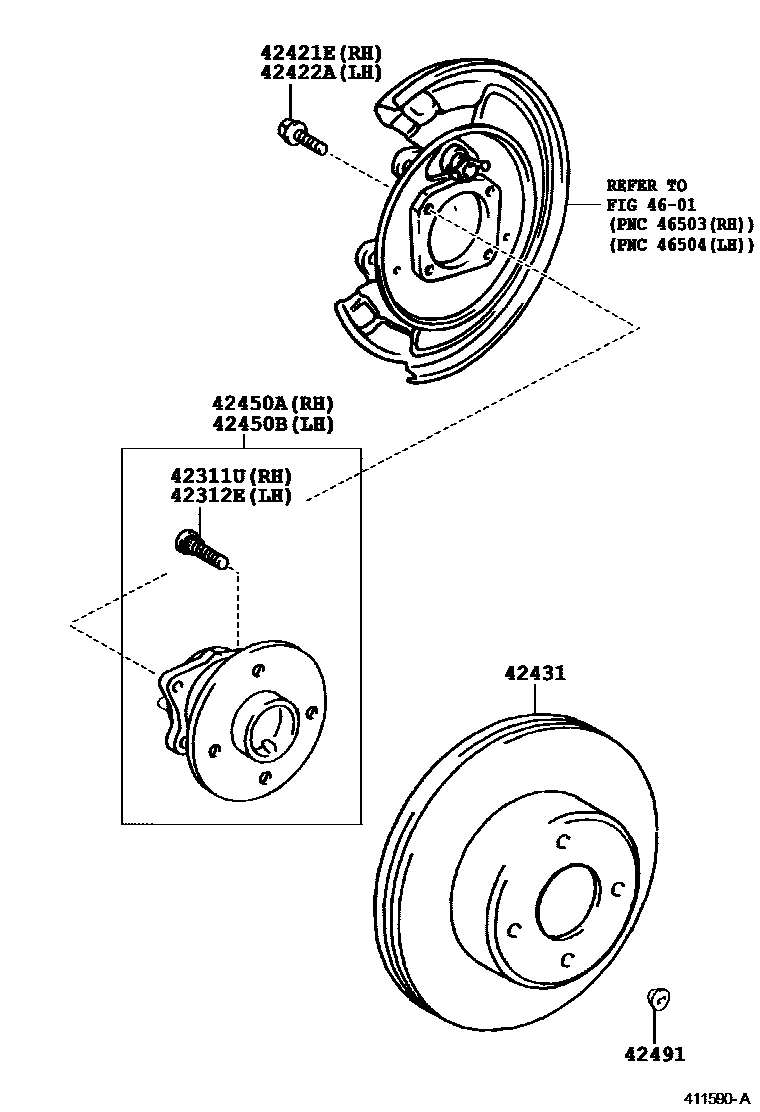

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥240200201-200406

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥240200201-200406

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10470iCDE120,ZZE12#..UKP¥170200201-200206

main90105-10507iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA¥120200206-200406

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10470iCDE120,ZZE12#..UKP¥170200201-200206

main90105-10507iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥120200206-200406

42431DISC, REAR

main42431-02070iZZE12#..UKP¥9,200200201-200702

sub42431-02071¥9,200

main42431-02080iCDE120..UKP..DCR200201-200309

sub42431-02081

main42431-02081iCDE120,NDE120..UKP200309-200702

sub42431-02082

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02060iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥22,500200201-200406

sub42450-12070¥39,500

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02060iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥22,500200201-200406

sub42450-12070¥39,500

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-05010iCDE120,NDE120,ZZE12#..UKP¥140200406

main47491-05010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥140200301-200406

(L)

main47491-22020iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥140200301-200406

(J)

main47491-22020iCDE120,ZZE12#..UKP..(DCR,HTWC)¥140200201-200301

4601

9 parts on this diagram · 1 diagram in section
