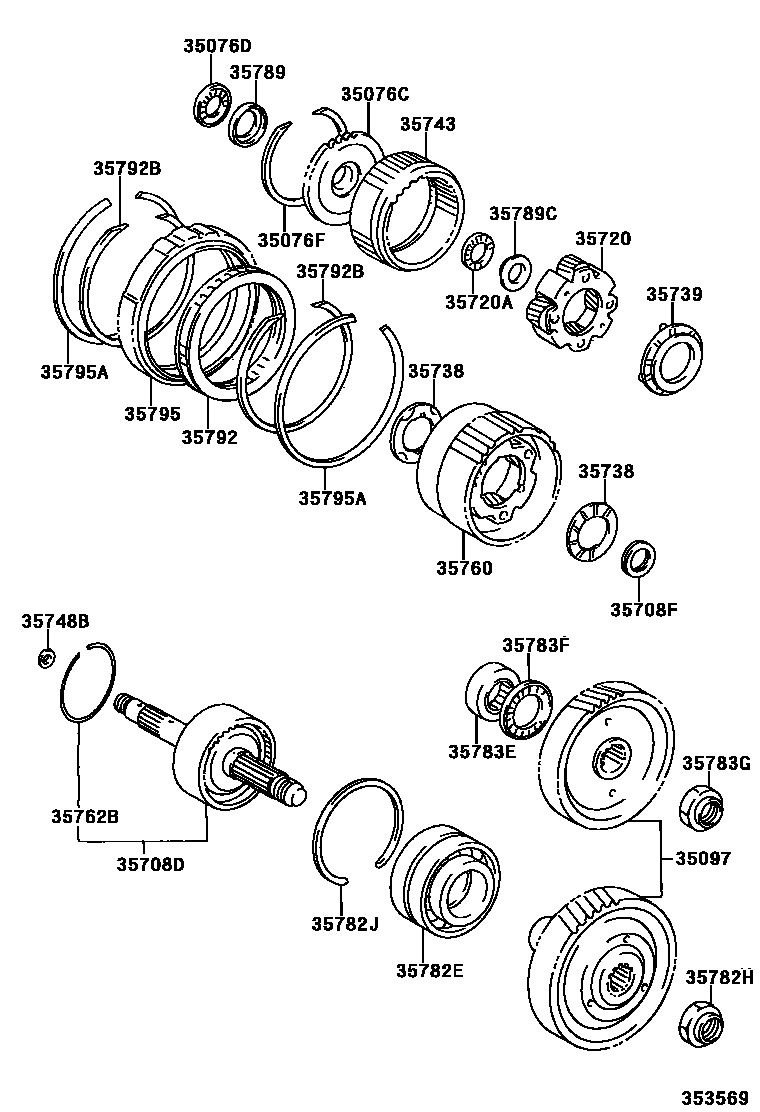

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)
35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)
35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE
35708DSHAFT SUB-ASSY, INTERMEDIATE
35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35748BRING, INTERMEDIATE SHAFT OIL SEAL
35760GEAR ASSY, REAR PLANETARY
35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35782EBEARING(FOR COUNTER DRIVE GEAR)
35782HNUT(FOR COUNTER DRIVE GEAR)
35782JRING, SNAP
35783EBEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR)
35783FBEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR)
35783GNUT(FOR COUNTER DRIVEN GEAR)
35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)
35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35792CLUTCH, 1 WAY, NO.2
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
35795RACE, 1 WAY CLUTCH OUTER
35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)
26 parts on this diagram · 1 diagram in section
