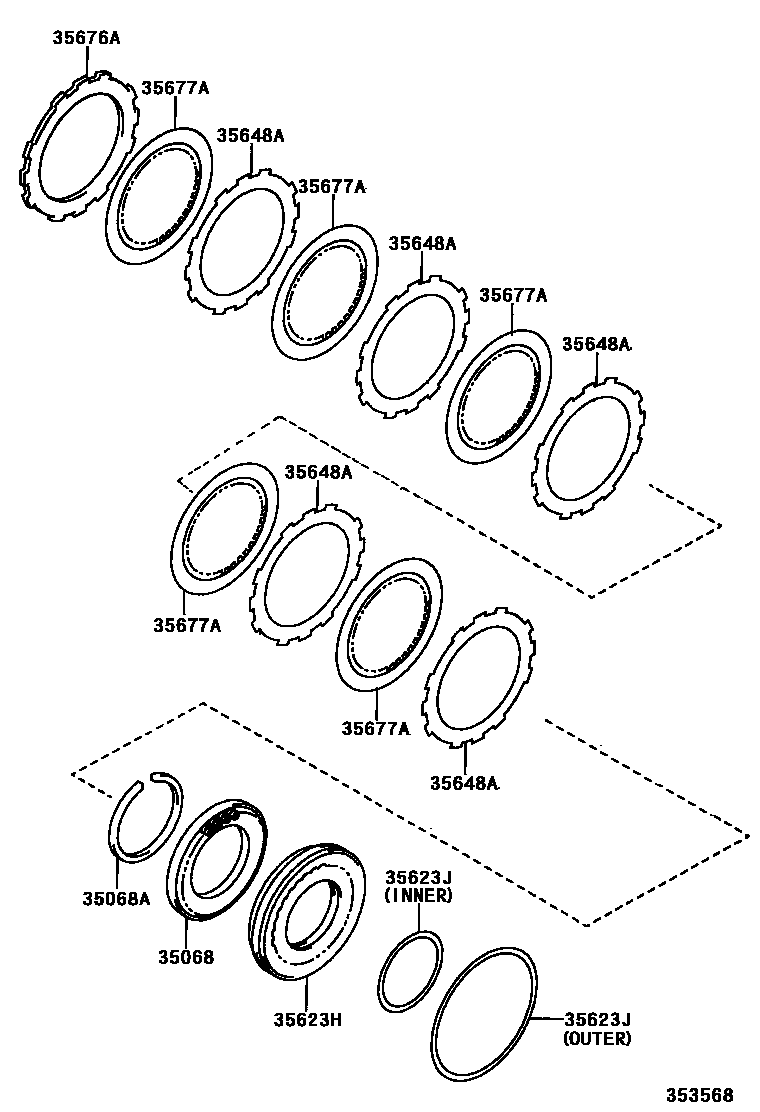

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iZZE121..UKP..4FC¥2,320200201-200406

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iZZE121..UKP..4FC¥230200201-200406

35623HPISTON, 1ST & REVERSE BRAKE

main35623-20020iZZE121..UKP..4FC¥3,820200201-200406

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94004iZZE121..UKP..4FC¥200200201-200406

OUTER

main90301-99131iZZE121..UKP..4FC¥220200201-200406

INNER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020iZZE121..UKP..4FC¥2,170200201-200406

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iZZE121..UKP..4FC¥4,810200201-200406

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12080iZZE121..UKP..4FC¥2,980200201-200406

7 parts on this diagram · 1 diagram in section
