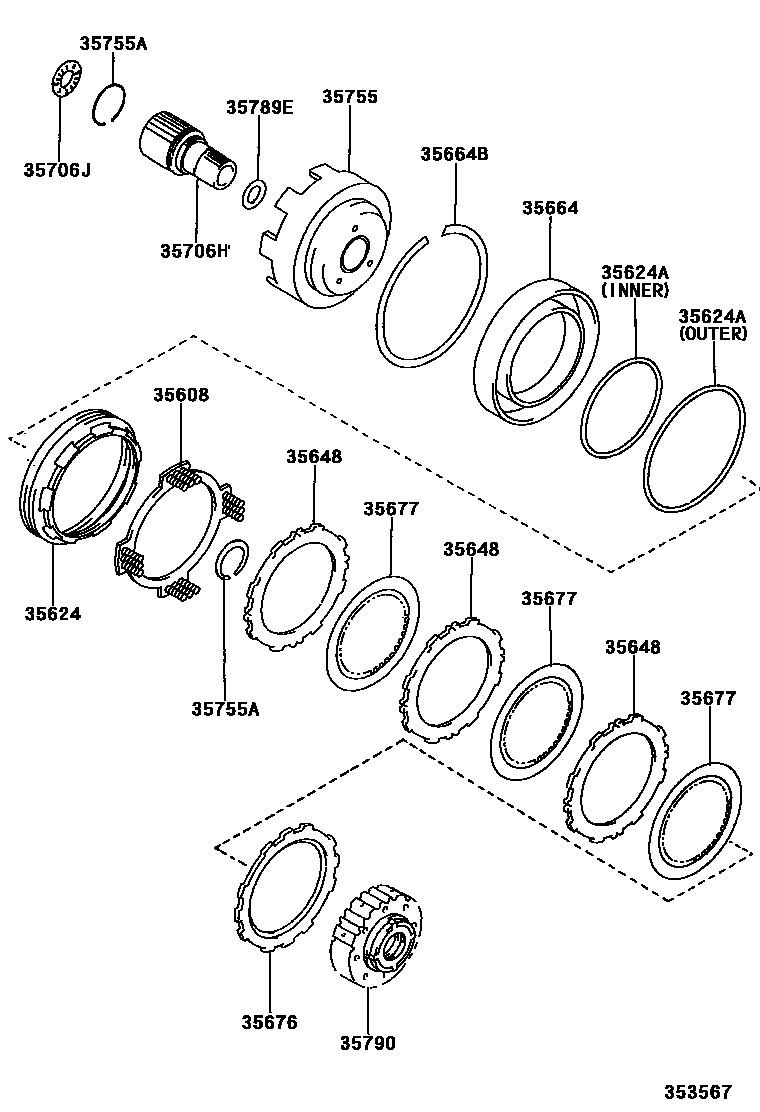

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iZZE121..UKP..4FC¥1,480200201-200406

35624PISTON, 2ND BRAKE

main35624-12020iZZE121..UKP..4FC¥2,690200201-200406

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99100iZZE121..UKP..4FC¥330200201-200406

INNER

main90301-99115iZZE121..UKP..4FC¥200200201-200406

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-12010iZZE121..UKP..4FC¥2,170200201-200406

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-12010iZZE121..UKP..4FC¥2,230200201-200406

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iZZE121..UKP..4FC¥390200201-200406

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12030iZZE121..UKP..4FC¥4,810200201-200406

T=3.5

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-12070iZZE121..UKP..4FC¥3,010200201-200406

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iZZE121..UKP..4FC¥10,400200201-200406

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iZZE121..UKP..4FC¥930200201-200406

35755DRUM, SUN GEAR INPUT

main35755-32020iZZE121..UKP..4FC¥4,760200201-200406

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iZZE121..UKP..4FC¥170200201-200406

T=1.2,ID=44.0

main90520-46010iZZE121..UKP..4FC¥220200201-200406

T=2.3,ID=46.0

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iZZE121..UKP..4FC¥530200201-200406

35790CLUTCH ASSY, 1 WAY

main35790-32050iZZE121..UKP..4FC¥10,800200201-200406

14 parts on this diagram · 1 diagram in section
