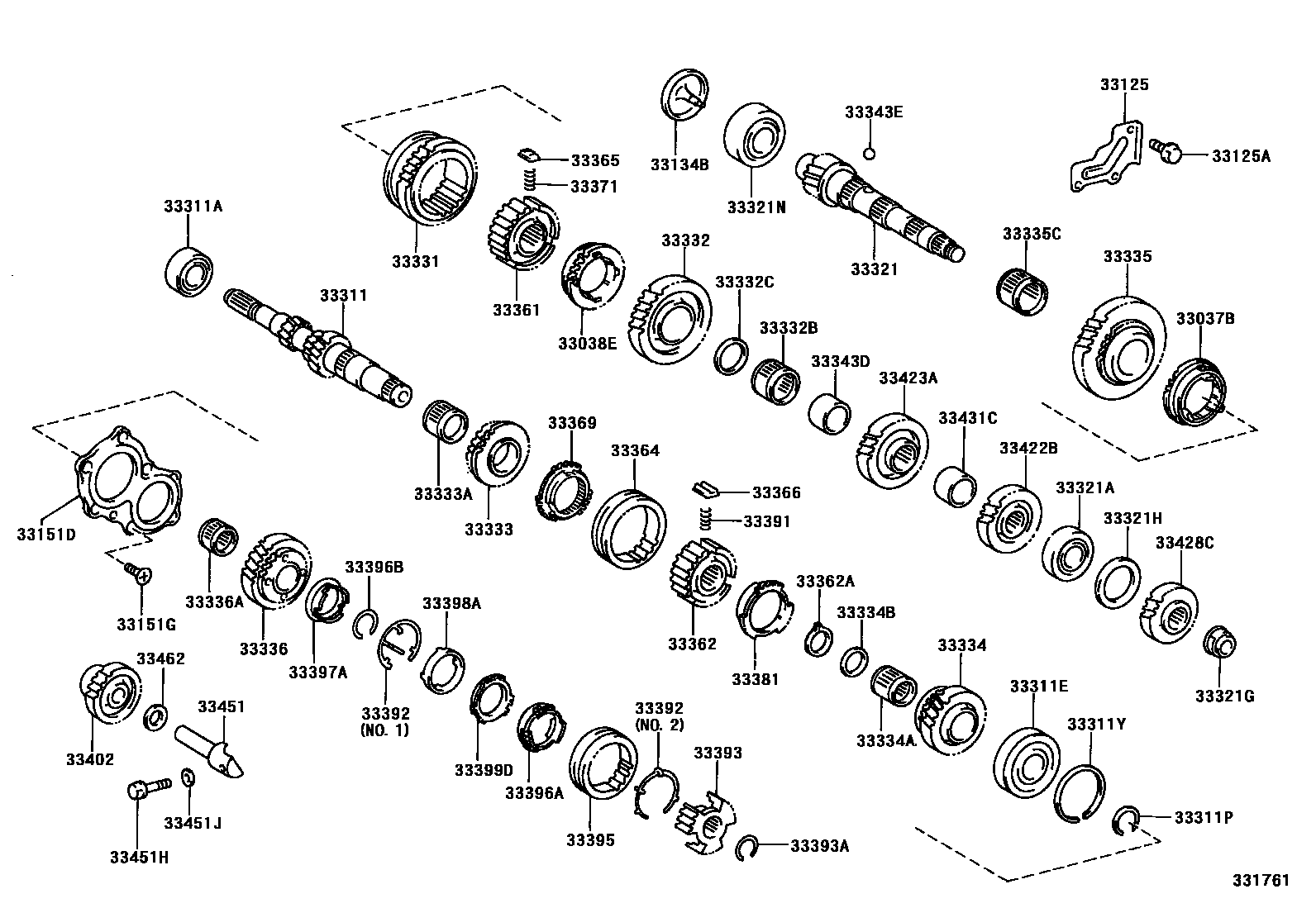

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
33151DRETAINER, BEARING, REAR(MTM)
33151GSCREW(FOR REAR BEARING RETAINER)
33311SHAFT, INPUT
TMMP:REFER TO ILLUSTRATION FIG.33-01,(L)
sub33311-10062
sub33311-20221
sub33311-12171
sub33311-12231
sub33311-20260
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A
T=2.35-2.40,MARK B
T=2.41-2.46,MARK C
T=2.47-2.52,MARK D
T=2.53-2.58,MARK E
T=2.59-2.64,MARK F
T=2.35-2.40,MARK 1
T=2.40-2.45,MARK 2
T=2.45-2.50,MARK 3
T=2.50-2.55,MARK 4
T=2.55-2.60,MARK 5
T=2.60-2.65,MARK 6
T=2.65-2.69,MARK 7
T=2.70-2.74,MARK 8
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.30,MARK 0
T=1.35,MARK 1
T=1.40,MARK 2
T=1.45,MARK 3
T=1.50,MARK 4
T=1.55,MARK 5
T=1.60,MARK 6
T=1.65,MARK 7
T=1.70,MARK 8
T=1.75,MARK 9
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
T=2.15,MARK H
T=2.20,MARK J
T=2.25,MARK K
T=2.30,MARK L
T=2.35,MARK M
T=2.40,MARK N
T=2.45,MARK P
T=2.50,MARK Q
33332GEAR, 2ND
sub33033-12080
sub33033-12090
TMMP:REFER TO ILLUSTRATION FIG.33-01,(L)
(L)
TMMP:REFER TO ILLUSTRATION FIG.33-01,(J)
(J)
sub33332-12140
sub33332-42020
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33332CSPACER (FOR 2ND GEAR BEARING)
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33333GEAR, 3RD
sub33034-10051
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
sub33034-12190
sub33034-12111
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
sub33034-12150
sub33034-20110
sub33034-28031
sub33034-42020
33334BSPACER (FOR 4TH GEAR BEARING)
33343DBUSH, 2ND GEAR
33343EBALL (FOR 2ND GEAR BUSH)
33361HUB, TRANSMISSION CLUTCH, NO.1
sub33361-02020
(J)
TMMP:REFER TO ILLUSTRATION FIG.33-01,(J)
(J)
sub33361-42010
TMMP:REFER TO ILLUSTRATION FIG.33-01,(J)
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=1.85-1.89,MARK 7
T=1.90-1.94,MARK 8
T=2.30-2.35,MARK H
T=2.35-2.40,MARK J
T=2.40-2.45,MARK K
T=2.45-2.50,MARK L
T=2.50-2.55,MARK M
T=2.55-2.60,MARK N
T=2.60-2.65,MARK P
33365KEY, SYNCHROMESH SHIFTING, NO.1
TMMP:REFER TO ILLUSTRATION FIG.33-01
sub33365-52030
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33366KEY, SYNCHROMESH SHIFTING, NO.2
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
sub33366-52030
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
TMMP:REFER TO ILLUSTRATION FIG.33-01
sub33371-52030
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
sub33391-52020
sub33391-52020
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
NO.1
NO.2
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.25-2.30,MARK A
T=2.31-2.36,MARK B
T=2.37-2.42,MARK C
T=2.43-2.48,MARK D
T=2.49-2.54,MARK E
T=2.55-2.60,MARK F
T=2.61-2.66,MARK G
T=1.75-1.80,MARK A
T=1.80-1.85,MARK B
T=1.85-1.90,MARK C
T=1.90-1.95,MARK D
T=1.95-2.00,MARK E
T=2.00-2.05,MARK F
T=2.05-2.10,MARK G
T=2.10-2.15,MARK H
T=2.15-2.20,MARK J
T=1.75-1.85
33395SLEEVE, TRANSMISSION HUB, NO.3
sub33395-20041
(J)
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01,(J)
sub33395-42012
sub33395-42012
33396ARING, SYNCHRONIZER PULL
33396BRING, SNAP (FOR SYNCHRONIZER PULL RING)
33397ARING, SYNCHRONIZER, INNER NO.5
33398ARING, SYNCHRONIZER, MIDDLE NO.5
33399DRING, SYNCHRONIZER, OUTER NO.5
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
TMMP:REFER TO ILLUSTRATION FIG.33-01,(J)
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
(J)
sub33451-20070
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
60 parts on this diagram · 3 diagrams in section
