31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077i200201-200406

*10-1.25PX43-26,(J)

main90105-W0062i200406

*10-1.25PX43-26

main90105-W0062i200304-200406

*10-1.25PX43-26,(L)

main90119-12168i200201-200406

*12-1.25PX55-30,(J)

main90119-W0040i200306-200401

*12-1.25PX55-30,(L)

sub91619-61255

main90119-W0049i200306-200406

*10-1.25PX55-30,(L)

sub91642-81055

main90119-W0049i200406

*10-1.25PX55-30

sub91642-81055

main90119-W0080i200406

*12-1.25PX55-30

main90119-W0080i200304-200406

*12-1.25PX55-30,(L)

main91612-61045i200512

*10-1.25PX45-30

main91612-61050i200408-200511

*10-1.25PX50-30

main91619-61255i200201-200406

*12-1.25PX55-30,(J)

main91642-81055i200201-200406

*10-1.25PX55-30,(J)

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086i200201-200409

*8-1.25PX45-27.5

main90105-08086i200406-200408

*8-1.25PX45-27.5,TMMP:REFER TO ILLUSTRATION FIG.33-01

main90105-08086i200408-200607

*8-1.25PX45-27.5,NO.2

main90105-08126i200201-200406

*8-1.25PX45-27.5

main90105-08353i200201-200406

*8-1.25PX50-30

main90105-08353i200408

*8-1.25PX50-30,NO.1

main90105-08430i200407

*8-1.25PX45-27.5

main90105-08430i200607

*8-1.25PX45-27.5,NO.2

main90105-08430i200406-200408

*8-1.25PX45-27.5,TOYOTA:REFER TO ILLUSTRATION FIG.33-01

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006i200201-200508

main90341-18033i200201-200406

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i200201-200505

main90430-18008i200406-200511

TMMP:REFER TO ILLUSTRATION FIG.33-01

main90430-18008i200406

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

main90430-W0001i200505

TMMP:REFER TO ILLUSTRATION FIG.33-01

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03148i200201-200406

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008i200201-200406

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-0D010i200408

sub33102-12021

main33102-0D010i200406

TMMP:REFER TO ILLUSTRATION FIG.33-01

sub33102-12021

main33102-10023i200201-200406

main33102-10023i200406

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

main33102-12021i200201-200406

main33102-12021i200406

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

main33102-12041i200201-200306

sub33102-12042

main33102-12042i200306-200406

sub33102-12043

main33102-12043i200406

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i200201-200508

main90341-18006i200607

TMMP:REFER TO ILLUSTRATION FIG.33-01

main90341-18033i200505

main90341-18033i200508

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

main90341-18033i200508-200607

TMMP:REFER TO ILLUSTRATION FIG.33-01

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i200201-200505

main90430-18008i200406-200505

TMMP:REFER TO ILLUSTRATION FIG.33-01

main90430-18008i200406

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

main90430-W0001i200505

TMMP:REFER TO ILLUSTRATION FIG.33-01

33111CASE, MANUAL TRANSMISSION

main33101-20090i200301-200406

main33101-28041i200201-200301

sub33101-20090

sub33250-12180

main33111-05010i200408-200601

sub33111-05020

main33111-05010i200511-200601

TMMP:REFER TO ILLUSTRATION FIG.33-01

sub33111-05020

main33111-05020i200601-200702

TMMP:REFER TO ILLUSTRATION FIG.33-01

sub33111-05021

sub33295-52010

sub90201-08049

main33111-05021i200702

TMMP:REFER TO ILLUSTRATION FIG.33-01

sub33111-12300

sub33102-12021

sub90253-11001

main33111-0D020i200406

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

sub33111-16053

main33111-16053i200201-200406

TMMP:REFER TO ILLUSTRATION FIG.33-01

main33111-16063i200201-200406

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

sub33111-16064

sub90101-08166

sub90201-08049

main33111-17101i200406-200501

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

sub33111-17102

sub90101-08166

sub90201-08049

sub90389-15009

main33111-17102i200501

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

sub33111-12280

main33111-64010i200408-200503

sub33111-64011

main33111-64011i200503

33111APLUG, MANUAL TRANSMISSION CASE

main90341-12004i200201-200406

main90341-18006i200408

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054i200201-200406

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34028i200201-200406

sub90311-34034

main90311-34028i200406

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

sub90311-34034

main90311-34028i200406-200505

TMMP:REFER TO ILLUSTRATION FIG.33-01

sub90311-34034

main90311-35044i200408-200508

sub90311-35058

main90311-35058i200508

sub90311-35064

main90311-50024i200201-200509

sub90311-50035

main90311-50035i200509

sub90311-50047

main90311-W0004i200505

TMMP:REFER TO ILLUSTRATION FIG.33-01

sub90311-W0016

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-17020i200408

main33117-20020i200201-200406

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-W0036i200408

main90105-W0036i200304-200406

(L)

main91641-H0820i200201-200406

(J)

main91641-H0820i200406-200408

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08373i200406

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

main90119-08373i200201-200406

main90119-08429i200505

main90119-08630i200201-200406

main90119-08782i200603

TMMP:REFER TO ILLUSTRATION FIG.33-01

main91611-60835i200406-200603

TMMP:REFER TO ILLUSTRATION FIG.33-01

main91611-60835i200201-200505

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012i200201-200406

main33124-20050i200201-200406

main33124-28050i200201-200406

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021i200201-200406

main33124-12021i200201-200406

main33124-28060i200201-200406

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830i200201-200406

main91611-G0820i200201-200406

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230i200201-200406

main33403-35230i200201-200406

33403LRING, O

main96711-24018i200201-200406

main96711-24030i200201-200406

4301

8401

90119W0032

main90119-W0032

9161160628

main91611-60628

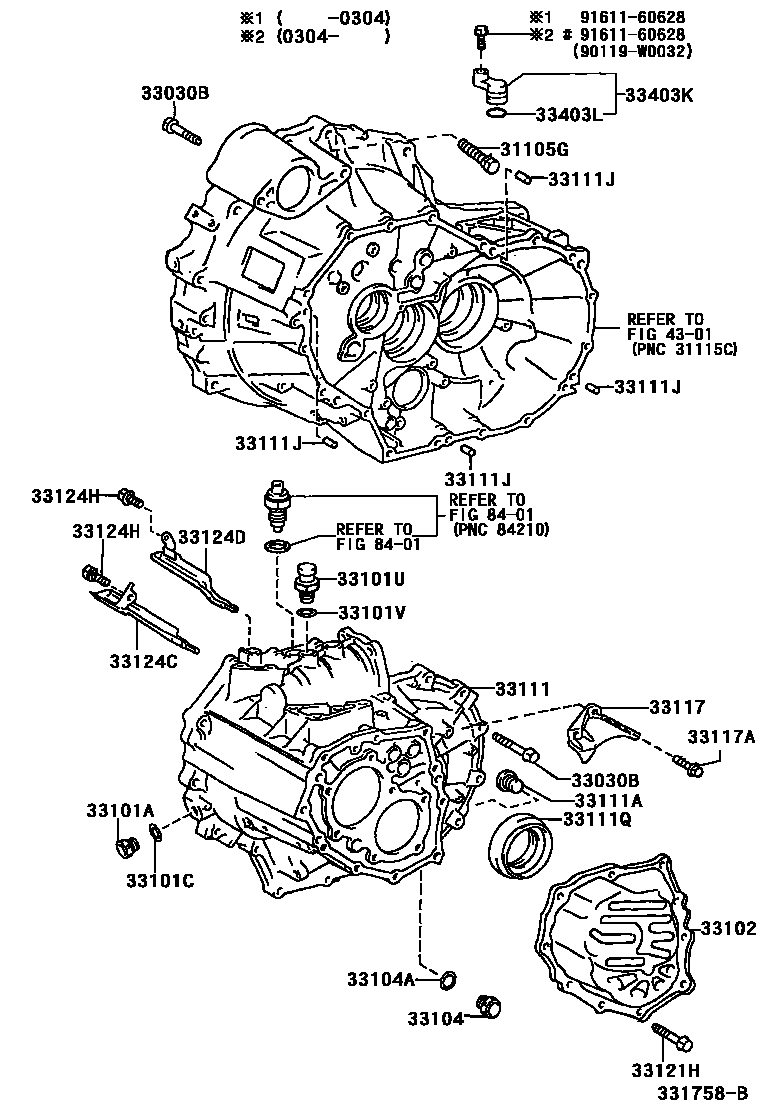

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
