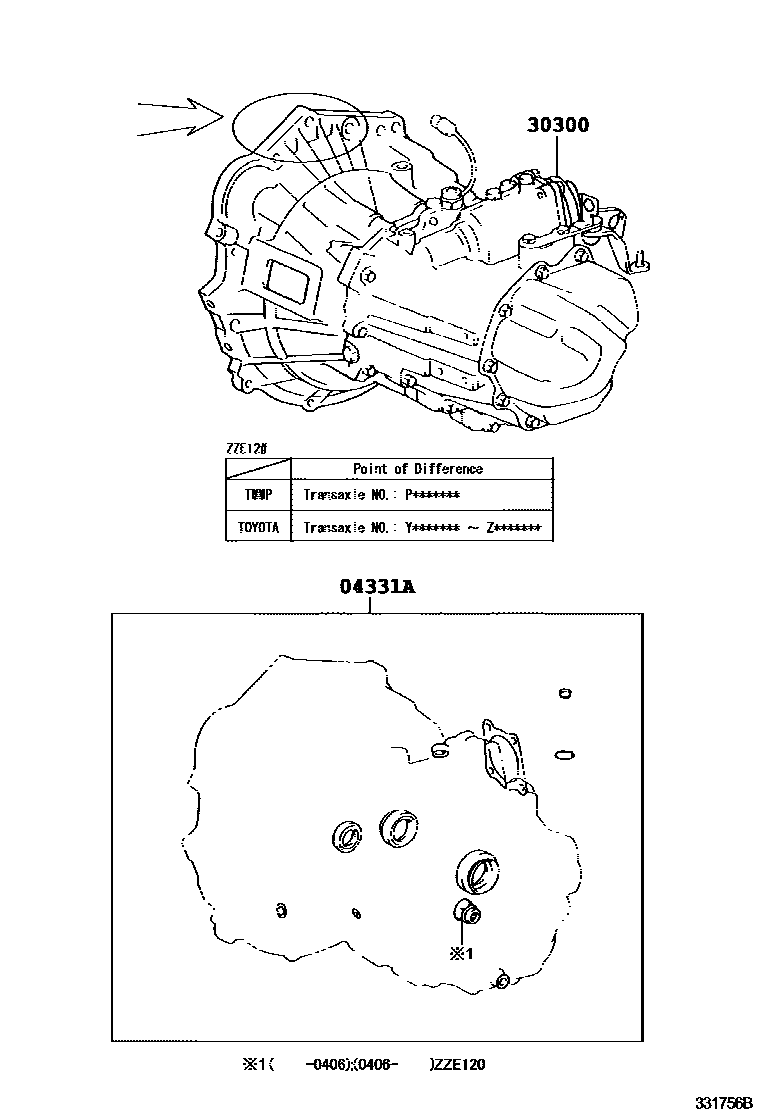

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C50,C53,C53A,C150 0002 1E351,E357

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-02020iZZE121..UKP..5F200406-200407

sub04331-02040

main04331-02060iZZE121..UKP..5F200407-200410

main04331-05020iNDE120..UKP..5F200505-200508

sub04331-05120

main04331-05040iZZE121..UKP..5F200505-200507

sub04331-05130

main04331-05120iNDE120..UKP..5F200508-200702

sub04331-05101

main04331-05130iZZE121..UKP..5F200508-200602

sub04331-05190

main04331-05200iZZE121..UKP..5F200602-200702

sub04331-05190

main04331-0D020iZZE120..UKP200406-200507

sub04331-0D060

main04331-0D060iZZE120..UKP200508-200702

sub04331-0D061

main04331-12171iNDE120..UKP..5FS200408-200702

sub04331-12172

main04331-12500iZZE121..UKP..5F200410-200505

sub04331-02060

main04331-13010iZZE12#..UKP..5F200201-200406

main04331-17040iNDE120..UKP..5F200408-200505

sub04331-12270

main04331-28020iCDE120..UKP200201-200406

sub04331-64011

main04331-64010iCDE120..UKP200406-200509

sub04331-64011

main04331-64011iCDE120..UKP200509-200702

30300TRANSAXLE ASSY, MANUAL

main30300-02050iZZE120..UKP200406

C150,TMMP:REFER TO ILLUSTRATION

sub30300-12A22

main30300-02060iZZE121..UKP..5F200406

C50,TMMP:REFER TO ILLUSTRATION

sub30300-12A31

main30300-02080iNDE120..UKP..5F200408

C53

sub30300-12A02

main30300-12A20iZZE120..UKP200406-200409

C150,TOYOTA:REFER TO ILLUSTRATION

sub30300-12A21

main30300-12A21iZZE120..UKP200409

C150,TOYOTA:REFER TO ILLUSTRATION

sub30300-12A22

main30300-12A30iZZE121..UKP..5F200406

C50,TOYOTA:REFER TO ILLUSTRATION

sub30300-12A31

main30300-1E030iCDE120..UKP200201-200406

E351,COLD SPEC

sub30300-1E031

main30300-1E060iZZE121..UKP..5F200201-200406

C50

sub30300-1E061

main30300-1E110iZZE120..UKP200201-200406

C150

sub30300-1E111

main30300-1E140iCDE120..UKP..LHD200201-200406

E351

main30300-2D110iCDE120..UKP200406

E357

main30340-12010iNDE120..UKP..5FS200408

C53A

2 parts on this diagram · 2 diagrams in section
