PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-64010iNDE120..UKP..5FS200408-200506

sub33960-64011

main33960-64011iNDE120..UKP..5FS200506-200602

sub33960-64012

main33960-64012iNDE120..UKP..5FS200602

sub33960-64020

33960BBREATHER PLUG, SHIFT & SELECT ACTUATOR

main90930-03133iNDE120..UKP..5FS200408

89457BSTROKE SENSOR, SHIFT

main89457-52010iNDE120..UKP..5FS200408

89457CSTROKE SENSOR, SELECT

main89457-52010iNDE120..UKP..5FS200408

9011908429

main90119-08429

9025311001

main90253-11001

9030137010

main90301-37010

9331514014

main93315-14014

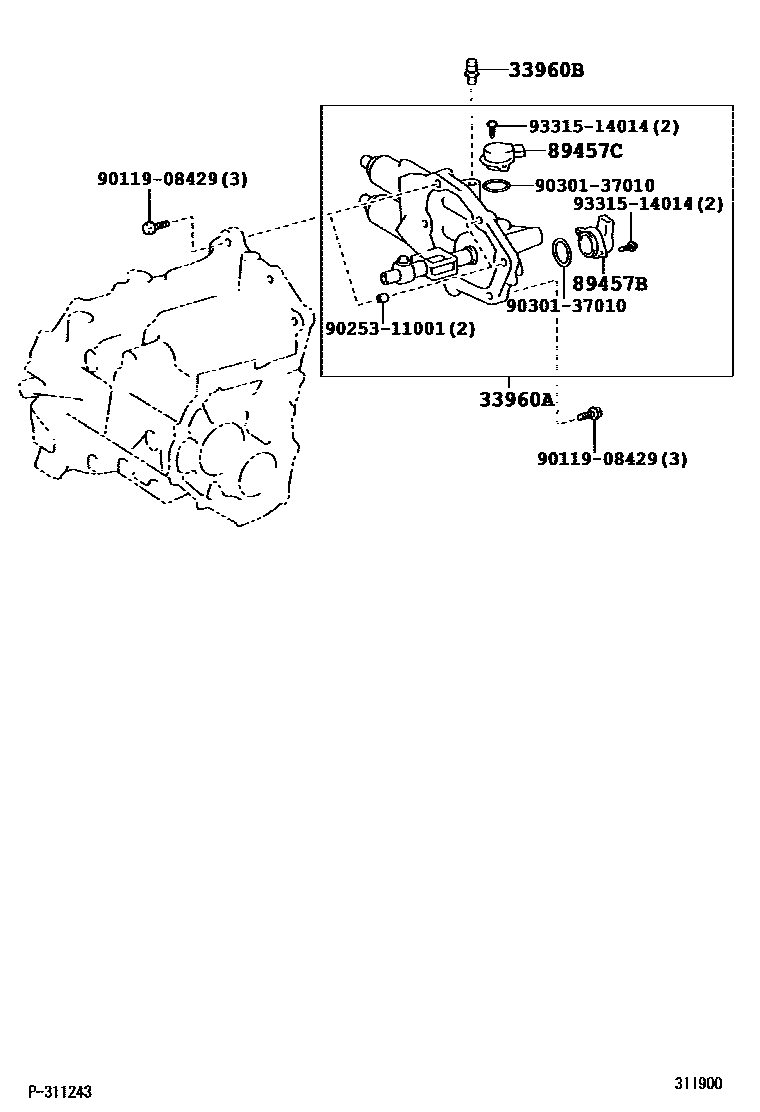

8 parts on this diagram · 1 diagram in section
