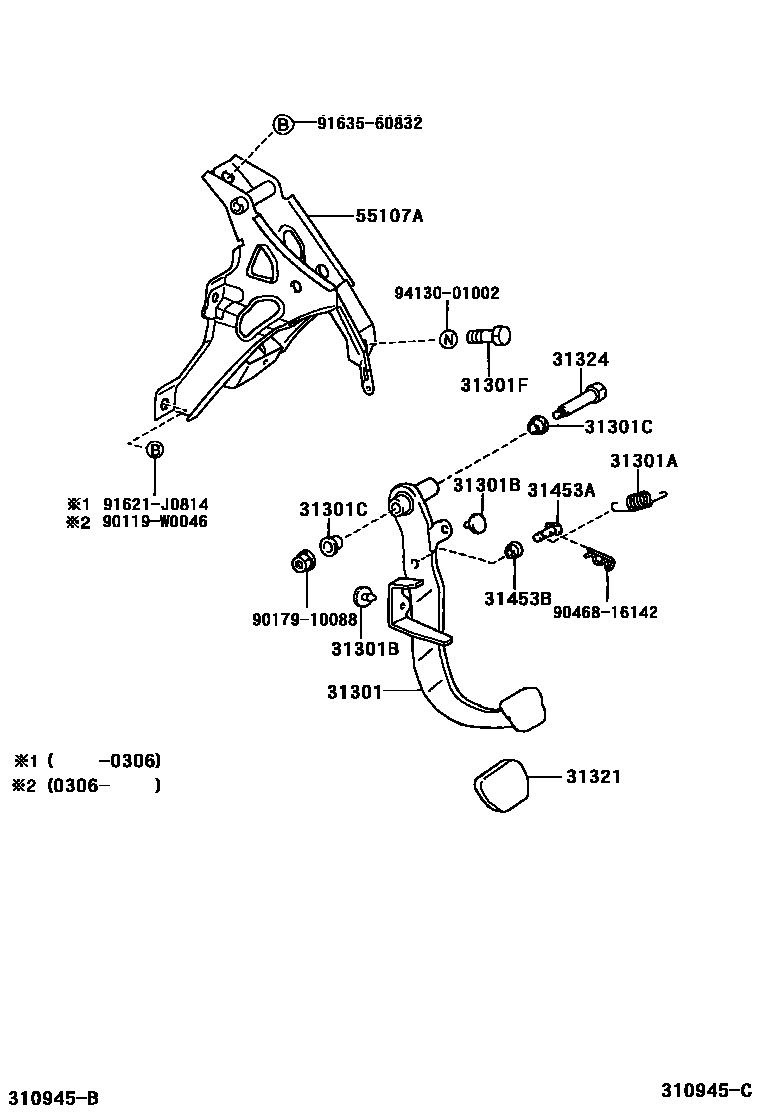

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02040iCDE120..UKP..LHD200201-200406

main31301-02080iCDE120..UKP..RHD200201-200406

main31301-02110iZZE12#..UKP..RHD200201-200406

main31301-02120iZZE12#..UKP..LHD..5F200201-200406

main31301-02180iCDE120..UKP..RHD200406-200504

main31301-02190iCDE120..UKP..LHD200406-200504

main31301-02200iZZE121..UKP..5F..SOL200406

W(CRUISE CONTROL)

main31301-05050iNDE120..UKP..RHD200408

main31301-05060iNDE120..UKP..LHD..5F¥2,500200408

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZZE12#..UKP..LHD..5F¥100200201-200406

main90507-14050iZZE12#..UKP..RHD¥140200201-200406

main90507-17004iCDE120..UKP..LHD200406-200504

main90507-19005iCDE120..UKP..RHD200406-200504

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iCDE120..UKP..LHD¥110200201-200504

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iCDE120..UKP¥120200201-200504

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNDE120,ZZE12#..UKP..5F¥110200201-200504

31321PAD, CLUTCH PEDAL

main31321-52010iCDE120..UKP¥200200201-200504

31324SHAFT, CLUTCH PEDAL

main90109-10167iCDE120,ZZE12#..UKP..5F¥190200201-200504

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iCDE120,ZZE12#..UKP..5F¥230200201-200406

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCDE120,ZZE12#..UKP..5F¥240200201-200504

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02060iCDE120..UKP..RHD200201-200406

main55107-02080iCDE120..UKP..LHD200201-200406

main55107-02090iZZE12#..UKP..RHD200306-200406

main55107-02110iZZE12#..UKP..LHD..5F200306-200406

main55107-02140iZZE121..UKP..5F..SOL200406

W(CRUISE CONTROL)

main55107-05070iCDE120,NDE120..UKP..RHD200406

main55107-05080iCDE120,NDE120..UKP..LHD..5F200406

90119W0046

main90119-W0046¥130

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

91621J0814

main91621-J0814¥60

9163560832

main91635-60832¥80

9413001002

main94130-01002¥90

16 parts on this diagram · 13 diagrams in section
