CLUTCH & RELEASE FORK
31210COVER ASSY, CLUTCH
sub31210-05015
sub31210-05016
sub31210-05051
sub31210-12241
sub31210-12242
sub31210-12251
sub31210-12290
sub31210-12291
31230BEARING ASSY, CLUTCH RELEASE
sub31230-12181
sub31230-17011
sub31230-17012
sub31230-52011

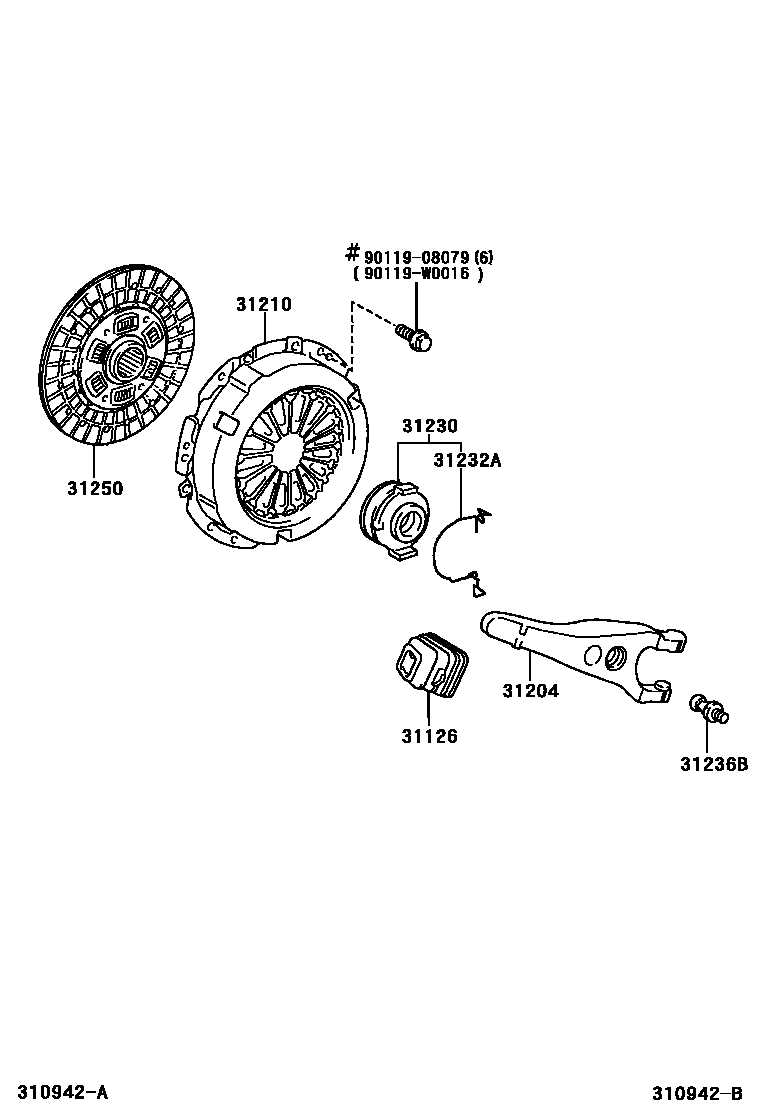

TOYOTA:REFER TO ILLUSTRATION FIG.33-01
31232ACLIP, RELEASE BEARING HUB
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
sub31250-0D060
sub31250-0D060
sub31250-05100
sub31250-05101
sub31250-12411
sub31250-52110
9011908079
main90119-08079
90119W0016
main90119-W0016
9 parts on this diagram · 6 diagrams in section
