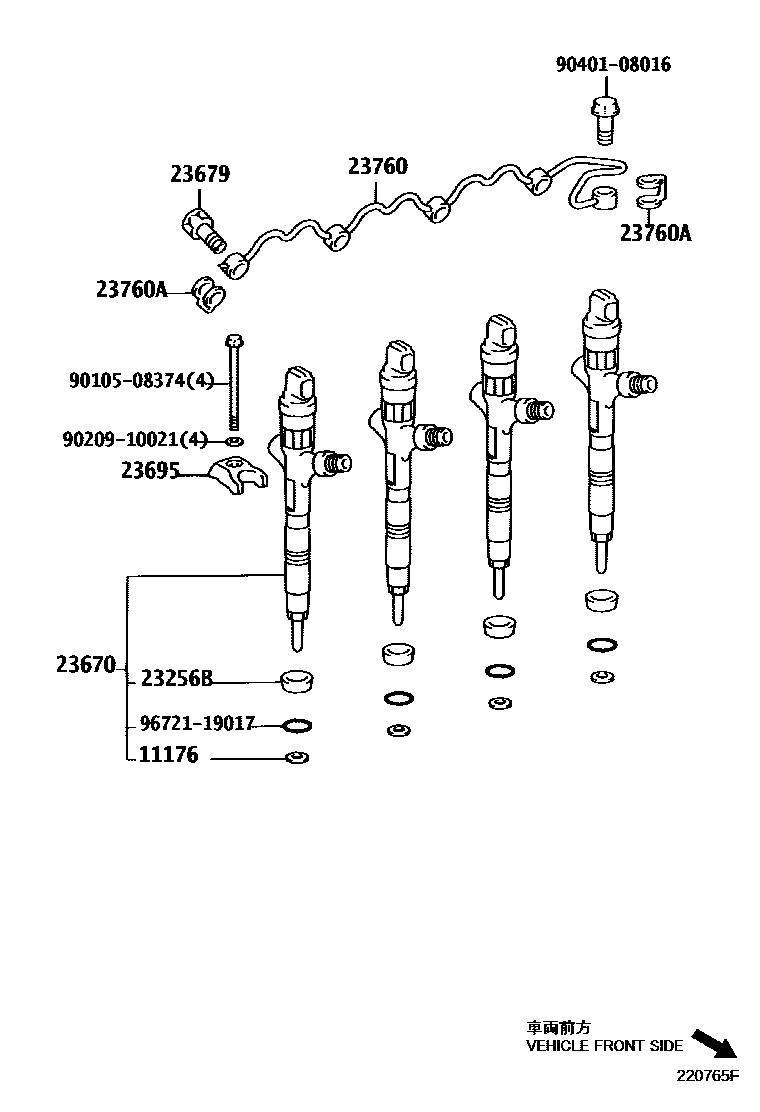

INJECTION NOZZLE

0001 1 0002 1

11176SEAT, INJECTION NOZZLE

main11176-27010i1CDFTV..CDE120..UKP200201-200406

sub11176-27011

main11176-33010i1NDTV..NDE120..UKP200408

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-27010i1CDFTV..CDE120..UKP200201-200406

main23256-27020i1CDFTV..CDE120..UKP200406

23670INJECTOR ASSY

main23670-09030i1CDFTV..CDE120..UKP200406

sub23670-09031

main23670-29025i1CDFTV..CDE120..UKP..DCR200201-200406

sub23670-29026

main23670-39105-A0i1NDTV..NDE120..UKP200408

MARK A

main23670-39105-B0i1NDTV..NDE120..UKP200408

MARK B

main23670-39105-C0i1NDTV..NDE120..UKP200408

MARK C

23679SCREW, INJECTOR FOLLOW

main23679-0G010i1CDFTV..CDE120..UKP200406-200512

sub23679-0R010

main23679-27020i1CDFTV..CDE120..UKP200201-200406

main23679-30020i1CDFTV..CDE120..UKP200512

sub23679-30021

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-27010i1CDFTV..CDE120..UKP200201-200210

sub23695-27020

main23695-27020i1CDFTV..CDE120..UKP200210-200406

main23695-33010i1NDTV..NDE120..UKP200408

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-33020i1NDTV..NDE120..UKP200408

main23761-27010i1CDFTV..CDE120..UKP200201-200406

23760AGASKET

main90904-30008i1CDFTV..CDE120..UKP200201-200406

9010508374

main90105-08374

9020910021

main90209-10021

9040108016

main90401-08016

9672119017

main96721-19017

11 parts on this diagram · 2 diagrams in section
