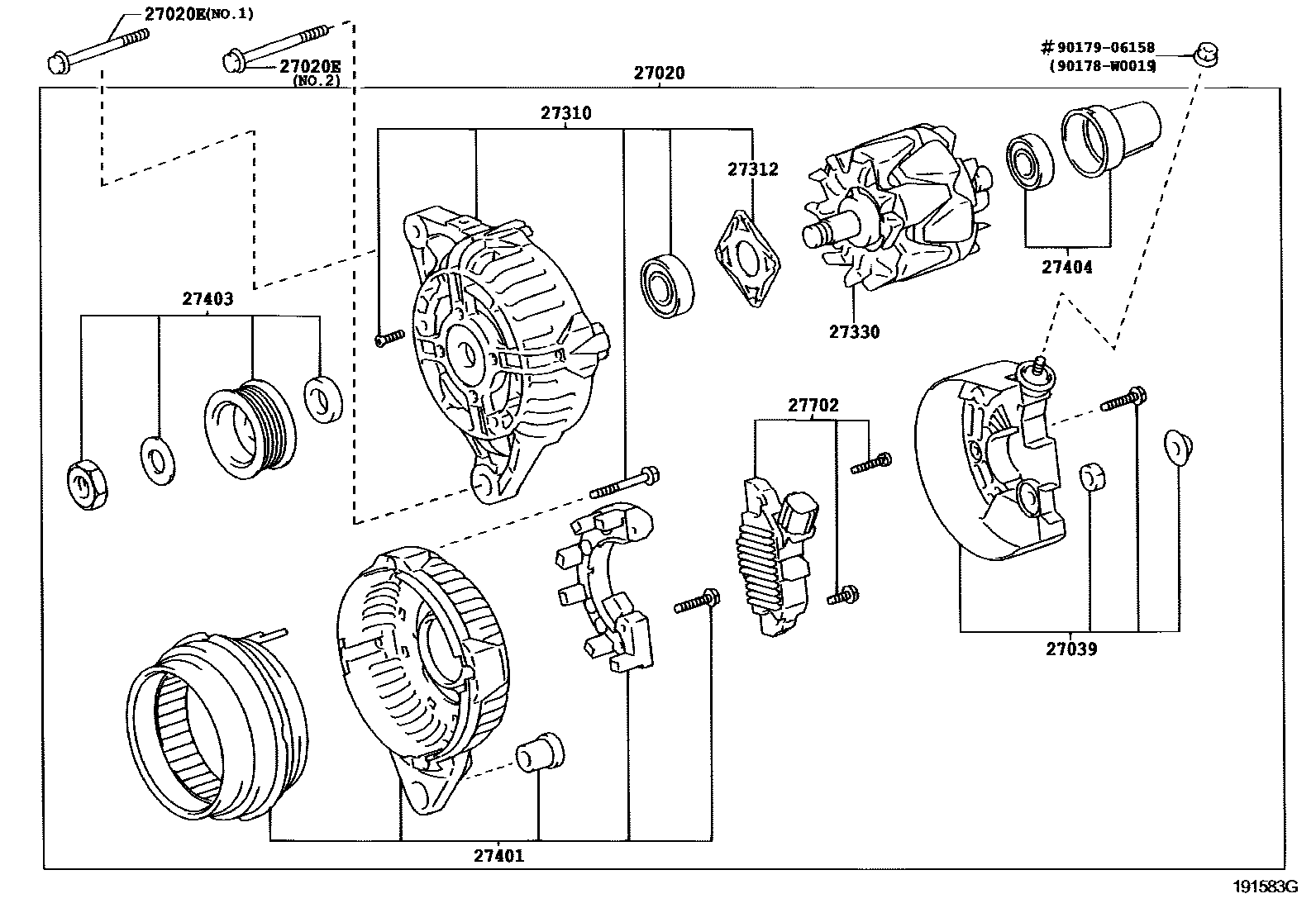

ALTERNATOR

0001 114V 80A 0002 112V 90A,130A 0003 112V 90A 0004 112V 100A 0005 112V 100A

27020ALTERNATOR ASSY

main27060-0D030i3ZZFE,4ZZFE..ZZE12#..UKP200201-200406

12V 80A

main27060-0D140i3ZZFE,4ZZFE..ZZE12#..UKP200406-200702

12V 90A

main27060-27060i1CDFTV..CDE120..UKP..LHD200201-200406

12V 90A

main27060-27070i1CDFTV..CDE120..UKP200201-200406

12V 130A

main27060-27090i1CDFTV..CDE120..UKP200406-200702

12V 100A

sub27060-27070

main27060-33071i1NDTV..NDE120..UKP200408-200702

12V 100A

sub27060-33072

27020EBOLT(FOR ALTERNATOR)

main90105-10075i3ZZFE,4ZZFE..ZZE12#..UKP200208-200604

NO.2

main90105-10520i1NDTV..NDE120..UKP200408

main90901-05004i1CDFTV..CDE120..UKP200201-200406

main91511-80830i3ZZFE..ZZE121..UKP200208-200604

NO.1

27039COVER, ALTERNATOR REAR END

main27039-0D030i3ZZFE,4ZZFE..ZZE12#..UKP200201-200702

main27039-21100i1CDFTV..CDE120..UKP..LHD200201-200406

main27039-27060i1CDFTV,1NDTV..CDE120,NDE120..UKP200406-200702

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0D020i3ZZFE,4ZZFE..ZZE12#..UKP200201-200702

main27310-27050i1CDFTV..CDE120..UKP200406-200702

main27310-33110i1NDTV..NDE120..UKP200408-200702

27312PLATE, RETAINER

main27312-72100i1CDFTV,1NDTV..CDE120,NDE120..UKP200406-200702

27330ROTOR ASSY, ALTERNATOR

main27330-0D020i3ZZFE,4ZZFE..ZZE12#..UKP200201-200406

main27330-0D110i3ZZFE,4ZZFE..ZZE12#..UKP200406-200702

main27330-20130i1CDFTV..CDE120..UKP200201-200406

12V 130A

sub27330-33090

main27330-30070i1CDFTV,1NDTV..CDE120,NDE120..UKP200406-200702

main27330-74550i1CDFTV..CDE120..UKP..LHD200201-200406

12V 90A

27401STATOR SUB-ASSY ALTERNATOR W/RECTIFIER

main27401-0D010i3ZZFE,4ZZFE..ZZE12#..UKP200201-200702

27403PULLEY SET, ALTERNATOR

main27403-0D010i3ZZFE,4ZZFE..ZZE12#..UKP200201-200702

27404BEARING SET, ALTERNATOR

main27404-0D010i3ZZFE,4ZZFE..ZZE12#..UKP200201-200702

27702REGULATOR SUB-ASSY GENERATOR W/BRUSH

main27702-0D010i3ZZFE,4ZZFE..ZZE12#..UKP200201-200702

90178W0019

main90178-W0019

9017906158

main90179-06158

12 parts on this diagram · 5 diagrams in section
