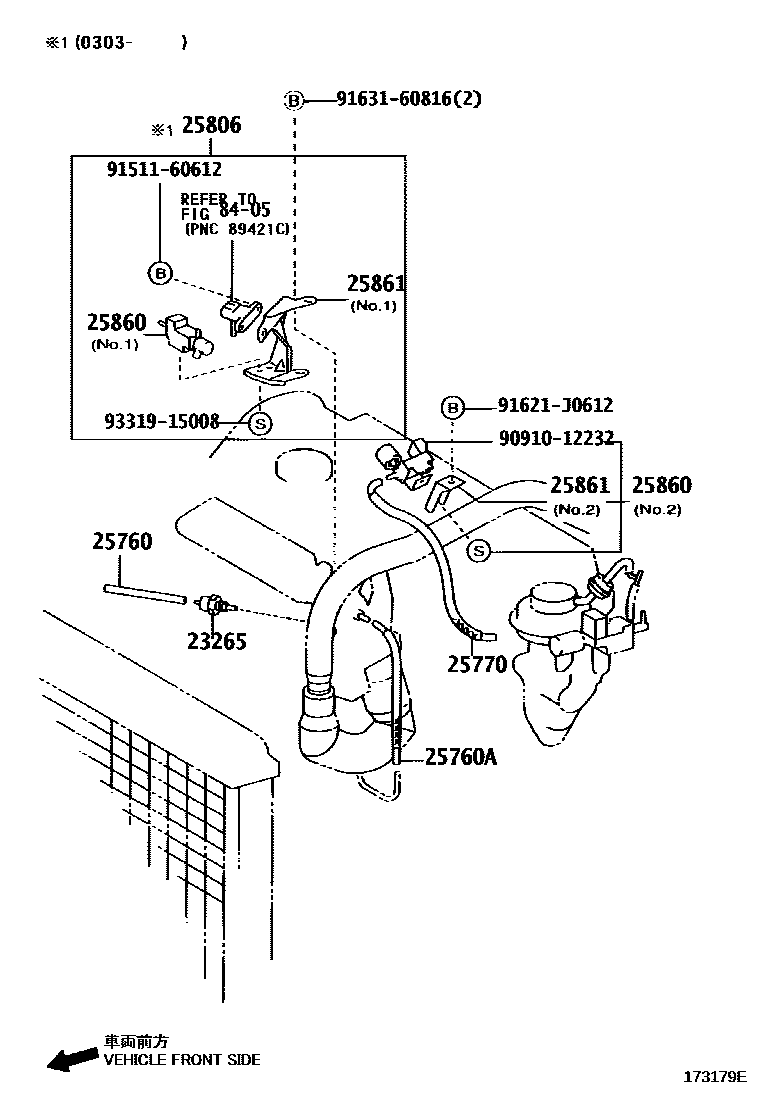

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

23265FILTER, GAS, NO.1

main90917-11037i1CDFTV..CDE120..UKP200201-200406

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-27050i1CDFTV..CDE120..UKP200201-200406

main25760-27090i1CDFTV..CDE120..UKP200406

main25760-33040i1NDTV..NDE120..UKP200408

25760AHOSE ASSY, VACUUM TRANSMITTING

main25760-27040i1CDFTV..CDE120..UKP200201-200406

main25760-27100i1CDFTV..CDE120..UKP200406

25770HOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-27030i1CDFTV..CDE120..UKP200201-200406

main25770-27050i1CDFTV..CDE120..UKP200406

25806VALVE SET, PRESSURE CONTROL

main25806-27020i1CDFTV..CDE120..UKP200303-200406

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0D040i3ZZFE,4ZZFE..ZZE12#..UKP200406

main25860-27020i1CDFTV..CDE120..UKP200201-200406

NO.2

main25860-64140i1CDFTV..CDE120..UKP200303-200406

NO.1

25861BRACKET, VACUUM SWITCHING VALVE

main25861-27020i1CDFTV..CDE120..UKP200303-200406

NO.1

main25861-27030i1CDFTV..CDE120..UKP200201-200406

NO.2

8405

9091012232

main90910-12232

9151160612

main91511-60612

91621J0612

main91621-J0612

9163160816

main91631-60816

9331915008

main93319-15008

13 parts on this diagram · 5 diagrams in section
