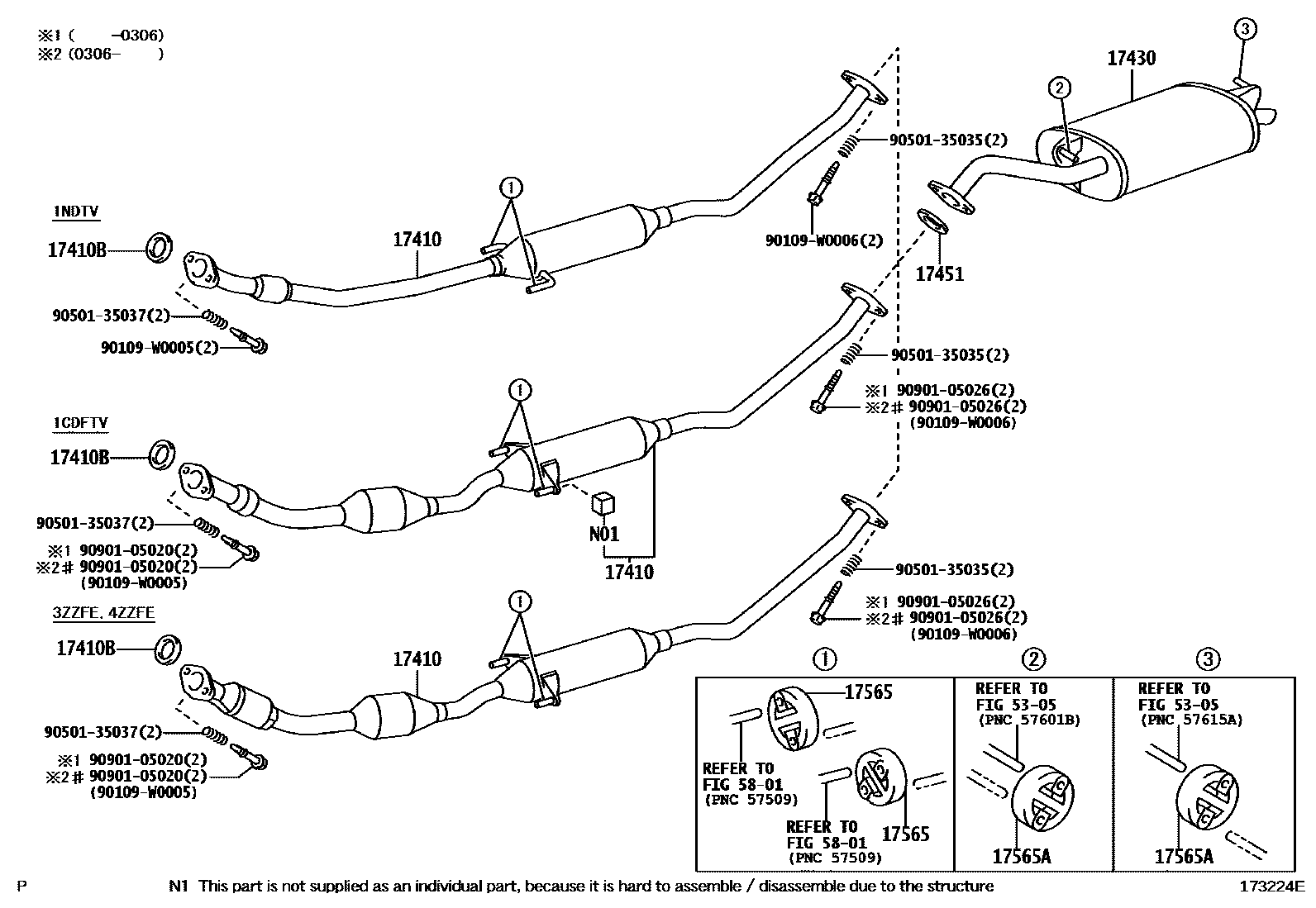

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D140i3ZZFE,4ZZFE..ZZE12#..UKP200201-200406

*114=*687

main17410-0D330i3ZZFE,4ZZFE..ZZE12#..UKP200406

*114=TOYOTA/GA7GB7/Y

main17410-0G030i1CDFTV..CDE120..UKP200201-200406

main17410-0G101i1CDFTV..CDE120..UKP200406

*114=TOYOTA/AB1AB2/Y

main17410-0N030i1NDTV..NDE120..UKP200408

17410BGASKET, EXHAUST PIPE

main17451-0D090i3ZZFE,4ZZFE..ZZE12#..UKP200201-200406

main17451-0G010i1CDFTV..CDE120..UKP200201-200406

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D170i3ZZFE,4ZZFE..ZZE12#..UKP200201-200406

main17430-0D330i3ZZFE,4ZZFE..ZZE12#..UKP200406

main17430-0G040i1CDFTV..CDE120..UKP200201-200406

main17430-0N020i1CDFTV..CDE120..UKP200406

17451GASKET, EXHAUST PIPE

main17451-02030i1NDTV,3ZZFE,4ZZFE..NDE120,ZZE12#..UKP200201-200406

main17451-0B010i1CDFTV..CDE120..UKP200406

main17451-0J010i3ZZFE,4ZZFE..ZZE12#..UKP200201-200406

sub17451-0J011

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D020i1CDFTV,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP200201-200406

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D030i1CDFTV,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP200201-200406

5305

5801

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

14 parts on this diagram · 1 diagram in section
