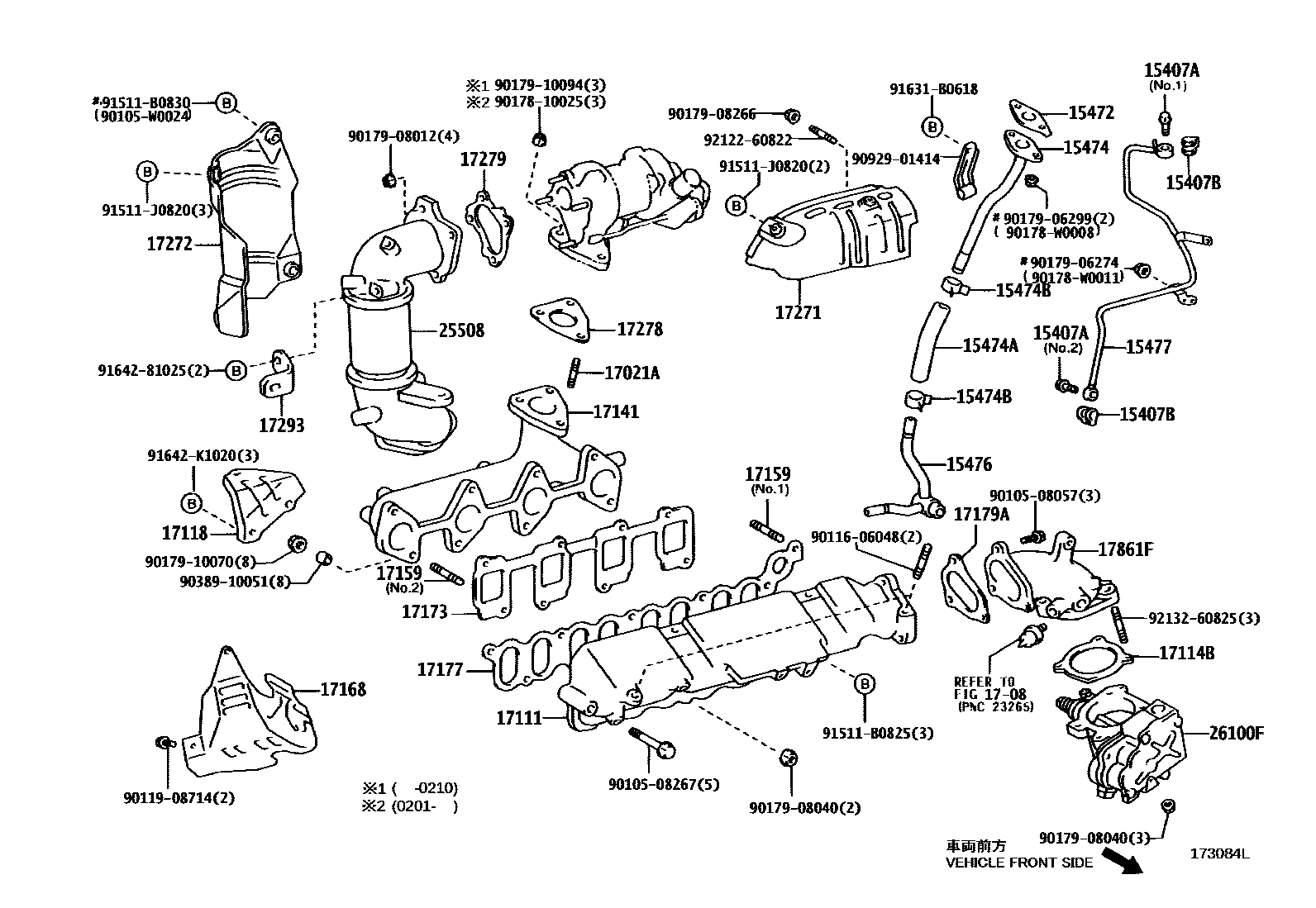

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
NO.1
NO.2
15407BGASKET(FOR TURBO OIL INLET PIPE)
15472GASKET, TURBO OIL OUTLET, NO.1
15474AHOSE, TURBO OIL OUTLET
15474BCLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
15476PIPE, TURBO OIL OUTLET, NO.2
15477PIPE, TURBO OIL INLET
17021HOUSING SUB-ASSY, BEARING
17021ABOLT, STUD(FOR BEARING HOUSING)
1708
17111MANIFOLD, INTAKE
(J)
(L)
17114BGASKET, INTAKE FLANGE
17118STAY, MANIFOLD
(L)
(J)
17141MANIFOLD, EXHAUST
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
NO.2
NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
(L)
(J)
17179AGASKET, INTAKE MANIFOLD, NO.2
(L)
(J)
17271INSULATOR, TURBO, NO.1
17272INSULATOR, TURBO, NO.2
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
17861FCONNECTOR, INTAKE AIR
25508CONVERTER SUB-ASSY, MANIFOLD
*115=TOYOTA/01-/N
26100FSHUTTER ASSY, INTAKE
9010508057
main90105-08057
9010508267
main90105-08267
90105W0024
main90105-W0024
9011606048
main90116-06048
9011908714
main90119-08714
9017810025
main90178-10025
90178W0008
main90178-W0008
90178W0011
main90178-W0011
9017906274
main90179-06274
9017906299
main90179-06299
9017908012
main90179-08012
9017908040
main90179-08040
9017908266
main90179-08266
9017910070
main90179-10070
9017910094
main90179-10094
9038910051
main90389-10051
9092901414
main90929-01414
91511B0825
main91511-B0825
91511B0830
main91511-B0830
91511J0820
main91511-J0820
91631B0618
main91631-B0618
9164281025
main91642-81025
91642K1020
main91642-K1020
9212260822
main92122-60822
9213260825
main92132-60825
54 parts on this diagram · 8 diagrams in section
