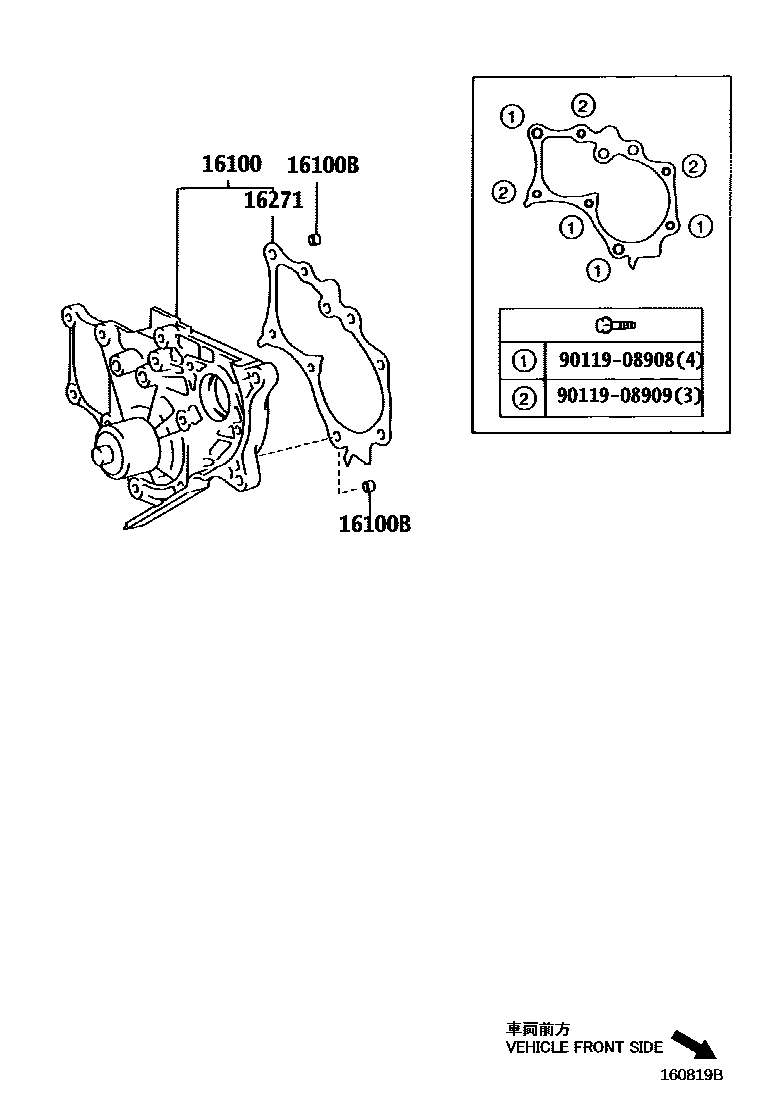

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-09130i3ZZFE,4ZZFE..ZZE12#..UKP200201-200406

(L)

sub16100-09310

main16100-09310i3ZZFE,4ZZFE..ZZE12#..UKP200406

(L)

sub16100-29415

main16100-29135i1CDFTV..CDE120..UKP200201-200406

main16100-29175i3ZZFE,4ZZFE..ZZE12#..UKP200201-200406

(J)

sub16100-29415

main16100-29185i1CDFTV..CDE120..UKP200406

main16100-29415i3ZZFE,4ZZFE..ZZE12#..UKP200406

(J)

main16100-39395i1NDTV..NDE120..UKP200408

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021i1CDFTV..CDE120..UKP200201-200406

16271GASKET, WATER PUMP

main16271-27010i1CDFTV..CDE120..UKP200201-200406

main16271-33020i1NDTV..NDE120..UKP200408

9011908908

main90119-08908

9011908909

main90119-08909

5 parts on this diagram · 3 diagrams in section
