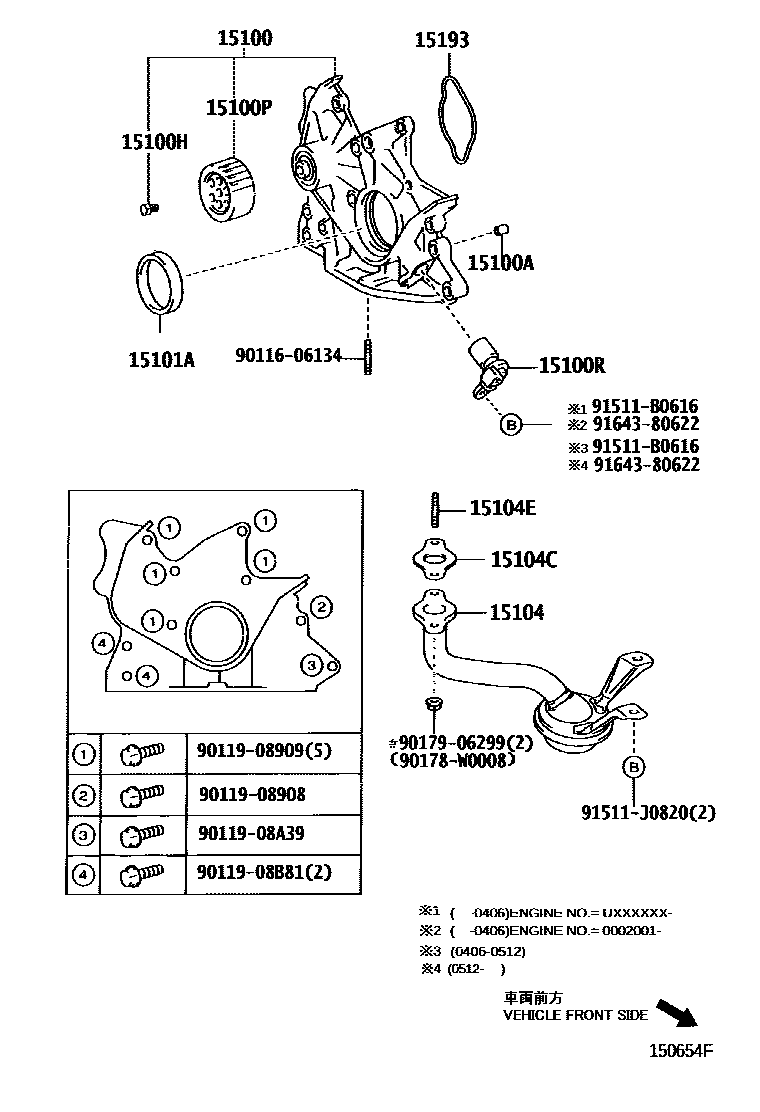

ENGINE OIL PUMP
15100PUMP ASSY, OIL
(J)
15100APIN, RING(FOR OIL PUMP SET)
15100HBOLT, SEAL
15100PPULLEY, OIL PUMP DRIVE SHAFT
15100RSENSOR, CRANK POSITION
15101ASEAL(FOR CRANKSHAFT)
15104STRAINER SUB-ASSY, OIL
(L)
(J)
15104CGASKET(FOR OIL STRAINER)
15104EBOLT, STUD(FOR OIL STRAINER)
15193GASKET, OIL PUMP
(J)
9011606134
main90116-06134
9011908908
main90119-08908
9011908909
main90119-08909
9011908A39
main90119-08A39
9011908B81
main90119-08B81
90178W0008
main90178-W0008
9017906299
main90179-06299
91511B0616
main91511-B0616
91511J0820
main91511-J0820
9164380622
main91643-80622
20 parts on this diagram · 3 diagrams in section
