VENTILATION HOSE

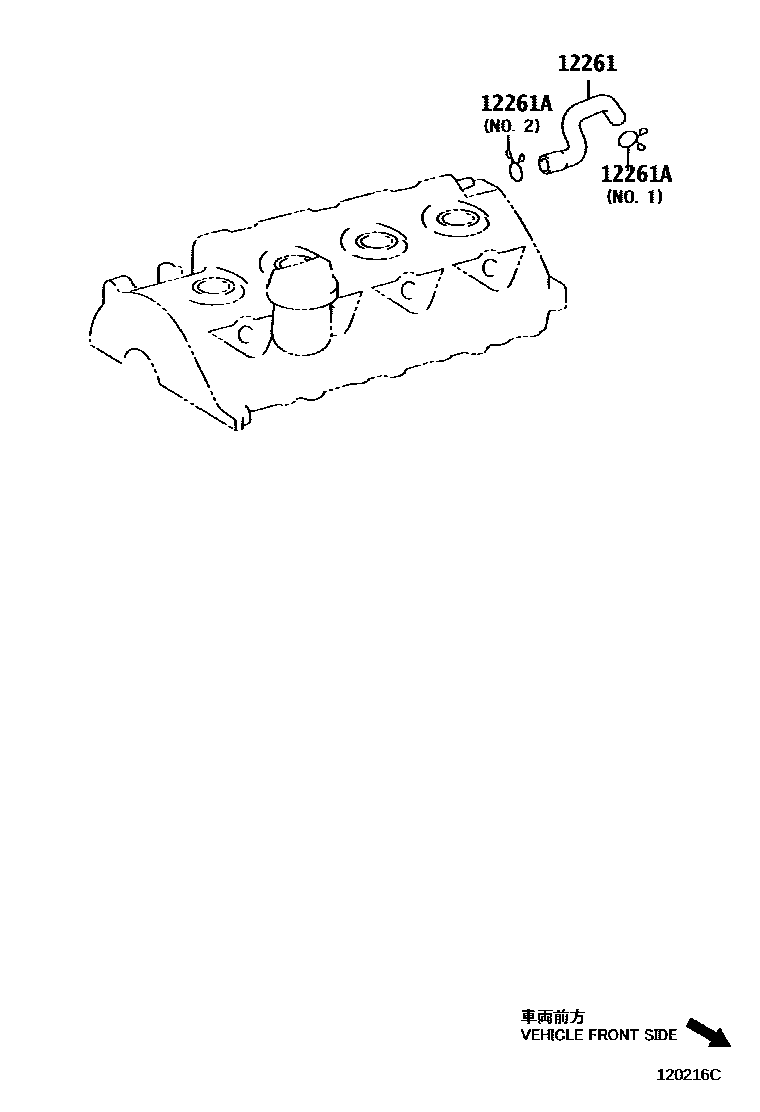

Parts diagram
12261HOSE, VENTILATION
main12261-0D070i200305-200406
(L)
main12261-22050i200305-200406
(J)
main12261-22050i200201-200305
main12261-22070i200406
main12261-27030i200201-200406
main12261-27060i200406
main12261-33060i200408
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-23004i200510
NO.2
main90467-20009i200408
NO.1
main90467-21004i200201-200406
NO.1
main90467-21004i200408
NO.2
main90467-21152i200406
NO.1
main90467-21152i200201-200406
main90467-21152i200406
NO.1 & NO.2
main90467-23002i200201-200510
NO.2
main96134-52600i200406
NO.2

2 parts on this diagram · 3 diagrams in section
