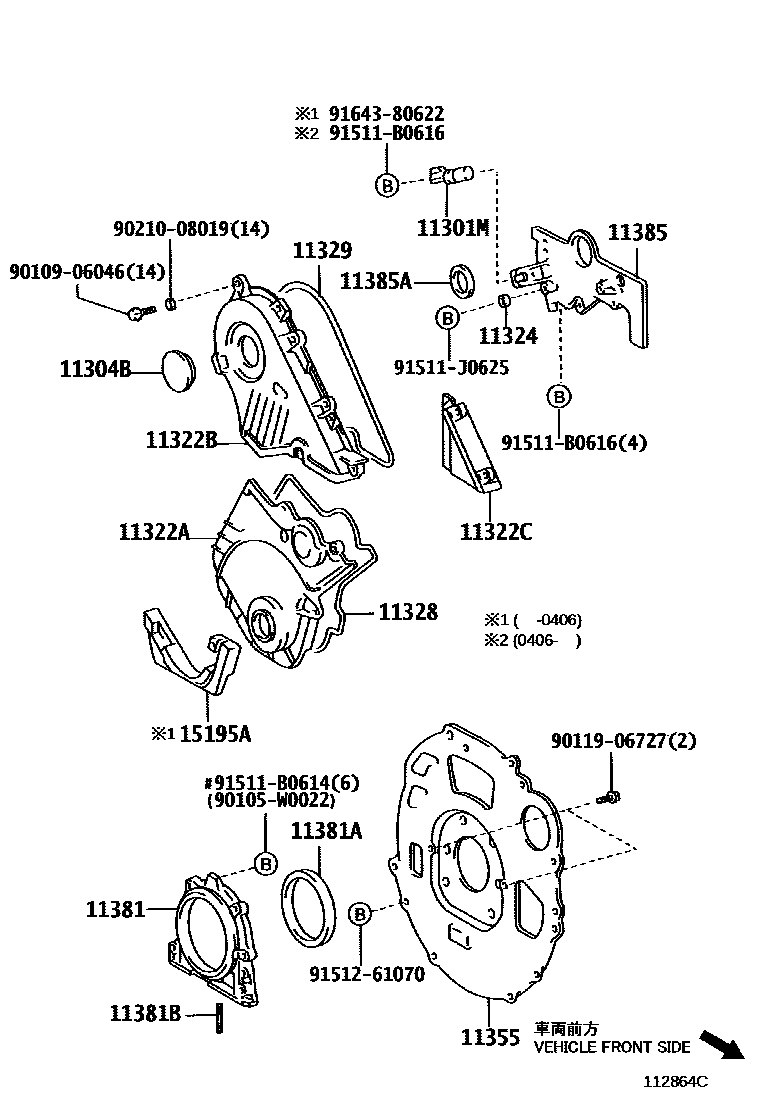

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301MSENSOR, CAM POSITION

main90919-05012i1CDFTV..CDE120..UKP200201-200406

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i1CDFTV..CDE120..UKP200201-200406

OD=64

11322ACOVER, TIMING BELT, NO.1

main11321-27010i1CDFTV..CDE120..UKP200201-200211

sub11321-27011

main11321-27011i1CDFTV..CDE120..UKP200211-200406

11322BCOVER, TIMING BELT, NO.2

main11322-27011i1CDFTV..CDE120..UKP200201-200406

11322CCOVER, TIMING BELT, NO.3

main11323-27010i1CDFTV..CDE120..UKP200201-200406

11324PLATE, TIMING CHAIN COVER

main11324-27010i1CDFTV..CDE120..UKP200201-200406

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-27010i1CDFTV..CDE120..UKP200201-200406

11329GASKET, TIMING GEAR REAR COVER

main11329-27010i1CDFTV..CDE120..UKP200201-200406

11355PLATE, REAR END

main11355-27011i1CDFTV..CDE120..UKP200201-200406

11381RETAINER, ENGINE REAR OIL SEAL

main11381-64020i1CDFTV..CDE120..UKP200201-200406

11381ASEAL, ENGINE REAR OIL

main90311-90008i1CDFTV..CDE120..UKP200201-200406

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06134i1CDFTV..CDE120..UKP200601

main90126-06018i1CDFTV..CDE120..UKP200201-200601

11385RETAINER, CAMSHAFT OIL SEAL

main11382-27010i1CDFTV..CDE120..UKP200201-200406

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38081i1CDFTV..CDE120..UKP200201-200406

15195AINSULATOR, OIL PUMP

main15195-27011i1CDFTV..CDE120..UKP200201-200406

90105W0022

main90105-W0022

9010906046

main90109-06046

9011906727

main90119-06727

9021008019

main90210-08019

91511B0614

main91511-B0614

91511B0616

main91511-B0616

91511J0625

main91511-J0625

9151261070

main91512-61070

9164380622

main91643-80622

24 parts on this diagram · 2 diagrams in section
