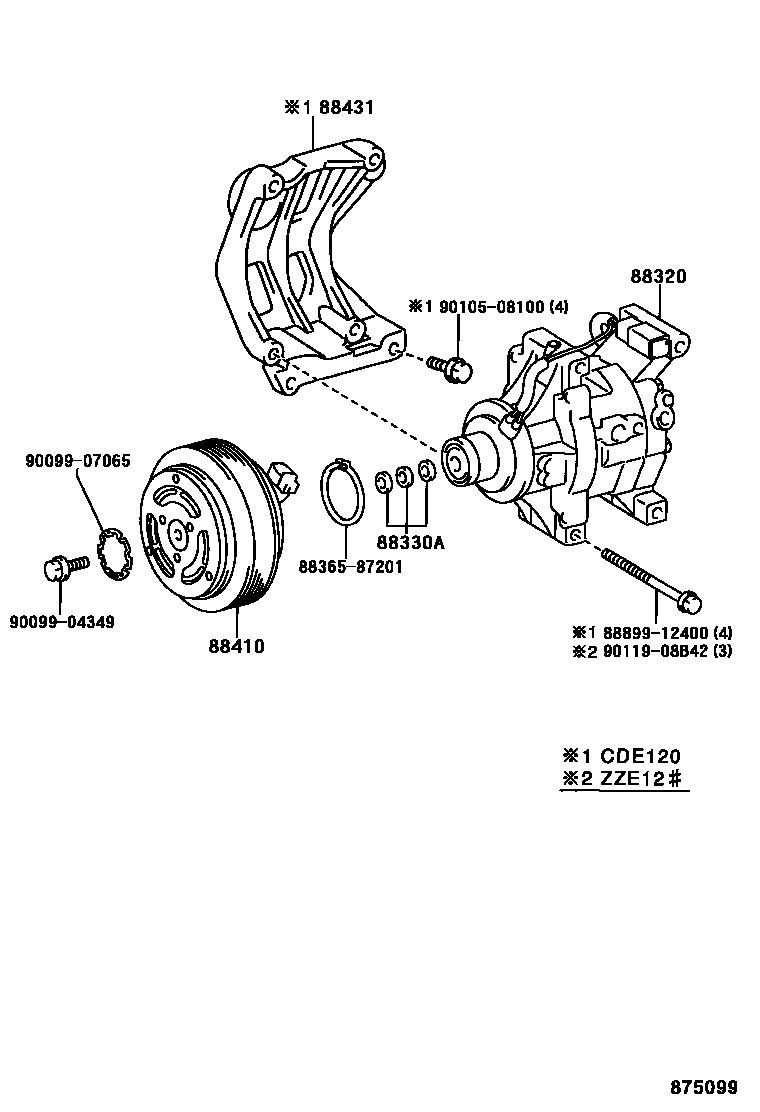

HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-1A481iCDE120200110-200207

main88320-1A491iZZE12#200109-200209

main88320-1A491iZZE12#200310-200401

DEALER OPTION

main88320-1A491iZZE12#200308-200401

MAKER OPTION

main88320-1A550iCDE120200207-200401

main88320-1A570iZZE12#200209-200310

DEALER OPTION

main88320-1A570iZZE12#200209-200308

MAKER OPTION

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCDE120,ZZE12#200109-200401

88410CLUTCH ASSY, MAGNET

main88410-13010iCDE120200110-200207

main88410-13020iCDE120200207-200401

main88410-1A220iZZE12#200109-200209

main88410-1A260iZZE12#200209-200308

MAKER OPTION

main88410-1A260iZZE12#200209-200310

DEALER OPTION

main88410-1A290iZZE12#200308-200401

MAKER OPTION

main88410-1A290iZZE12#200310-200401

DEALER OPTION

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-13010iCDE120200110-200401

8836587201RING, SNAP

main88365-87201

8889912400COVER, EVAPORATOR

main88899-12400

9009904349

main90099-04349

9009907065

main90099-07065

9010508100

main90105-08100

9011908B42

main90119-08B42

10 parts on this diagram · 1 diagram in section
