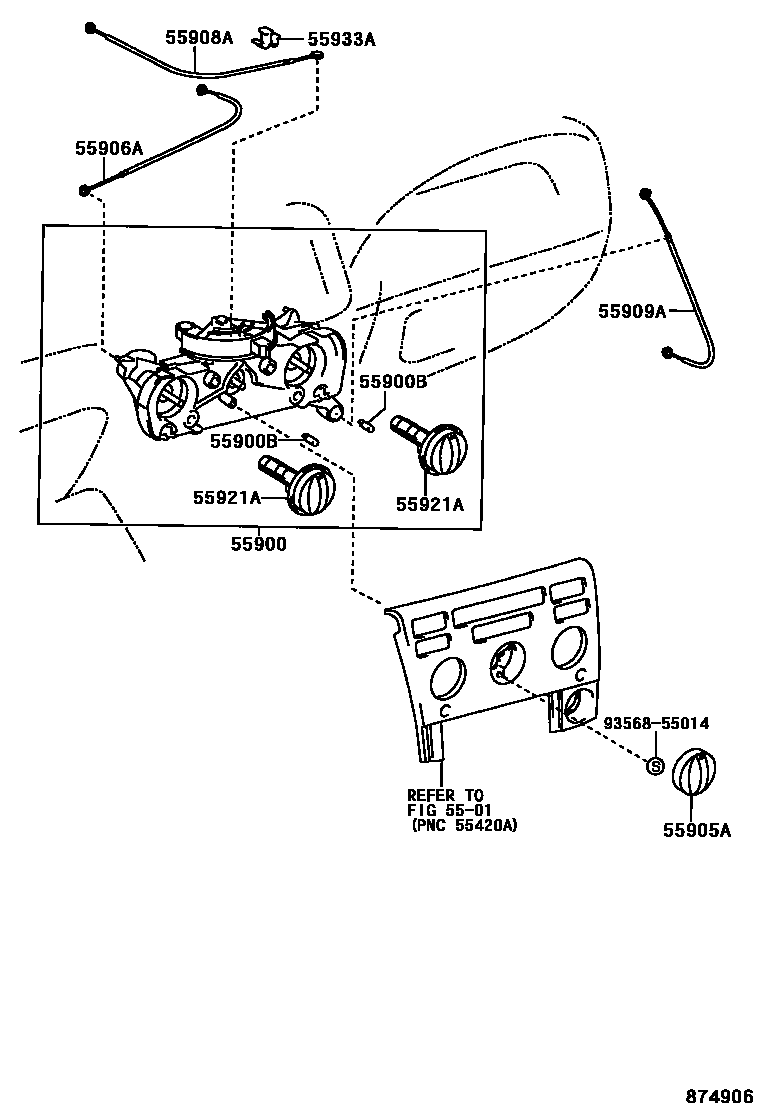

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL--AUTO AIR CONDI0003 1AIR DUCT 0004 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-13070-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM0#,1#

main55900-13070-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM1#

55900BBULB, AIR CONDITIONER CONTROL

main90981-11040iCDE120,ZZE12#¥140200109-200401

12V 2W

55905AKNOB, HEATER CONTROL

main55905-13050-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM0#,1#

main55905-13050-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM1#

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-13020iCDE120,ZZE12#..RHD¥540200109-200401

main55906-13030iCDE120,ZZE12#..LHD¥530200110-200401

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-13020iCDE120,ZZE12#..RHD¥540200109-200401

main55908-13030iCDE120,ZZE12#..LHD¥530200110-200401

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-13020iCDE120,ZZE12#¥540200109-200401

55921ARETAINER, HEATER CONTROL

main55921-12120iCDE120,ZZE12#¥1,150200109-200301

sub55921-12161¥750

55933ACLAMP, HEATER CONTROL CABLE

main55933-52010iCDE120,ZZE12#¥220200109-200401

9356855014

main93568-55014¥70

10 parts on this diagram · 4 diagrams in section
