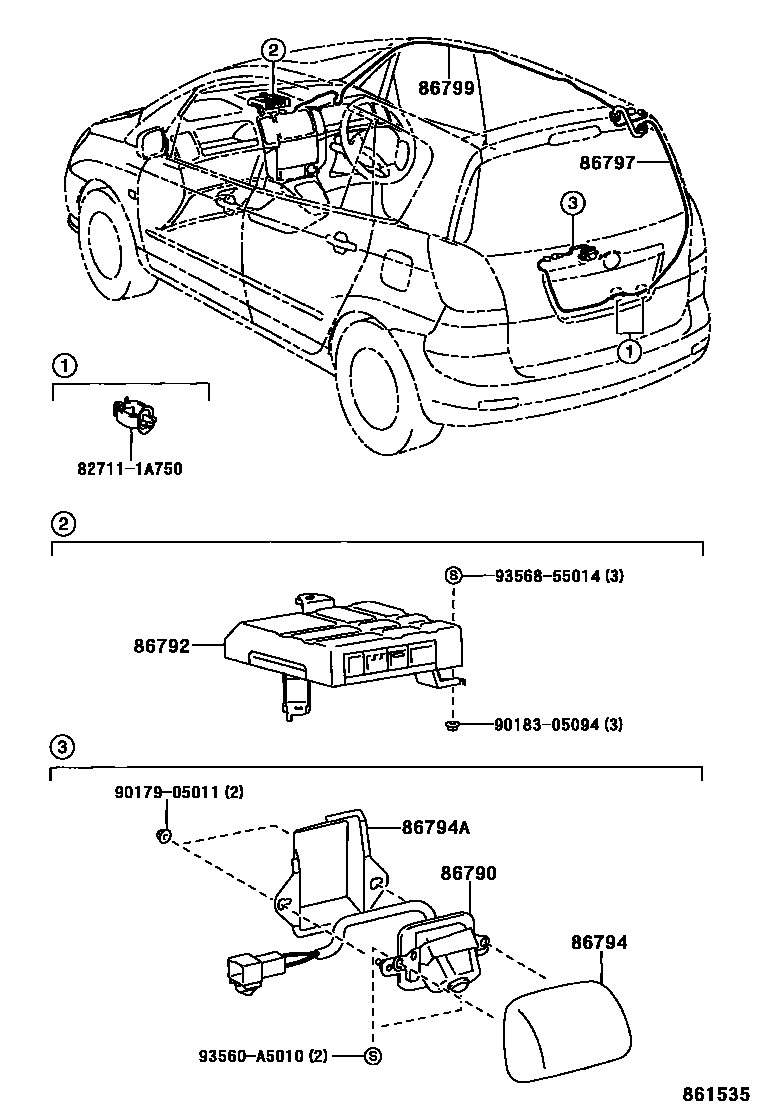

CAMERA & REAR MONITOR DISPLAY

86790CAMERA ASSY, TELEVISION

main86790-13020iCDE120,ZZE12#¥58,000200109-200401

86792CONTROLLER, TELEVISION CAMERA

main86792-13040iCDE120,ZZE12#¥93,900200109-200401

86794COVER, TELEVISION CAMERA WIRE

main86794-13020-A0iCDE120,ZZE12#200109-200401

SUPER WHITE 2,040

main86794-13020-B0iCDE120,ZZE12#200109-200401

SILVER ME.GR.,1D9

main86794-13020-B2iCDE120,ZZE12#200304-200401

SILVER M.M.,1E7

main86794-13020-C0iCDE120,ZZE12#200109-200304

BLACK ME,205

main86794-13020-C1iCDE120,ZZE12#200304-200401

BLACK MC.,209

main86794-13020-D0iCDE120,ZZE12#200109-200401

RED M.M.,3N8

main86794-13020-D1iCDE120,ZZE12#200109-200401

BORDEAUX MC.,3P2

main86794-13020-F0iCDE120,ZZE12#200109-200304

GOLD ME.,585

main86794-13020-G0iCDE120,ZZE12#200109-200401

DARK GREEN MC.,6R4

main86794-13020-H0iCDE120,ZZE12#200304-200401

LT.AQUA ME.OP.,761

main86794-13020-J0iCDE120,ZZE12#200109-200401

GRAYISH BLUE ME.,8N6

main86794-13020-J1iCDE120,ZZE12#200109-200401

DK.BLUE M.M.,8P4

main86794-13020-J2iCDE120,ZZE12#200109-200304

BLUE M.M.,8Q1

86794ACOVER, TELEVISION CAMERA WIRE, NO.2

main86795-13010iCDE120,ZZE12#¥910200109-200401

86797WIRE, TELEVISION CAMERA, NO.2

main86797-13010iCDE120,ZZE12#¥4,270200109-200401

86799WIRE, TELEVISION CAMERA

main86799-13010iCDE120,ZZE12#¥4,270200109-200401

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750¥60

9017905011

main90179-05011¥80

9018305094

main90183-05094¥90

93560A5010

main93560-A5010¥70

9356855014

main93568-55014¥70

11 parts on this diagram · 1 diagram in section
