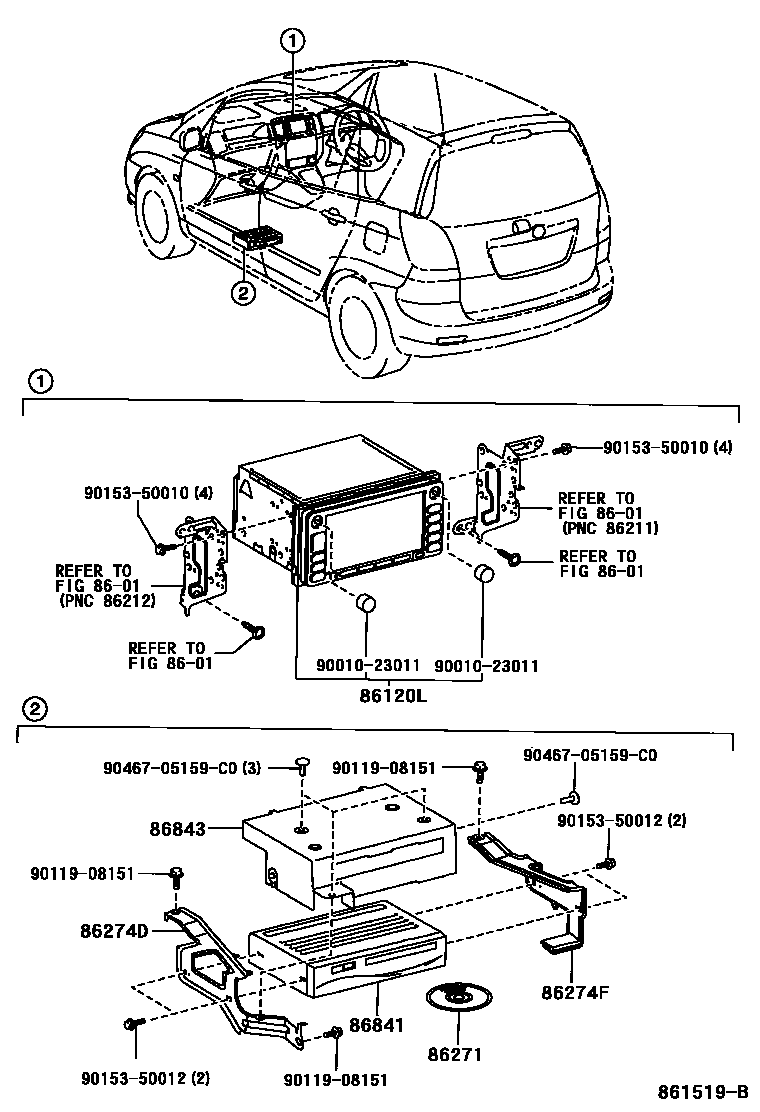

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

main86120-33420iCDE120,ZZE12#200109-200301

FUJITSU TEN,ID=19001

sub86120-33421

main86120-33421iCDE120,ZZE12#200301-200401

FUJITSU TEN,ID=19003

86271DISC, DISC PLAYER

main86271-24120iCDE120,ZZE12#200109-200210

sub86271-24121

main86271-24121iCDE120,ZZE12#200210-200309

sub86271-24122

main86271-24122iCDE120,ZZE12#200309-200401

sub86271-24123

86274DBRACKET, DISC PLAYER

main86274-13010iCDE120,ZZE12#200109-200401

86274FBRACKET, DISC PLAYER, NO.2

main86274-13020iCDE120,ZZE12#200109-200401

86841COMPUTER, NAVIGATION

main86841-13020iCDE120,ZZE12#200109-200401

86843COVER, NAVIGATION COMPUTER

main86804-13010iCDE120,ZZE12#200109-200401

9001023011

main90010-23011

9011908151

main90119-08151

9015350010

main90153-50010

9015350012

main90153-50012

9046705159C0

main90467-05159C0

12 parts on this diagram · 1 diagram in section
