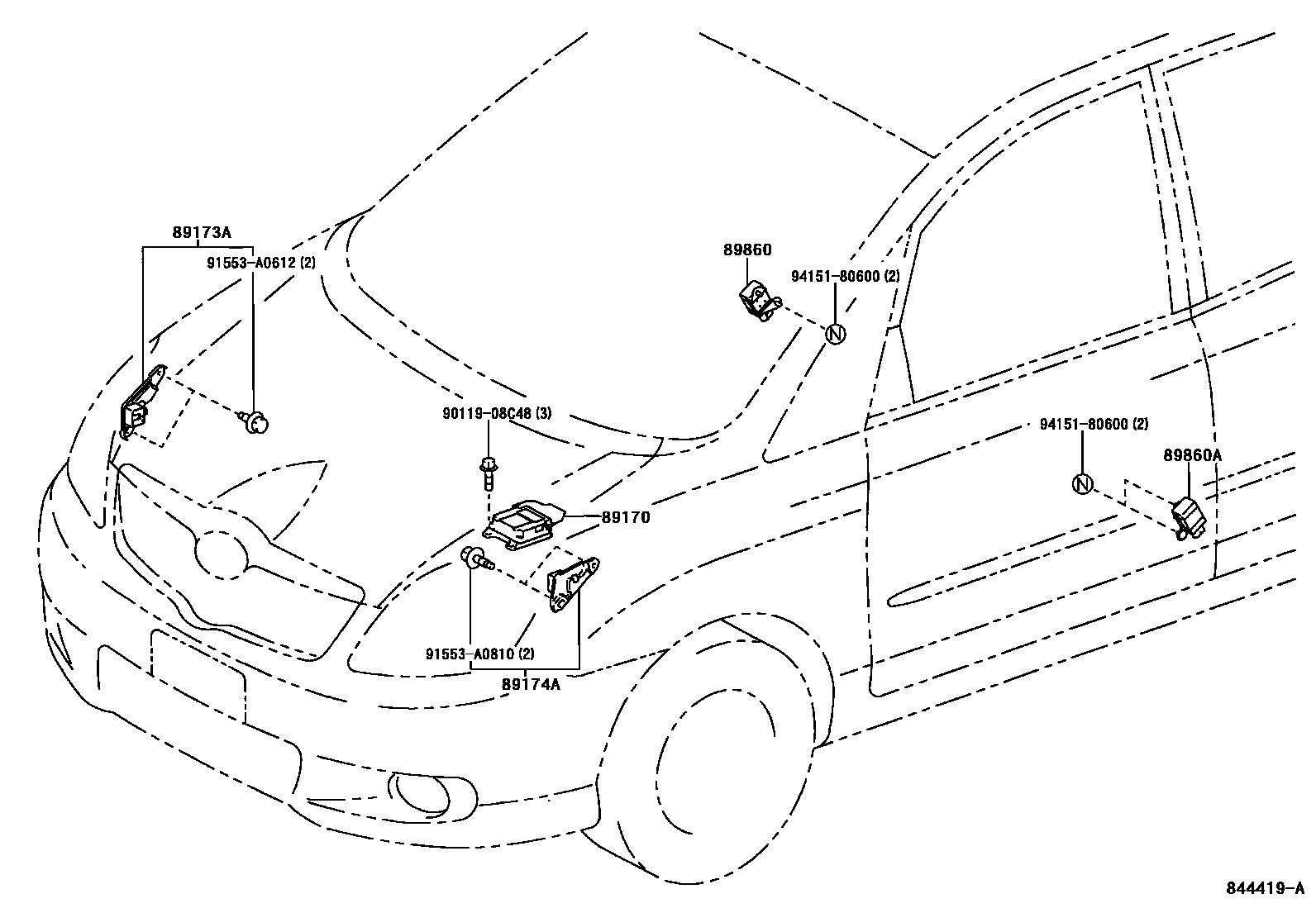

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-13030iCDE120,ZZE12#200109-200304

sub89170-13080

main89170-13040iCDE120,ZZE12#200109-200401

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-13050iCDE120,ZZE12#200109-200401

GERMANY SPEC

main89170-13060iCDE120,ZZE12#200109-200401

GERMAN SPEC & *80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-13080iCDE120,ZZE12#200304-200401

89173ASENSOR, AIRBAG, FRONT RH

main89173-19265iZZE12#200109-200401

main89173-19275iCDE120200110-200401

89174ASENSOR, AIRBAG, FRONT LH

main89174-19075iCDE120,ZZE12#200109-200401

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-13010iCDE120,ZZE12#200109-200401

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-13010iCDE120,ZZE12#200109-200401

9011908C48

main90119-08C48

91553A0612

main91553-A0612

91553A0810

main91553-A0810

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
