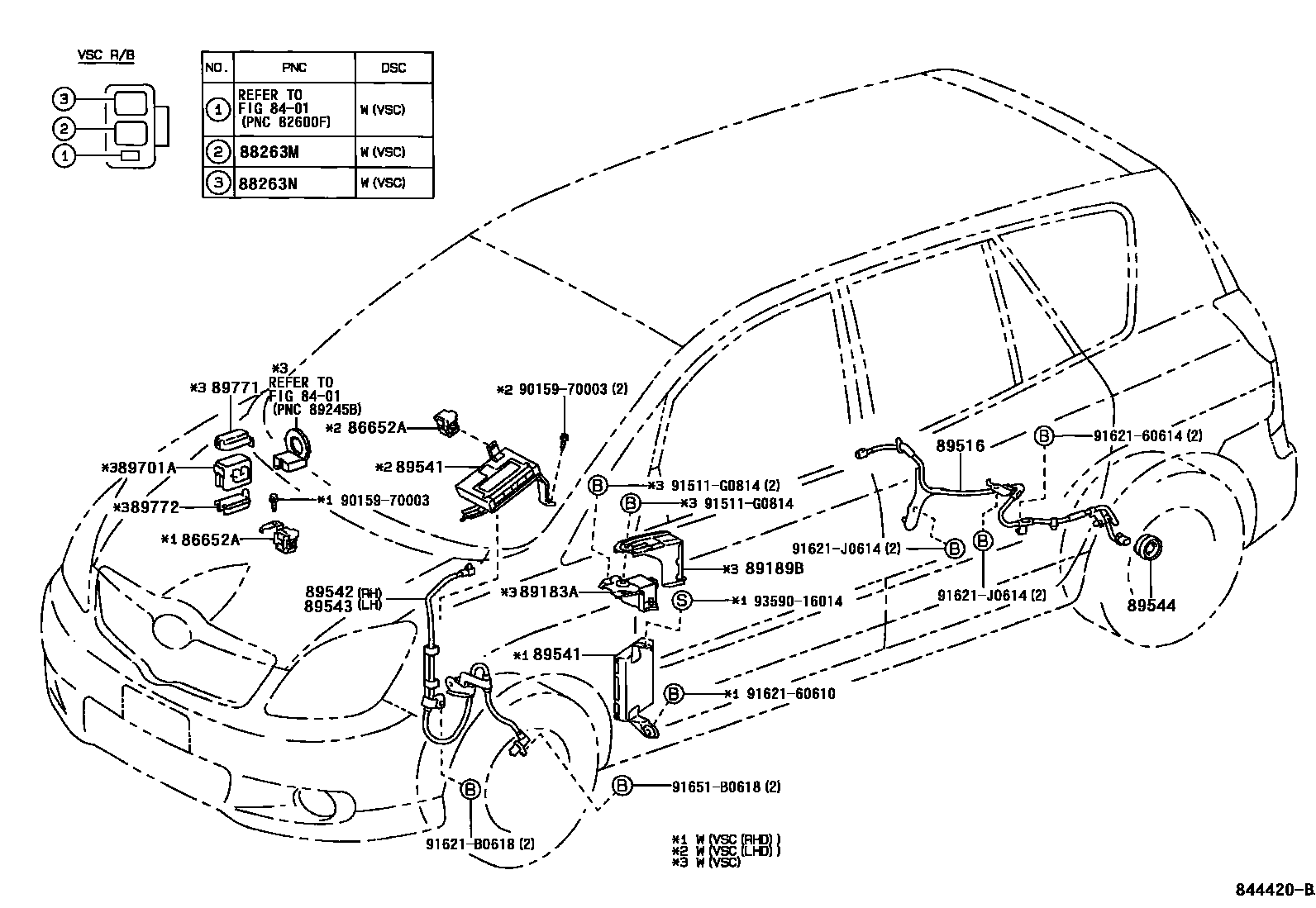

ABS & VSC

8401

86652ABUZZER ASSY, SKID CONTROL

main86650-12070iZZE122..RHD..ATM..SOL¥2,950200109-200401

main86652-51010iZZE122..LHD..ATM..SOL¥3,820200110-200401

88263MRELAY, ABS SOLENOID

main88263-32070iZZE122..ATM..SOL¥2,810200109-200401

88263NRELAY, ABS MOTOR

main88263-32070iZZE122..ATM..SOL¥2,810200109-200401

89183ASENSOR, YAWRATE

main89180-12010iZZE122..ATM..SOL¥120,000200109-200401

89189BBRACKET, YAWRATE SENSOR

main89189-12020iZZE122..ATM..SOL¥1,800200109-200401

89516WIRE, SKID CONTROL SENSOR

main89516-12010iCDE120,ZZE12#¥2,370200109-200401

RH

main89516-12020iCDE120,ZZE12#¥2,370200109-200401

LH

89541COMPUTER, SKID CONTROL

main89540-13060iZZE122..RHD..ATM..SOL¥259,000200109-200212

sub89540-13061¥259,000

main89540-13061iZZE122..RHD..ATM..SOL¥259,000200212-200401

main89540-13070iZZE122..LHD..ATM..SOL200110-200212

sub89540-13071

main89540-13071iZZE122..LHD..ATM..SOL200212-200401

89542SENSOR, SPEED, FRONT RH

main89542-12070iCDE120,ZZE12#¥21,700200109-200401

89543SENSOR, SPEED, FRONT LH

main89543-12070iCDE120,ZZE12#¥21,700200109-200401

89544SENSOR, SKID CONTROL

main89544-32030iCDE120,ZZE12#¥13,500200109-200401

sub89544-32040¥13,300

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-12020iZZE122..ATM..SOL¥660200109-200401

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12020iZZE122..ATM..SOL¥710200109-200401

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12020iZZE122..ATM..SOL¥580200109-200401

9015970003

main90159-70003¥60

91511G0814

main91511-G0814¥130

9162160610

main91621-60610¥100

9162160614

main91621-60614¥120

91621B0618

main91621-B0618¥110

91621J0614

main91621-J0614¥110

91651B0618

main91651-B0618¥100

9359016014

main93590-16014¥280

22 parts on this diagram · 1 diagram in section
