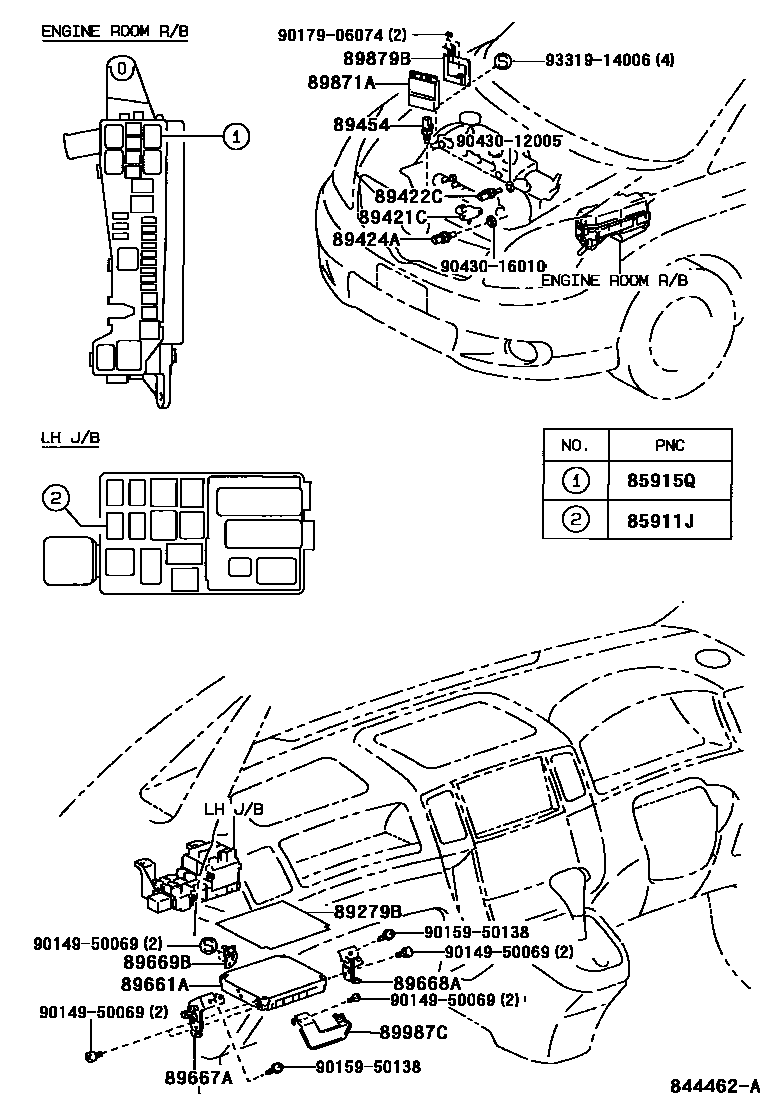

ELECTRONIC CONTROLED DIESEL (ECD)
85911JRELAY ASSY, CIRCUIT OPENING (FOR ECD)
sub90987-02027
85915QRELAY, COMPUTER (FOR DIESEL)
sub90987-02027
89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89454SENSOR, FUEL TEMPERATURE
89661ACOMPUTER, ENGINE CONTROL
PART NUMBER LABEL=89661-13130
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
89987CBRACKET, COMPUTER, NO.1
9014950069
main90149-50069
9015950138
main90159-50138
9017906074
main90179-06074
9043012005
main90430-12005
9043016010
main90430-16010
9331914006
main93319-14006
20 parts on this diagram · 2 diagrams in section
