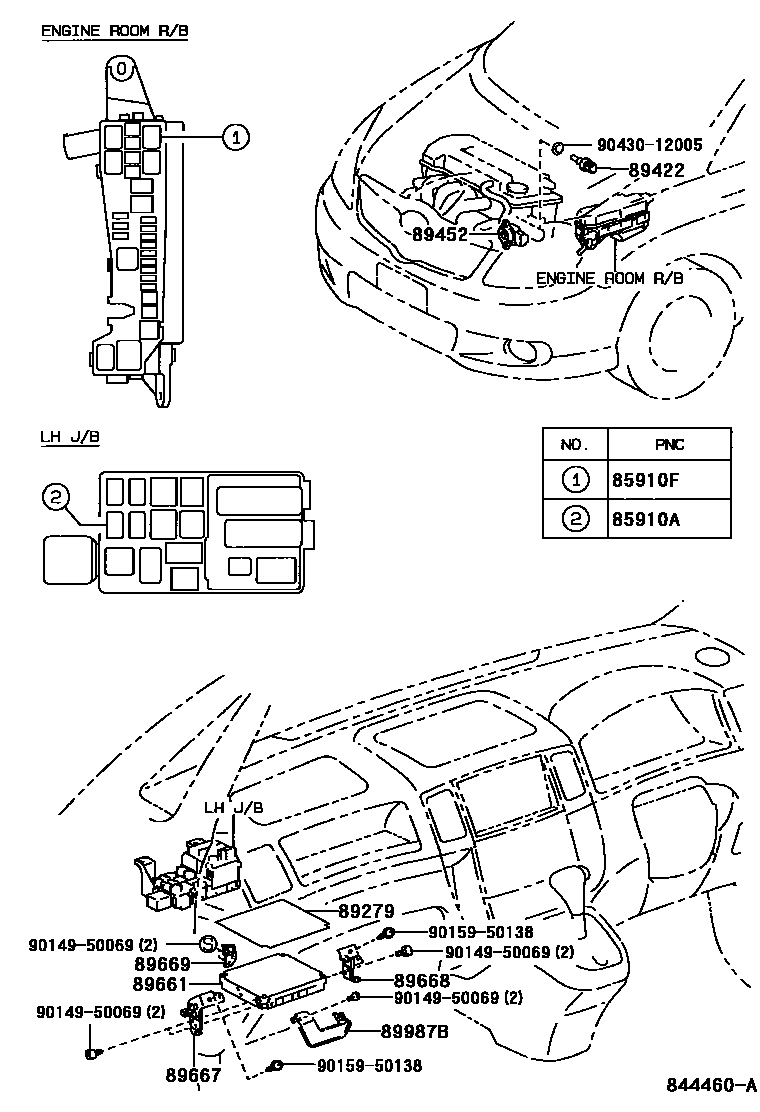

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02020iZZE12#200109-200401

sub90987-02027

85910FRELAY, COMPUTER (FOR EFI)

main90987-02020iZZE12#200109-200401

sub90987-02027

89279COVER, ENGINE CONTROL COMPUTER

main89279-12150iZZE12#200109-200401

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZZE12#200109-200401

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZZE12#200109-200401

89661COMPUTER, ENGINE CONTROL

main89661-13070iZZE121200110-200401

PART NUMBER LABEL=89661-13070

sub89661-13071

main89661-13080iZZE122..MTM200109-200401

PART NUMBER LABEL=89661-13080

main89661-13090iZZE122..LHD..ATM200110-200401

PART NUMBER LABEL=89661-13090

main89661-13120iCDE120..LHD200305-200401

sub89661-13121

main89661-13140iZZE121200110-200401

PART NUMBER LABEL=89661-13140

main89661-13150iZZE122..MTM200109-200401

PART NUMBER LABEL=89661-13150

main89661-13160iZZE122..LHD..ATM200110-200401

PART NUMBER LABEL=89661-13160

main89661-13170iZZE122..RHD..ATM200109-200401

PART NUMBER LABEL=89661-13170

main89661-13200iZZE122..RHD..ATM200109-200401

PART NUMBER LABEL=89661-13200

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12190iCDE120,ZZE12#..LHD200110-200401

main89667-13060iZZE12#..RHD200109-200401

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12100iZZE12#..LHD200110-200401

main89668-13060iZZE12#..RHD200109-200401

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-12030iZZE12#200109-200401

89987BBRACKET, COMPUTER, NO.1

main89987-13010iZZE12#..RHD200109-200401

9014950069

main90149-50069

9015950138

main90159-50138

9043012005

main90430-12005

13 parts on this diagram · 2 diagrams in section
