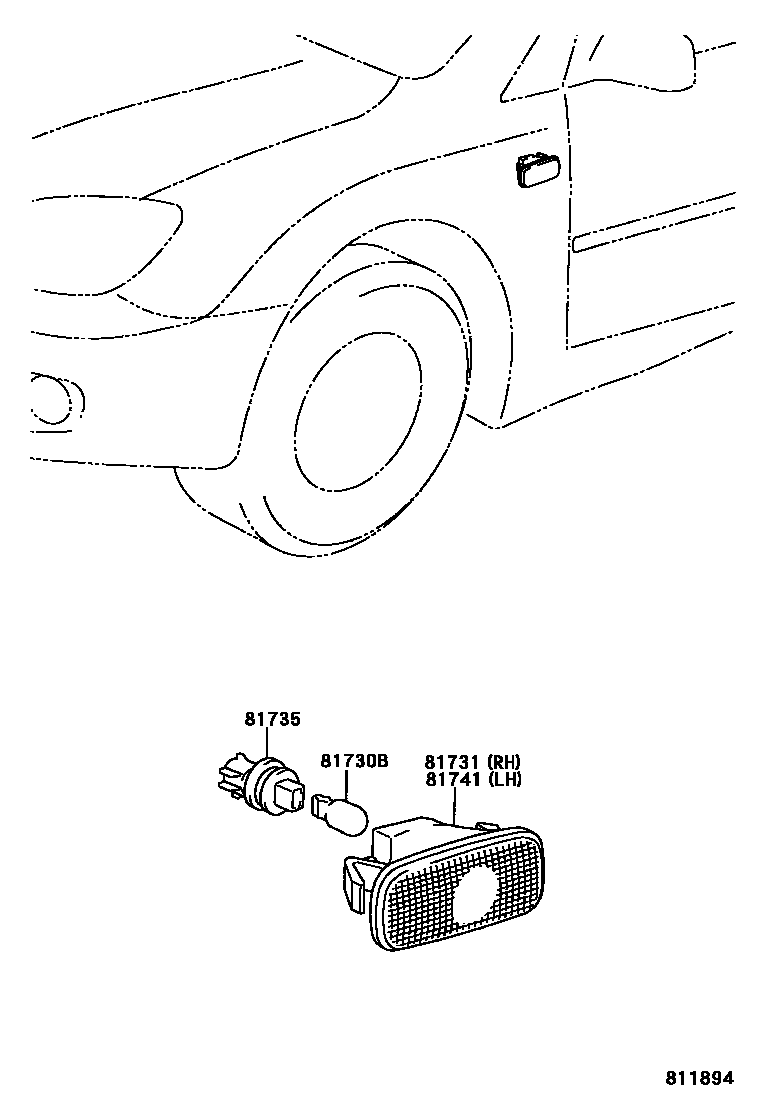

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iCDE120,ZZE12#200109-200401

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-53010iCDE120,ZZE12#200109-200401

sub81731-53011

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60001×2iCDE120,ZZE12#200109-200401

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-53010iCDE120,ZZE12#200109-200401

sub81731-53011

4 parts on this diagram · 1 diagram in section
