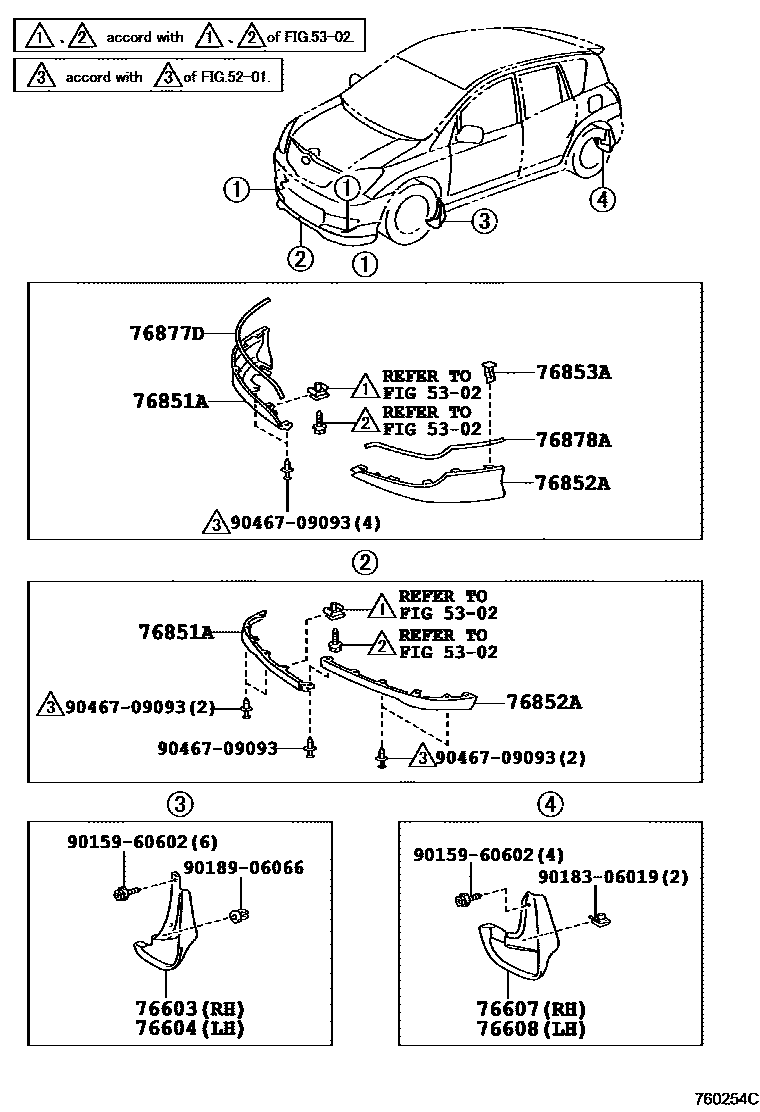

MUDGUARD & SPOILER
5302
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
UNPAINTED
SUPER WHITE 2,040
SILVER ME.GR.,1D9
SILVER M.M.,1E7
BLACK ME,205
BLACK MC.,209
RED M.M.,3N8
BORDEAUX MC.,3P2
SUPER RED 5,3P0
GOLD ME.,585
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
BLUE M.M.,8Q1
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
UNPAINTED
SUPER WHITE 2,040
SILVER ME.GR.,1D9
SILVER M.M.,1E7
BLACK ME,205
BLACK MC.,209
RED M.M.,3N8
BORDEAUX MC.,3P2
SUPER RED 5,3P0
GOLD ME.,585
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
BLUE M.M.,8Q1
76851ACOVER, FRONT SPOILER, RH
TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE A:REFER TO ILLUSTRATION,SILVER ME.GR.,1D9
TYPE A:REFER TO ILLUSTRATION,SILVER M.M.,1E7
TYPE A:REFER TO ILLUSTRATION,BLACK ME,205
TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209
TYPE A:REFER TO ILLUSTRATION,RED M.M.,3N8
TYPE A:REFER TO ILLUSTRATION,BORDEAUX MC.,3P2
TYPE A:REFER TO ILLUSTRATION,GOLD ME.,585
TYPE A:REFER TO ILLUSTRATION,DARK GREEN MC.,6R4
TYPE A:REFER TO ILLUSTRATION,LT.AQUA ME.OP.,761
TYPE A:REFER TO ILLUSTRATION,GRAYISH BLUE ME.,8N6
TYPE A:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4
TYPE A:REFER TO ILLUSTRATION,BLUE M.M.,8Q1
TYPE B:REFER TO ILLUSTRATION
76852ACOVER, FRONT SPOILER, LH
TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE A:REFER TO ILLUSTRATION,SILVER ME.GR.,1D9
TYPE A:REFER TO ILLUSTRATION,SILVER M.M.,1E7
TYPE A:REFER TO ILLUSTRATION,BLACK ME,205
TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209
TYPE A:REFER TO ILLUSTRATION,RED M.M.,3N8
TYPE A:REFER TO ILLUSTRATION,BORDEAUX MC.,3P2
TYPE A:REFER TO ILLUSTRATION,GOLD ME.,585
TYPE A:REFER TO ILLUSTRATION,DARK GREEN MC.,6R4
TYPE A:REFER TO ILLUSTRATION,LT.AQUA ME.OP.,761
TYPE A:REFER TO ILLUSTRATION,GRAYISH BLUE ME.,8N6
TYPE A:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4
TYPE A:REFER TO ILLUSTRATION,BLUE M.M.,8Q1
TYPE B:REFER TO ILLUSTRATION
76853ARETAINER, FRONT SPOILER, UPPER NO.1
76877DPROTECTOR, FRONT SPOILER SIDE, RH
GRAY,040 ,1D9 ,585
GRAY,040 ,1D9 ,1E7 ,761
BLACK,209 ,3N8 ,3P2 ,6R4 ,8N6 ,8P4
BLACK,205 ,3N8 ,3P2 ,6R4 ,8N6 ,8P4 ,8Q1
76878APROTECTOR, FRONT SPOILER SIDE, LH
GRAY,040 ,1D9 ,585
GRAY,040 ,1D9 ,1E7 ,761
BLACK,205 ,3N8 ,3P2 ,6R4 ,8N6 ,8P4 ,8Q1
BLACK,209 ,3N8 ,3P2 ,6R4 ,8N6 ,8P4
9015960602
main90159-60602
9018306019
main90183-06019
9018906066
main90189-06066
9046709093
main90467-09093
14 parts on this diagram · 2 diagrams in section
