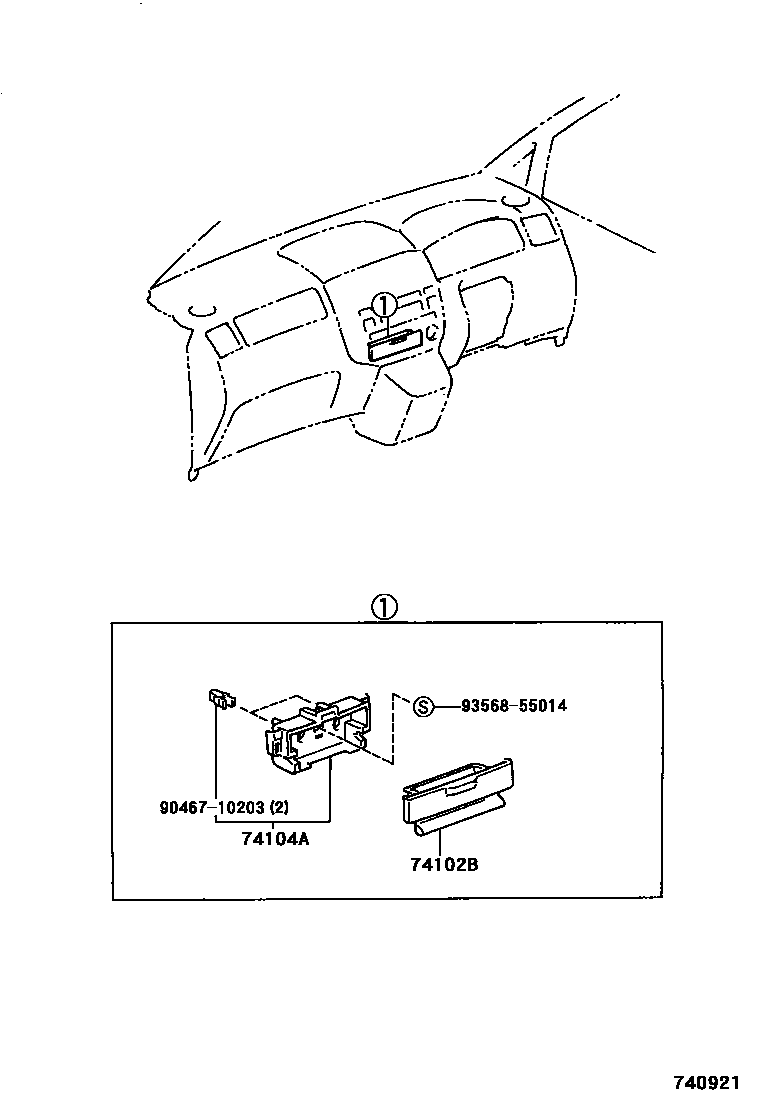

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-13020-B0iCDE120,ZZE12#..SOL200109-200306

DK.GRAY,TRIM0#,1#

sub74102-13070

main74102-13020-B0iCDE120,ZZE12#..SOL200109-200306

DK.GRAY,TRIM1#

sub74102-13070

main74102-13050iCDE120,ZZE12#..SOL200109-200306

CARBON GRAIN

sub74102-13100

main74102-13070-B0iCDE120,ZZE12#..SOL200306-200401

DK.GRAY,TRIM0#,1#

main74102-13070-B0iCDE120,ZZE12#..SOL200306-200401

DK.GRAY,TRIM1#

main74102-13100iCDE120,ZZE12#..SOL200306-200401

CARBON GRAIN

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-13020iCDE120,ZZE12#200109-200401

9046710203

main90467-10203

9356855014

main93568-55014

4 parts on this diagram · 1 diagram in section
