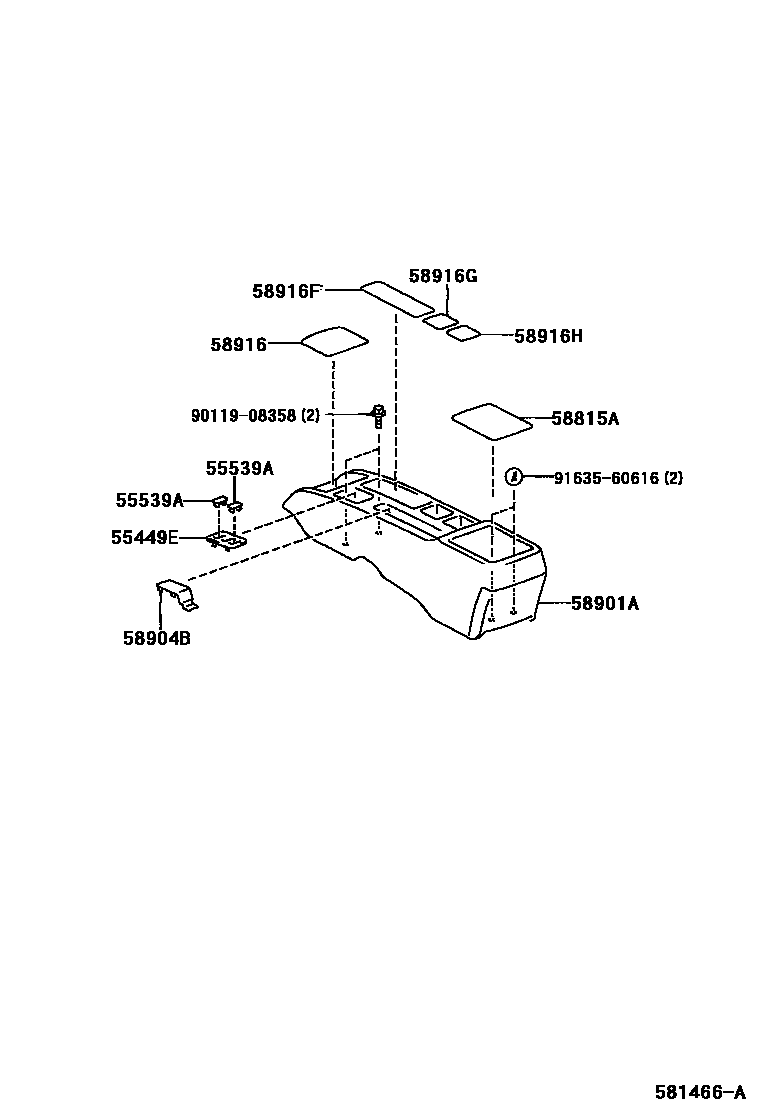

CONSOLE BOX & BRACKET

55449EBASE, SWITCH

main55449-13010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

sub55449-13010

main55449-13010-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

sub55449-13010

55539ACOVER, SPARE SWITCH HOLE

main55539-32010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

sub55539-32010

sub55539-32030

main55539-32010-P3iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

sub55539-32010

sub55539-32030

58815ACARPET, CONSOLE BOX

main58815-13010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

sub58815-13010

main58815-13010-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

sub58815-13010

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-13070-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main58901-13070-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-13010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

sub58904-13010

main58904-13010-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

sub58904-13010

58916MAT, BOX BOTTOM

main58916-13010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main58916-13010-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

58916FMAT, BOX BOTTOM, NO.1

main58916-13020-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main58916-13020-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

58916GMAT, BOX BOTTOM, NO.2

main58916-13030-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main58916-13030-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

58916HMAT, BOX BOTTOM, NO.3

main58916-13040-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main58916-13040-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

9011908358

main90119-08358

9163560616

main91635-60616

11 parts on this diagram · 1 diagram in section
