FLOOR INSULATOR

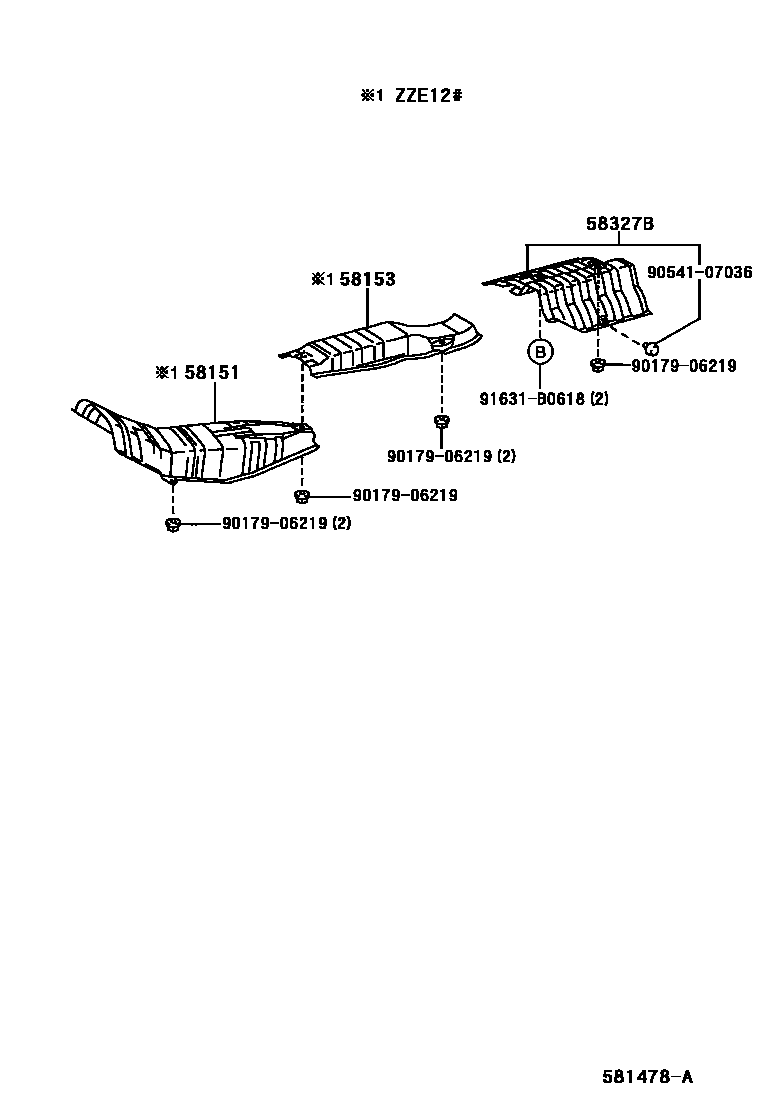

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12180i¥6,000200109-200211

sub58151-12210¥6,000

main58151-12210i¥6,000200301-200307

main58151-12220i¥4,760200307-200401

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20141i¥5,100200109-200401

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-13050i¥5,500200109-200401

9017906219

main90179-06219¥70

9054107036

main90541-07036¥110

91631B0618

main91631-B0618¥90

6 parts on this diagram · 1 diagram in section
