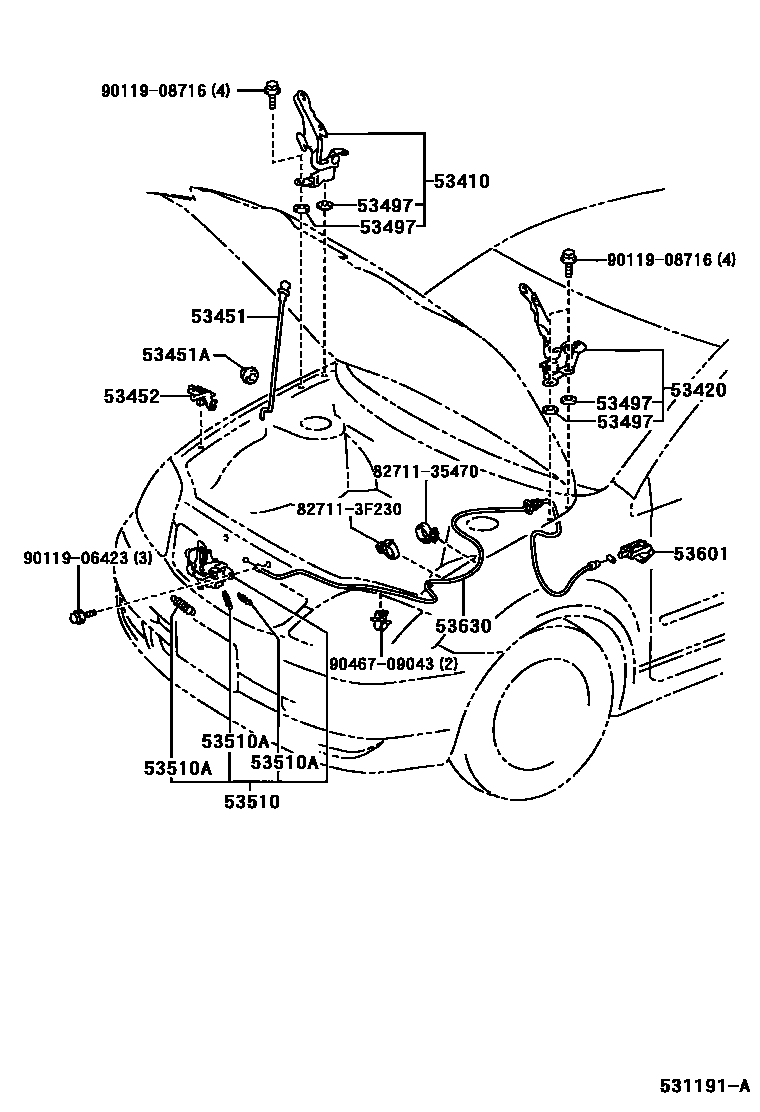

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-13010iCDE120,ZZE12#200109-200401

53420HINGE ASSY, HOOD, LH

main53420-13010iCDE120,ZZE12#200109-200401

53451ROD, HOOD SUPPORT

main53440-13020iCDE120,ZZE12#200109-200401

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iCDE120,ZZE12#200109-200401

53452HOLDER, HOOD STAY

main53452-13010iCDE120,ZZE12#200109-200401

53497PAD, HOOD HINGE, NO.1

main53497-50010iCDE120,ZZE12#200109-200401

53510LOCK ASSY, HOOD

main53510-13050iCDE120,ZZE12#..RHD200109-200401

main53510-13060iCDE120,ZZE12#..LHD200110-200401

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iCDE120,ZZE12#..RHD200109-200401

WD=0.9,CW=20.75

main90506-12063iCDE120,ZZE12#200109-200401

WD=1.2,CW=8.5

main90506-16077iCDE120,ZZE12#200211-200401

WD=1.6,CW=12

main90506-18067iCDE120,ZZE12#200109-200211

WD=1.8,CW=13

main90905-06005iCDE120,ZZE12#..LHD200110-200401

WD=0.9,CW=21.25

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

sub53601-52010

main53601-52010-B3iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-C0iCDE120,ZZE12#..SOL200109-200401

BLACK,TRIM0#,1#

sub53601-52010

main53601-52010-C0iCDE120,ZZE12#..SOL200109-200401

BLACK,TRIM10

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12510iCDE120,ZZE12#200109-200401

8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35470

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

9011906423

main90119-06423

9011908716

main90119-08716

9046709043

main90467-09043

15 parts on this diagram · 2 diagrams in section
