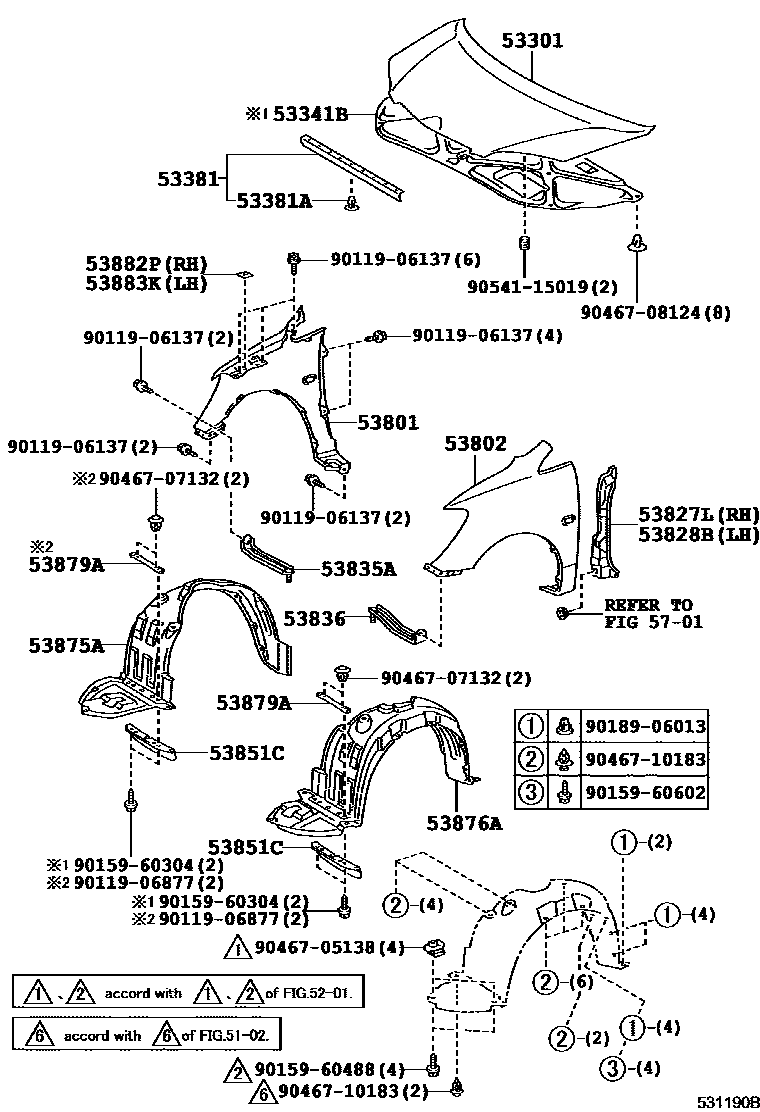

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-13050iCDE120,ZZE12#¥32,500200109-200401

53341BINSULATOR, HOOD

main53341-13010iCDE120,ZZE12#¥5,800200109-200401

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-13020iCDE120,ZZE12#¥1,660200109-200401

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCDE120,ZZE12#¥100200109-200401

53801FENDER SUB-ASSY, FRONT RH

main53811-13100iCDE120,ZZE12#¥33,400200109-200401

main53811-13110iCDE120,ZZE12#..SOL¥33,400200109-200401

W(SIDE MUDGUARD)

53802FENDER SUB-ASSY, FRONT LH

main53812-13090iCDE120,ZZE12#¥33,400200109-200401

main53812-13100iCDE120,ZZE12#..SOL¥33,400200109-200401

W(SIDE MUDGUARD)

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-13050iCDE120,ZZE12#¥2,910200109-200401

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-13030iCDE120,ZZE12#¥2,910200109-200401

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-13030iCDE120,ZZE12#¥510200109-200401

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53836-13030iCDE120,ZZE12#¥510200109-200401

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-13020iCDE120,ZZE12#¥1,600200109-200401

53875ALINER, FRONT FENDER, RH

main53875-13020iCDE120,ZZE12#¥5,900200109-200401

53876ALINER, FRONT FENDER, LH

main53876-13020iCDE120,ZZE12#¥5,900200109-200401

53879ARETAINER, FRONT FENDER LINER

main53879-13010iCDE120,ZZE12#¥740200206-200401

main53879-47010iCDE120,ZZE12#¥580200109-200206

53882PSEAL, FRONT FENDER, RH

main53882-16030iCDE120,ZZE12#¥60200109-200401

53883KSEAL, FRONT FENDER, LH

main53882-16030iCDE120,ZZE12#¥60200109-200401

5701

9011906137

main90119-06137¥70

9011906877

main90119-06877¥70

9015960304

main90159-60304¥120

9015960488

main90159-60488¥70

9015960602

main90159-60602¥60

9018906013

main90189-06013¥70

9046705138

main90467-05138¥200

9046707132

main90467-07132¥90

9046708124

main90467-08124¥260

9046710183

main90467-10183¥110

9054115019

main90541-15019¥200

28 parts on this diagram · 1 diagram in section
