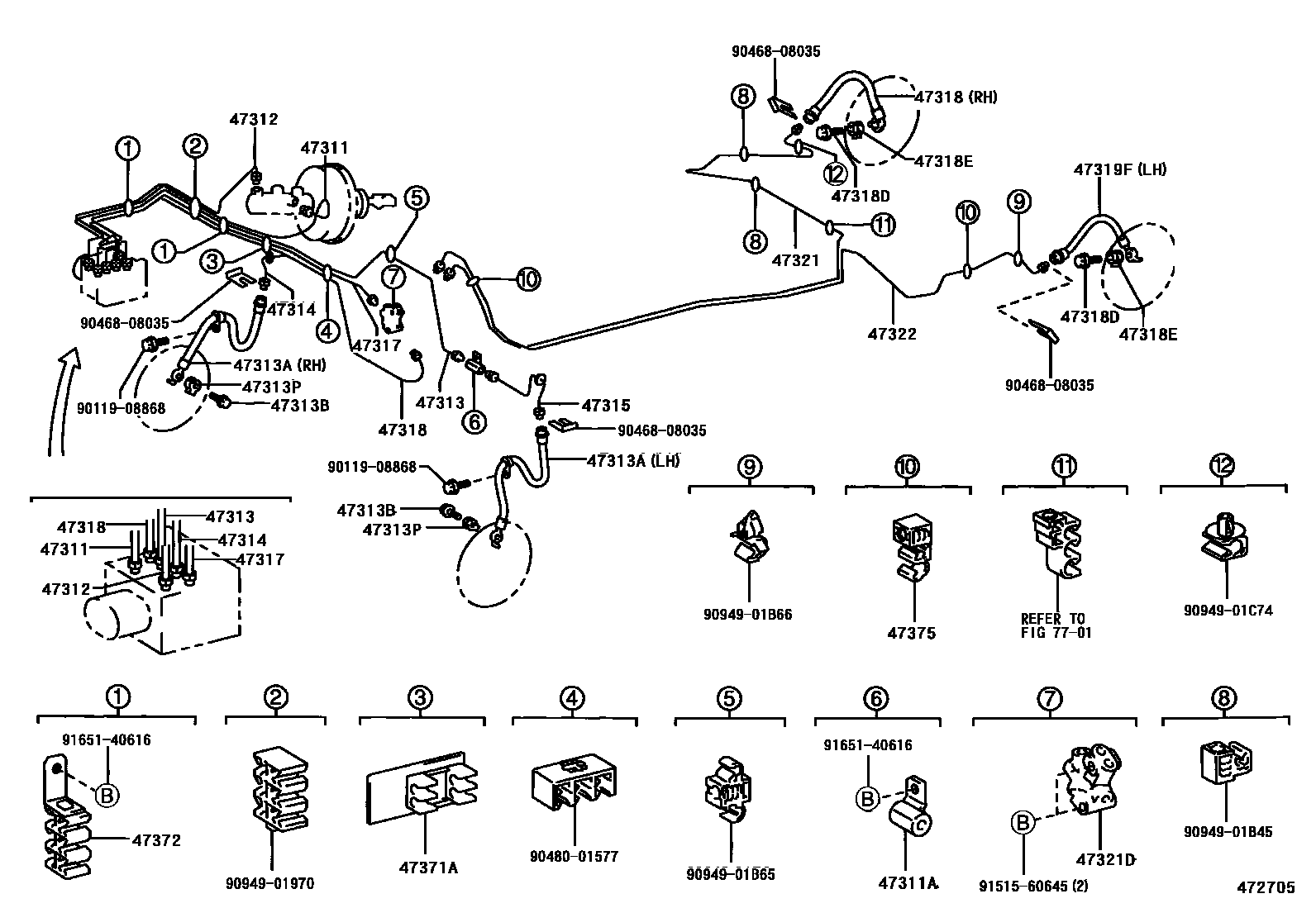

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0003 1 0004 1W(VSC) 0005 1 0006 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-12680iCDE120,ZZE12#..RHD¥1,320200109-200401

main47311-12690iZZE122..RHD..ATM..SOL¥1,090200109-200401

W(VSC)

main47311-12810iCDE120,ZZE12#..LHD¥2,000200110-200401

main47311-13050iZZE122..LHD..ATM..SOL¥2,530200110-200401

W(VSC)

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10167iCDE120,ZZE12#..RHD¥430200109-200401

47312TUBE, FRONT BRAKE, NO.2

main47312-12410iCDE120,ZZE12#..RHD¥1,090200109-200401

main47312-12420iZZE122..RHD..ATM..SOL¥940200109-200401

W(VSC)

main47312-12430iCDE120,ZZE12#..LHD¥2,170200110-200401

main47312-13040iZZE122..LHD..ATM..SOL¥2,900200110-200401

W(VSC)

47313TUBE, FRONT BRAKE, NO.3

main47313-12480iCDE120,ZZE12#..RHD¥1,820200109-200401

main47313-12490iZZE122..RHD..ATM..SOL¥1,820200109-200401

W(VSC)

main47313-12620iCDE120,ZZE12#..LHD¥2,000200110-200401

main47313-12640iZZE122..LHD..ATM..SOL¥1,820200110-200401

W(VSC)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C47iCDE120,ZZE12#¥2,610200109-200401

RH

main90947-02C48iCDE120,ZZE12#¥2,610200109-200401

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iCDE120,ZZE12#¥220200109-200401

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iCDE120,ZZE12#¥280200109-200401

47314TUBE, FRONT BRAKE, NO.4

main47314-12420iCDE120,ZZE12#..RHD¥1,470200109-200401

main47314-12430iZZE122..RHD..ATM..SOL¥1,470200109-200401

W(VSC)

main47314-12440iCDE120,ZZE12#..LHD¥1,460200110-200401

main47314-12520iZZE122..LHD..ATM..SOL¥1,470200110-200401

W(VSC)

47315TUBE, FRONT BRAKE, NO.5

main47315-12490iCDE120,ZZE12#..RHD¥750200109-200401

main47315-12510iCDE120,ZZE12#..LHD¥750200110-200401

main47315-12570iZZE122..LHD..ATM..SOL¥750200110-200401

W(VSC)

47317TUBE, FRONT BRAKE, NO.7

main47317-12190iCDE120,ZZE12#..RHD¥1,470200109-200401

main47317-12210iZZE122..RHD..ATM..SOL¥1,470200109-200401

W(VSC)

main47317-12220iCDE120,ZZE12#..LHD¥1,460200110-200401

main47317-12260iZZE122..LHD..ATM..SOL¥1,470200110-200401

W(VSC)

47318TUBE, FRONT BRAKE, NO.8

main47318-12330iCDE120,ZZE12#..RHD¥1,650200109-200401

main47318-12350iZZE122..RHD..ATM..SOL¥1,470200109-200401

W(VSC)

main47318-12400iCDE120,ZZE12#..LHD¥1,820200110-200401

main47318-12410iZZE122..LHD..ATM..SOL¥1,630200110-200401

W(VSC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10045iCDE120,ZZE12#¥330200109-200401

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iCDE120,ZZE12#¥280200109-200401

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C50iCDE120,ZZE12#¥1,490200109-200401

47321TUBE, REAR BRAKE, NO.1

main47321-13160iCDE120,ZZE12#¥4,110200109-200401

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12088iCDE120,ZZE12#¥2,690200109-200401

47322TUBE, REAR BRAKE, NO.2

main47322-13200iCDE120,ZZE12#¥3,780200109-200401

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12230iCDE120,ZZE12#¥320200109-200401

main47371-13020iZZE122..LHD..ATM..SOL¥470200110-200401

W(VSC)

47372CLAMP, BRAKE TUBE, NO.2

main47371-13030iZZE122..LHD..ATM..SOL¥460200110-200401

W(VSC)

main47374-12050iCDE120,ZZE12#¥580200109-200401

47375CLAMP, BRAKE TUBE, NO.5

main77299-32030iCDE120,ZZE12#¥370200109-200401

7701

9011908868

main90119-08868¥70

9046808035

main90468-08035¥110

9048001577

main90480-01577¥350

9094901970

main90949-01970¥500

9094901B45

main90949-01B45¥220

9094901B65

main90949-01B65¥190

9094901B66

main90949-01B66¥110

9094901C74

main90949-01C74¥360

9151560645

main91515-60645¥110

9165140616

main91651-40616¥60

31 parts on this diagram · 6 diagrams in section
