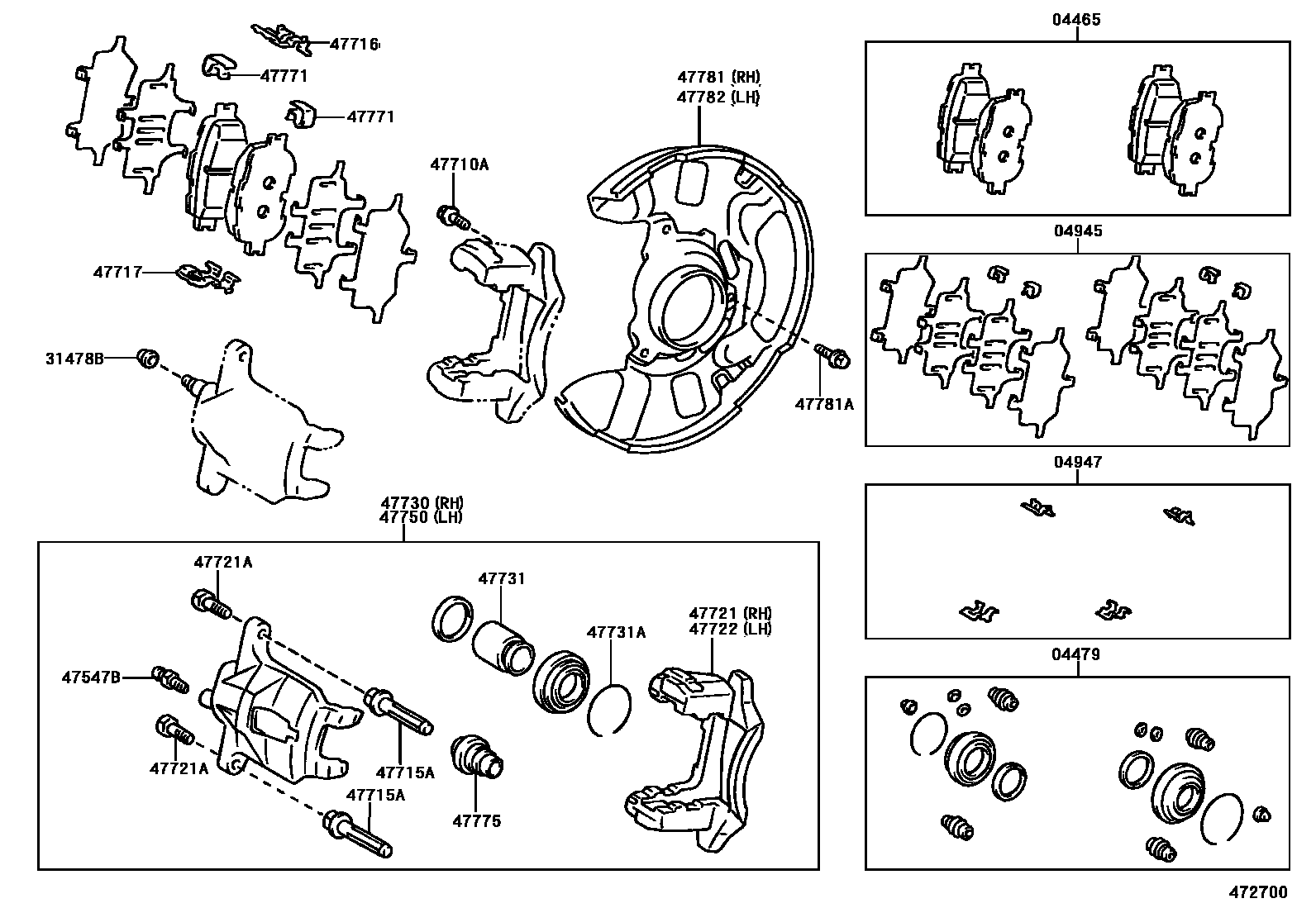

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-13030iCDE120,ZZE122¥10,500200109-200207

MARK AISIN PC553H

sub04465-2B030¥10,500

main04465-13050iZZE121¥7,800200110-200401

MARK AISIN PC553H

main04465-2B040iCDE120,ZZE122¥10,500200207-200401

MARK AISIN PC553H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20320iZZE121¥3,600200110-200401

sub04478-47060¥3,130

main04479-20330iCDE120,ZZE122¥3,600200109-200401

sub04478-13020¥3,600

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13030iCDE120,ZZE122¥2,960200207-200401

main04945-20210iZZE121¥910200110-200401

main04945-32230iCDE120,ZZE122¥3,010200109-200207

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iZZE121¥1,670200110-200401

main04947-20120iCDE120,ZZE122¥1,390200109-200401

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCDE120,ZZE12#¥160200109-200401

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCDE120,ZZE12#¥200200109-200401

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iCDE120,ZZE12#¥160200109-200401

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22080iCDE120,ZZE122¥820200109-200401

main47715-52010iZZE121¥400200110-200401

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20200iZZE121¥440200110-200401

main47716-20210iCDE120,ZZE122¥440200109-200401

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20100iZZE121¥440200110-200401

main47717-20110iCDE120,ZZE122¥440200109-200401

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20440iZZE121¥8,400200110-200401

main47721-20450iCDE120,ZZE122¥8,500200109-200207

main47721-20460iCDE120,ZZE122¥8,400200207-200401

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iCDE120,ZZE12#¥90200109-200401

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20130iZZE121¥8,400200110-200401

main47722-20140iCDE120,ZZE122¥8,500200109-200207

main47722-20150iCDE120,ZZE122¥8,400200207-200401

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-13030iCDE120,ZZE122¥44,400200109-200207

sub47730-20640¥44,400

main47730-13050iCDE120,ZZE122200211-200401

main47730-20600iZZE121¥37,000200110-200401

main47730-20640iCDE120,ZZE122¥44,400200207-200211

47731PISTON, FRONT DISC BRAKE

main47731-20260iZZE121¥2,490200110-200401

main47731-44010iCDE120,ZZE122¥2,980200109-200401

sub47731-33010¥3,000

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iZZE121¥190200110-200401

main90522-66001iCDE120,ZZE122¥160200109-200401

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-13030iCDE120,ZZE122¥44,400200109-200207

sub47750-20640¥44,400

main47750-13050iCDE120,ZZE122200211-200401

main47750-20510iZZE121¥37,000200110-200401

main47750-20640iCDE120,ZZE122¥44,400200207-200211

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32040iCDE120,ZZE122¥240200109-200401

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iCDE120,ZZE122¥840200109-200401

sub47775-50010¥580

main47775-52010iZZE121¥350200110-200401

sub47775-02130¥230

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12240iCDE120,ZZE12#¥1,690200109-200401

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iCDE120,ZZE12#¥90200109-200401

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12240iCDE120,ZZE12#¥1,690200109-200401

22 parts on this diagram · 2 diagrams in section
