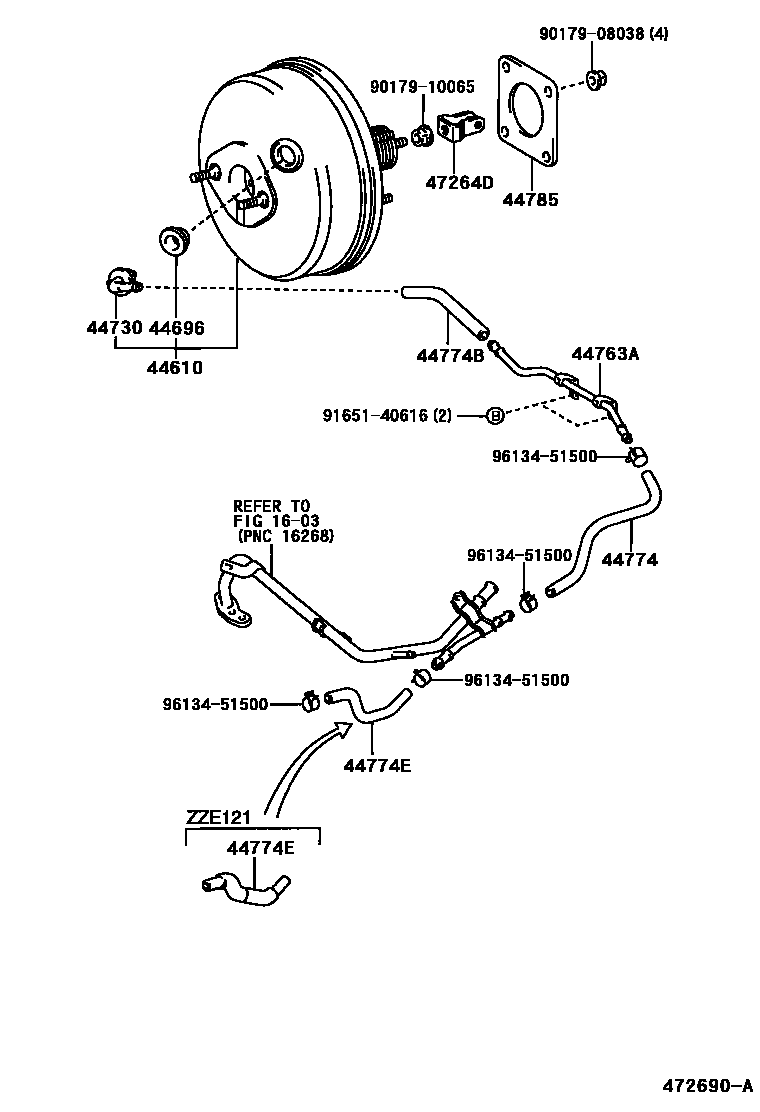

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(VSC)

1603

44610BOOSTER ASSY, BRAKE

main44610-13060iZZE122..RHD..ATM..SOL¥46,700200109-200401

W(VSC)

main44610-13080iZZE12#..RHD¥46,700200109-200401

main44610-13090iCDE120..RHD¥46,700200110-200401

main44610-13100iZZE122..LHD..ATM..SOL¥46,700200110-200401

W(VSC)

main44610-13110iZZE12#..LHD¥46,700200110-200401

main44610-13120iCDE120..LHD¥46,600200110-200401

44696GROMMET, CHECK VALVE

main90480-24015iZZE12#¥130200109-200401

main90480-24439iZZE122..ATM..SOL¥390200109-200401

W(VSC)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZZE122..ATM..SOL¥1,720200109-200401

W(VSC)

main44730-28010iZZE12#¥1,360200109-200401

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12340iZZE12#..RHD¥1,930200109-200401

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12420iZZE12#..RHD¥1,870200109-200401

44774BHOSE, UNION TO CONNECTOR TUBE

main95446-09180iZZE12#..RHD¥410200109-200401

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12470iZZE121¥1,350200110-200401

main44774-13020iCDE120..RHD¥2,690200110-200401

main44774-20310iZZE122¥840200109-200401

44785GASKET, BRAKE BOOSTER

main44785-20020iCDE120,ZZE12#¥320200109-200401

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iCDE120,ZZE12#¥250200109-200401

9017908038

main90179-08038¥130

9017910065

main90179-10065¥90

9165140616

main91651-40616¥60

9613451500

main96134-51500¥180

14 parts on this diagram · 6 diagrams in section
