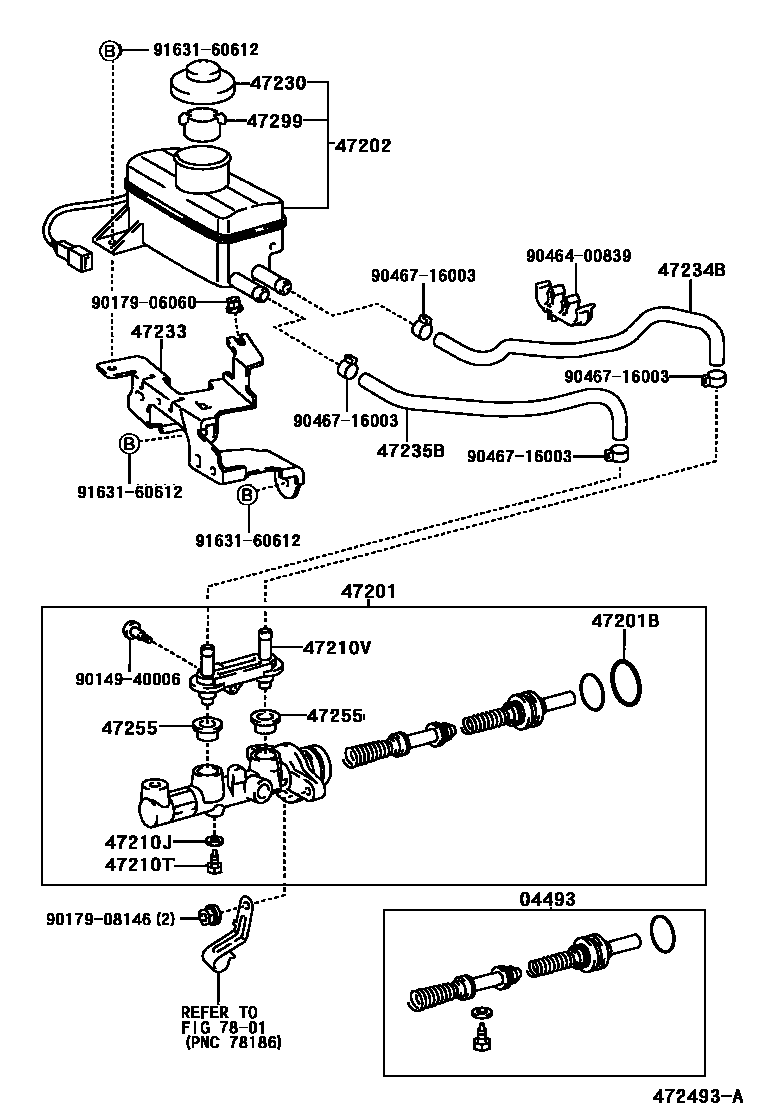

BRAKE MASTER CYLINDER

0001 1 0002 1W(VSC) 0003 1 0004 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-13010iCDE120,ZZE12#..LHD200306-200401

main04493-1A010iCDE120,ZZE12#200109-200401

sub04493-1A030

main04493-1A020iZZE122..ATM..SOL200109-200401

W(VSC)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-13070iCDE120,ZZE12#..RHD200109-200401

main47201-13080iZZE122..RHD..ATM..SOL200109-200401

W(VSC)

main47201-13090iZZE122..LHD..ATM..SOL200110-200401

W(VSC)

main47201-13100iZZE122..LHD..ATM200110-200401

main47201-13110iCDE120,ZZE12#..LHD..MTM200110-200401

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iCDE120,ZZE12#200109-200401

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-13020iZZE122..RHD..ATM200109-200401

main47220-13040iCDE120,ZZE12#..RHD..MTM200109-200401

main47220-13050iZZE122..LHD..ATM200110-200401

main47220-13060iCDE120,ZZE12#..LHD..MTM200110-200401

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iCDE120,ZZE12#200112-200401

main90430-06104iCDE120,ZZE12#200109-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCDE120,ZZE12#200109-200401

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40011iCDE120,ZZE12#..RHD200109-200401

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iCDE120,ZZE12#200109-200401

47233BRACKET, RESERVOIR

main47233-13020iCDE120,ZZE12#..RHD200109-200401

47234BTUBE, RESERVOIR, NO.1

main47234-13020iCDE120,ZZE12#..RHD200109-200401

main47234-13030iZZE122..RHD..ATM..SOL200109-200401

W(VSC)

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-13020iCDE120,ZZE12#..RHD200109-200401

main47235-13030iZZE122..RHD..ATM..SOL200109-200401

W(VSC)

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iCDE120,ZZE12#200109-200401

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iCDE120,ZZE12#..RHD200109-200401

main47299-25010iCDE120,ZZE12#..LHD200110-200401

7801

9014940006

main90149-40006

9017906060

main90179-06060

9017908146

main90179-08146

9046400839

main90464-00839

9046716003

main90467-16003

9163160612

main91631-60612

20 parts on this diagram · 4 diagrams in section
