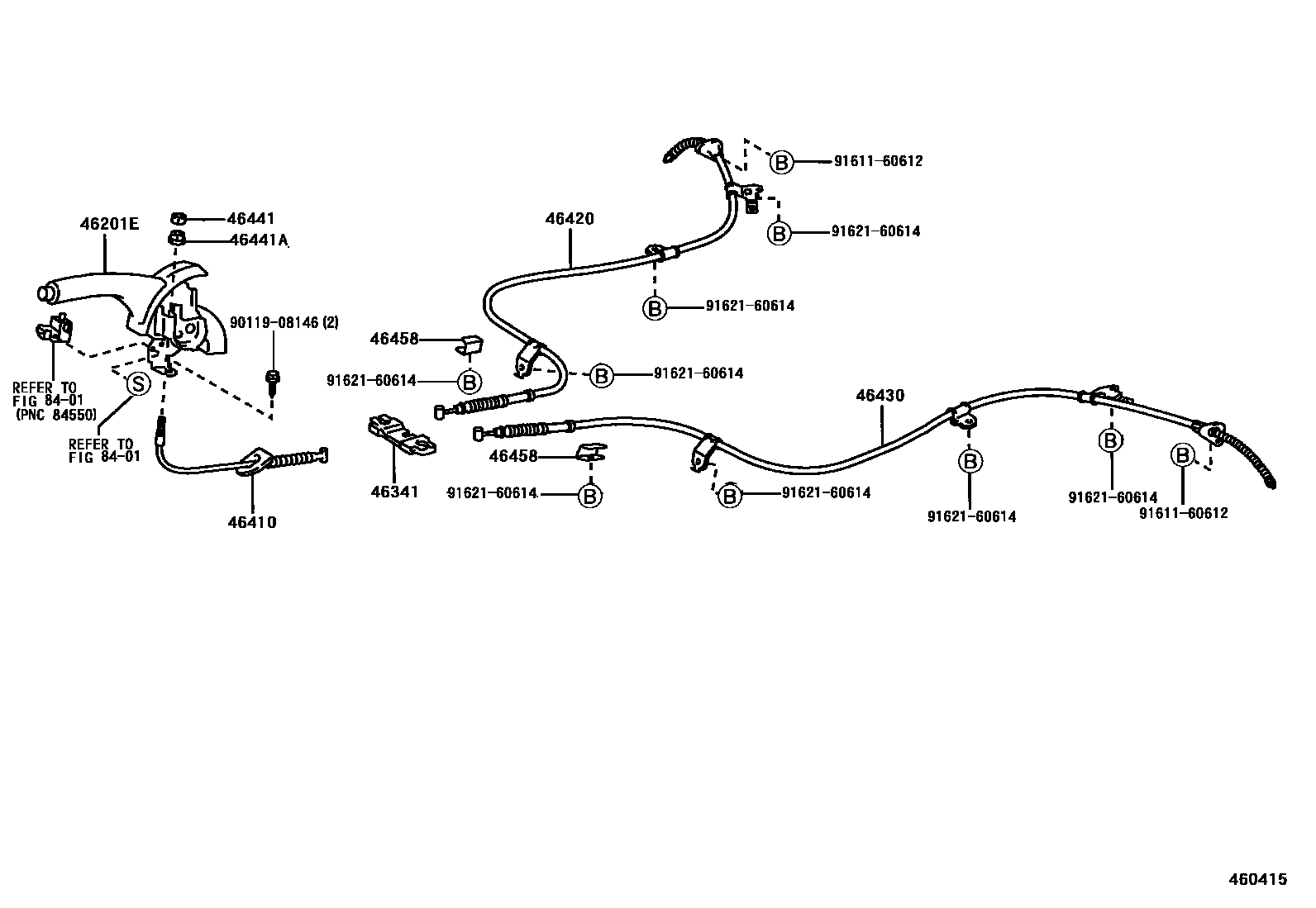

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-13040-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM0#,1#

main46201-13040-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM1#

46341EQUALIZER, PARKING BRAKE

main46341-20070iCDE120,ZZE12#200109-200401

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42040iCDE120,ZZE12#200109-200401

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12490iCDE120,ZZE12#200109-200401

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12400iCDE120,ZZE12#200109-200401

46441NUT, WIRE ADJUSTING, NO.1

main90179-06058iCDE120,ZZE12#200109-200401

sub90179-06299

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iCDE120,ZZE12#200109-200401

46458RETAINER, CABLE

main46458-28010iCDE120,ZZE12#200109-200401

8401

9011908146

main90119-08146

9161160612

main91611-60612

9162160614

main91621-60614

12 parts on this diagram · 2 diagrams in section
