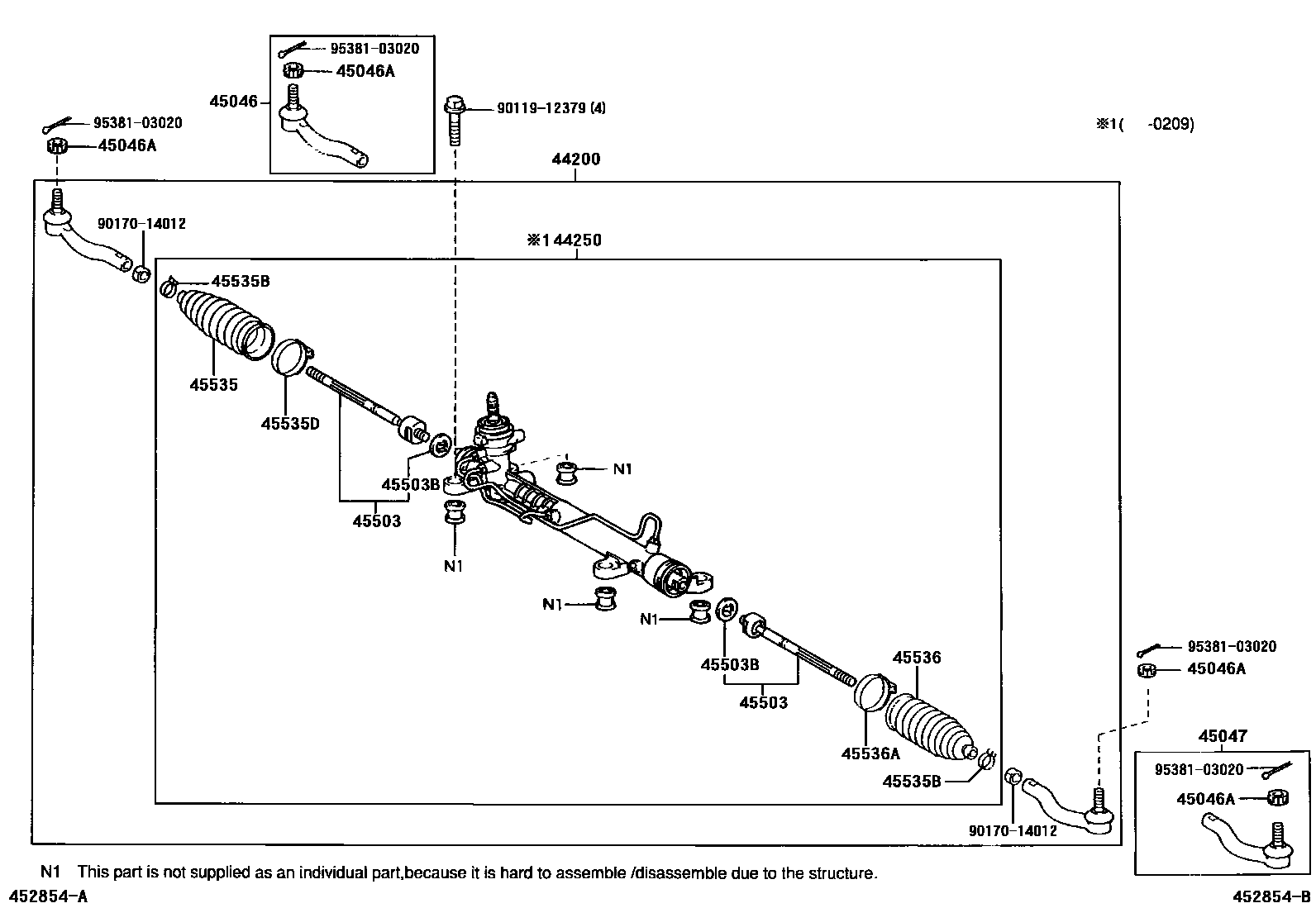

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44200LINK ASSY, POWER STEERING

main44200-13021iCDE120,ZZE12#..RHD200109-200401

sub44250-13021

sub45046-49115

sub45047-49045

sub90170-14012

main44200-13030iCDE120,ZZE12#..LHD200110-200401

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-13021iCDE120,ZZE12#..RHD200109-200209

sub44200-13011

main44250-13030iCDE120,ZZE12#..LHD200110-200209

sub44200-13030

45046END SUB-ASSY, TIE ROD, RH

main45046-49115iCDE120,ZZE12#200109-200401

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCDE120,ZZE12#200109-200401

45047END SUB-ASSY, TIE ROD, LH

main45047-49045iCDE120,ZZE12#200109-200401

45503END SUB-ASSY, STEERING RACK

main45503-19255iCDE120,ZZE12#200109-200401

sub45503-19256

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009iCDE120,ZZE12#200109-200401

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-13010iCDE120,ZZE12#200109-200401

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iCDE120,ZZE12#200109-200401

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iCDE120,ZZE12#200109-200401

45536BOOT, STEERING RACK, NO.2

main45535-13010iCDE120,ZZE12#200109-200401

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iCDE120,ZZE12#200109-200401

9011912379

main90119-12379

9017014012

main90170-14012

9538103020

main95381-03020

15 parts on this diagram · 4 diagrams in section
