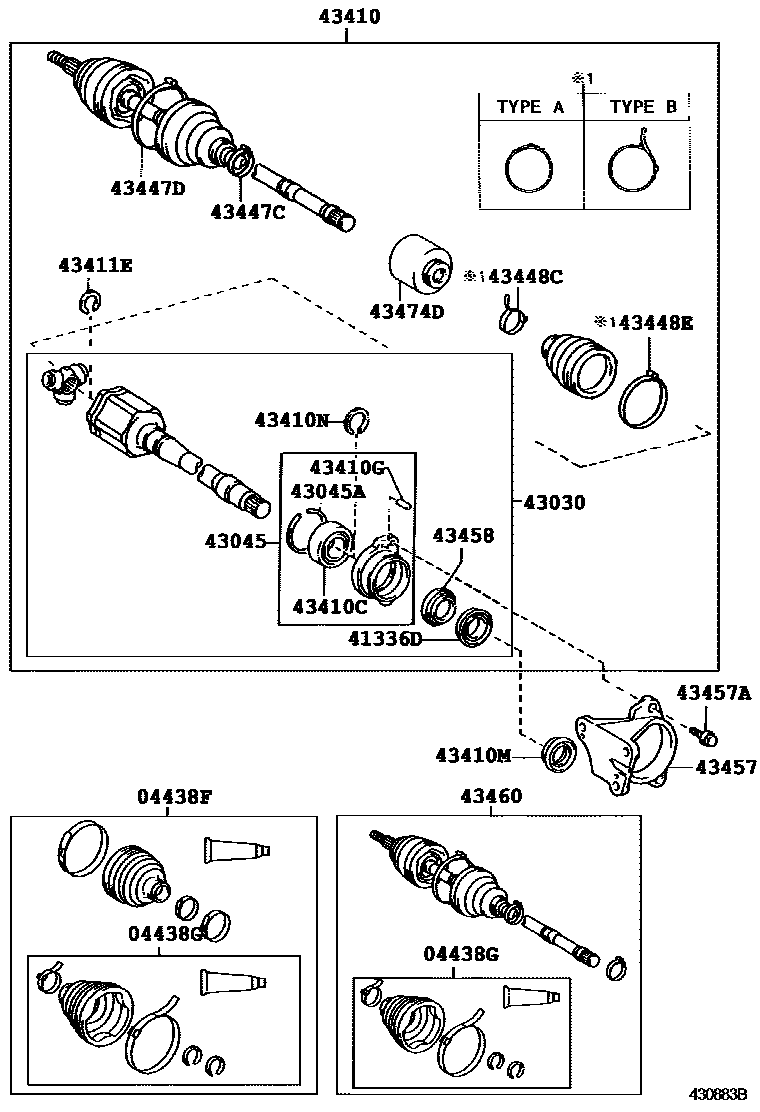

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12481iZZE122¥10,800200109-200401

sub04428-12250¥10,800

main04438-12610iZZE121¥10,800200110-200401

sub04428-12260¥10,800

main04438-28051iCDE120¥10,800200110-200207

sub04438-28052¥10,800

main04438-28052iCDE120¥10,800200207-200401

sub04428-42070¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12470iZZE122¥6,700200109-200401

sub04438-32240¥6,700

main04438-28040iCDE120¥6,700200110-200207

sub04438-28041¥6,700

main04438-28041iCDE120¥6,700200207-200401

sub04438-42180¥5,500

main04438-52051iZZE121¥6,700200110-200401

sub04438-32231¥6,700

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iZZE121¥130200110-200401

main41336-12020iCDE120¥330200110-200401

main41336-12060iZZE122¥200200109-200401

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-28010iCDE120¥41,800200110-200207

sub43030-28011¥34,800

main43030-28011iCDE120¥34,800200208-200401

main43403-12040iZZE121¥27,100200110-200401

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20050iCDE120¥8,200200110-200401

sub43045-64020¥4,940

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iCDE120¥100200110-200401

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12660iZZE121¥82,900200110-200401

main43410-12670iZZE122¥82,800200109-200401

main43410-13050iCDE120¥82,900200110-200401

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41002iCDE120¥2,750200110-200401

sub90363-41003¥2,750

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iCDE120¥90200110-200401

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iZZE121¥270200110-200401

main90311-35045iZZE122..ATM¥290200109-200401

main90311-35051iZZE122..MTM¥270200109-200401

sub90311-35057¥350

main90311-40025iCDE120¥310200110-200401

sub90311-40030¥310

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iCDE120¥100200110-200401

main90521-26004iZZE121¥100200110-200401

main90521-27005iZZE122¥110200109-200401

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iCDE120¥40200110-200401

main90520-22005iZZE12#¥100200109-200401

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iZZE12#¥370200109-200401

ID=29.6

sub42345-12190¥240

main42345-20040iCDE120¥320200110-200401

sub42345-42100¥220

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iZZE12#¥580200109-200401

ID=92.0

sub42345-12180¥330

main42345-28020iCDE120¥510200110-200401

sub42345-42090¥340

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iCDE120¥200200204-200401

TYPE A:REFER TO ILLUSTRATION

main90949-01078iZZE12#¥80200109-200401

main90949-01559iCDE120¥320200204-200401

TYPE B:REFER TO ILLUSTRATION

main90949-01559iCDE120¥320200110-200204

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iCDE120,ZZE12#¥300200110-200401

TYPE A:REFER TO ILLUSTRATION

main90949-01076iCDE120¥380200110-200401

TYPE B:REFER TO ILLUSTRATION

sub42345-12160¥300

main90949-01076iZZE12#¥380200109-200401

TYPE B:REFER TO ILLUSTRATION,ORANGE MARK

sub42345-12160¥300

main90949-01946iZZE12#¥230200109-200401

TYPE B:REFER TO ILLUSTRATION,NO MARK

sub42345-12160¥300

43457BRACKET, DRIVE SHAFT BEARING

main43457-20070iCDE120¥6,200200110-200401

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10285iCDE120¥250200110-200401

*10-1.25PX22-19.5

sub90105-10361¥110

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iCDE120¥910200110-200401

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49165iCDE120¥51,800200110-200207

sub43460-49166¥49,400

main43460-49167iCDE120¥49,500200207-200401

main43460-80001iZZE121¥60,600200110-200401

main43460-80004iZZE122¥57,400200109-200401

sub43460-80043¥57,400

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12120iZZE12#¥7,500200109-200401

sub43474-12210¥4,640

main43474-44010iCDE120¥3,940200110-200401

sub43474-44020¥2,730

21 parts on this diagram · 3 diagrams in section
