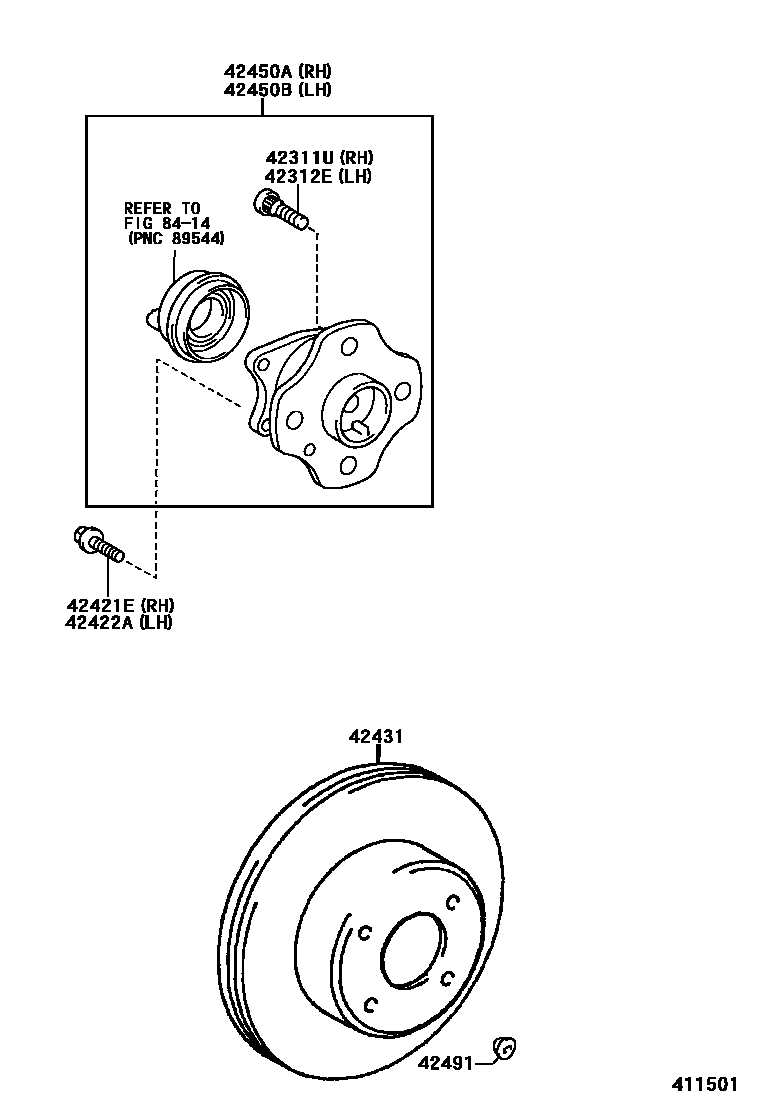

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iCDE120,ZZE12#¥240200109-200401

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iCDE120,ZZE12#¥240200109-200401

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10470iCDE120,ZZE12#¥170200109-200209

main90105-10507iCDE120,ZZE12#¥120200209-200401

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10470iCDE120,ZZE12#¥170200109-200209

main90105-10507iCDE120,ZZE12#¥120200209-200401

42431DISC, REAR

main42431-12210iCDE120,ZZE12#¥10,100200109-200401

sub42431-12250¥10,200

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-13010iCDE120,ZZE12#¥38,200200109-200401

sub42450-12070¥39,500

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-13010iCDE120,ZZE12#¥38,200200109-200401

sub42450-12070¥39,500

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iCDE120,ZZE12#¥140200109-200401

8414

9 parts on this diagram · 1 diagram in section
