TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

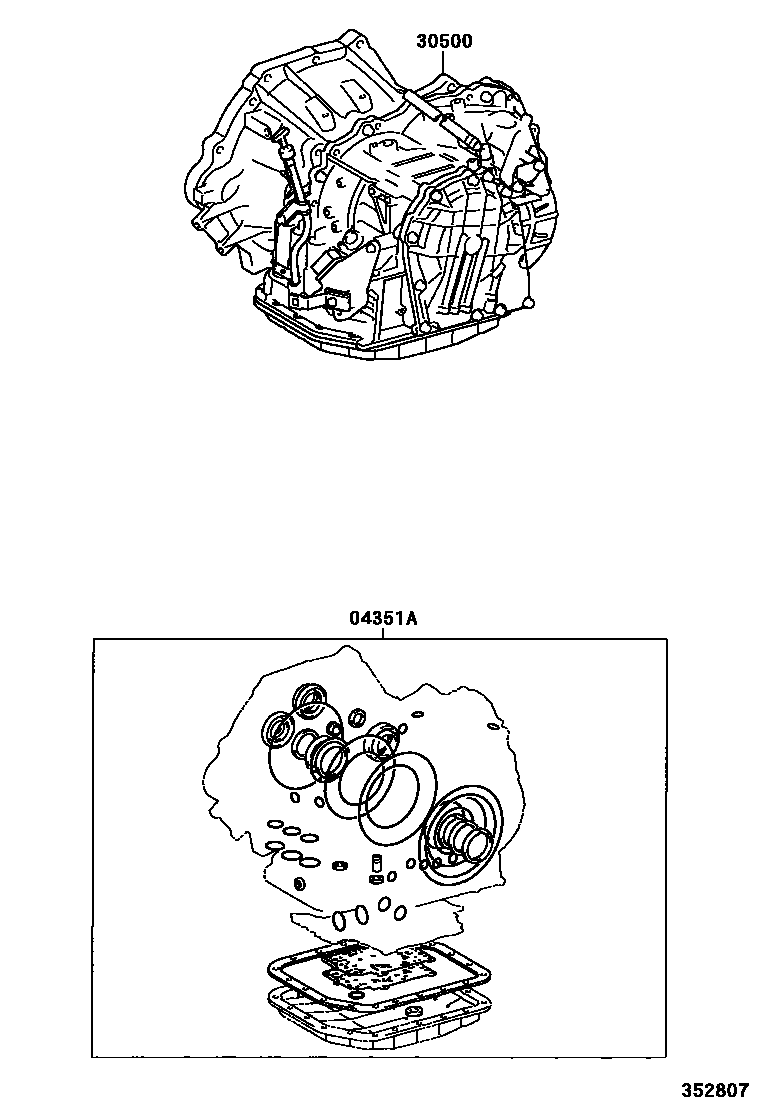

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20120i200109-200401

30500TRANSAXLE ASSY, AUTOMATIC

main30500-13050i200109-200401

U341E

2 parts on this diagram · 1 diagram in section
