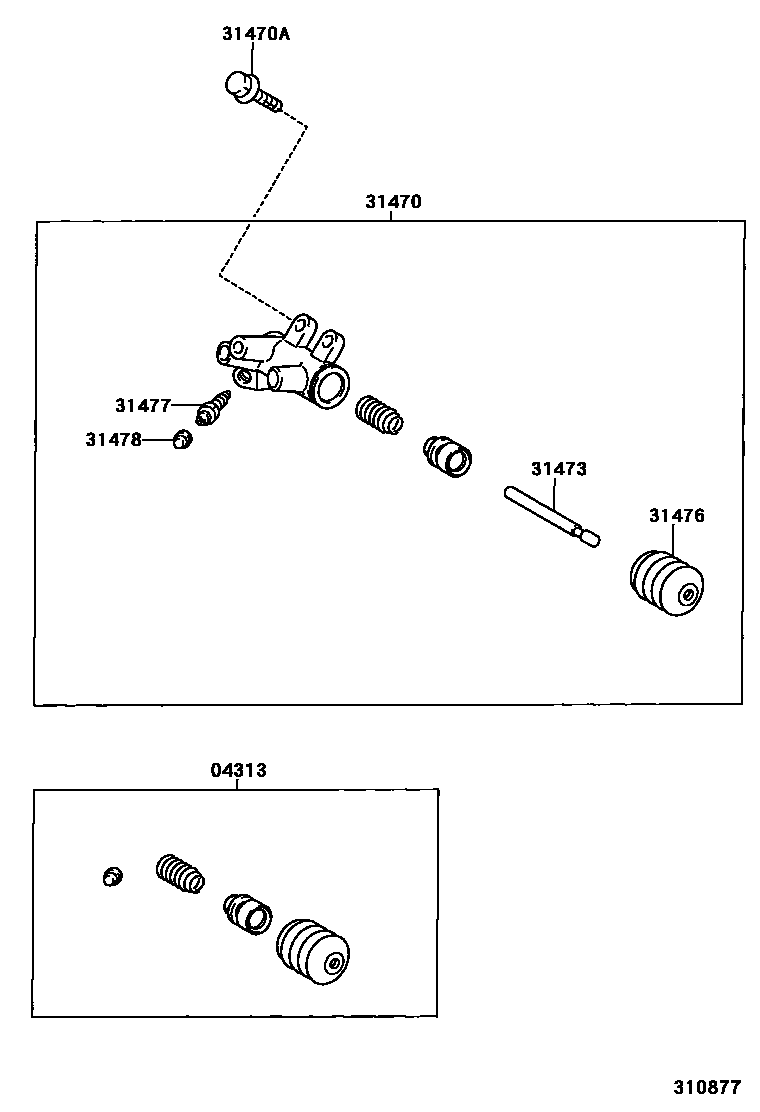

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iCDE120¥780200110-200401

main04313-17040iZZE12#..MTM¥860200109-200401

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12111iZZE12#..MTM¥7,400200109-200401

sub31470-12140¥7,400

main31470-32022iCDE120¥7,400200110-200309

sub31470-32023¥7,400

main31470-32023iCDE120¥7,400200309-200401

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCDE120¥80200110-200401

*8-1.25PX25-20.1

main91611-60822iZZE12#..MTM¥170200109-200401

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE12#..MTM¥470200109-200401

main31473-22010iCDE120¥720200110-200309

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCDE120,ZZE12#..MTM¥230200109-200401

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iCDE120,ZZE12#..MTM¥200200109-200401

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCDE120,ZZE12#..MTM¥160200109-200401

7 parts on this diagram · 1 diagram in section
