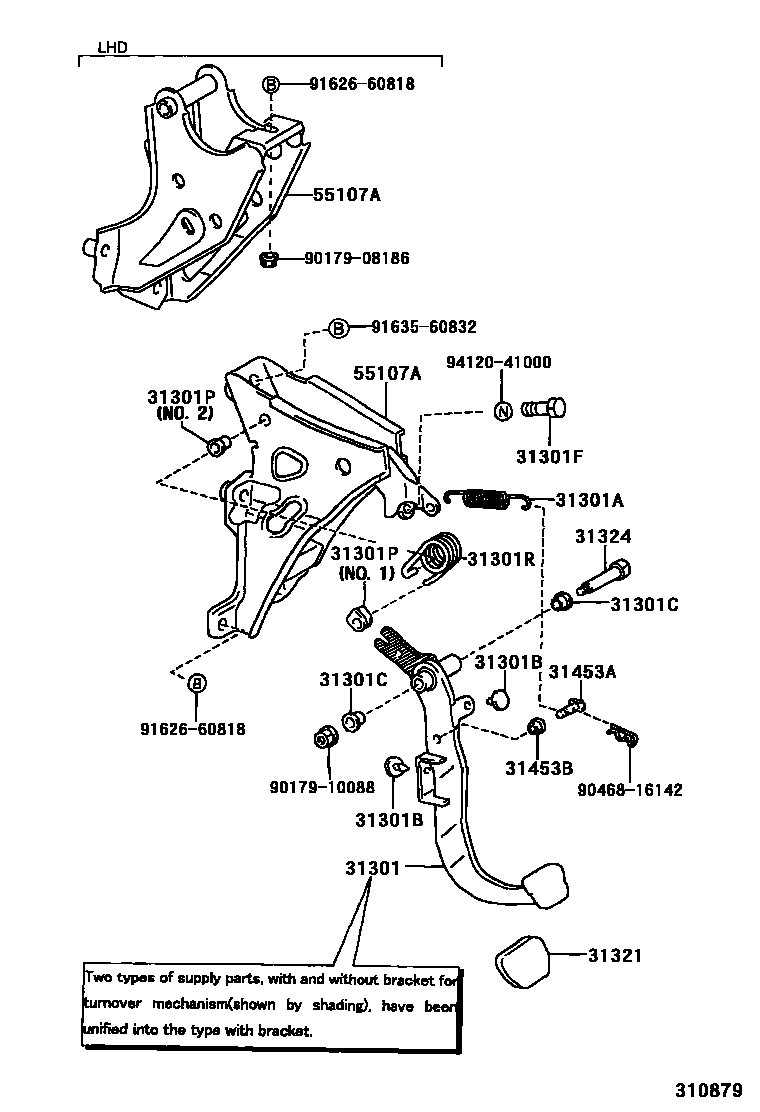

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-13010iCDE120,ZZE12#..LHD..MTM¥2,500200110-200401

main31301-13030iCDE120,ZZE12#..RHD..MTM¥2,500200109-200401

REFER TO THE COMMENT IN THE ILLUSTRATION

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZZE121..LHD¥100200110-200401

main90507-14050iZZE121..RHD¥140200110-200401

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iCDE120,ZZE12#..RHD..MTM¥110200109-200401

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iCDE120,ZZE12#..MTM¥120200109-200401

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iCDE120,ZZE12#..MTM¥110200109-200401

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iCDE120,ZZE122..MTM¥110200109-200401

NO.1

main90389-05019iCDE120,ZZE122..MTM¥270200109-200401

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iCDE120,ZZE122..MTM¥850200109-200401

31321PAD, CLUTCH PEDAL

main31321-52010iCDE120,ZZE12#..MTM¥200200109-200401

31324SHAFT, CLUTCH PEDAL

main90109-10167iCDE120,ZZE12#..MTM¥190200109-200401

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iCDE120,ZZE12#..MTM¥220200109-200401

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCDE120,ZZE12#..MTM¥240200109-200401

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12200iCDE120,ZZE12#..RHD..MTM¥3,370200109-200401

main55107-13010iZZE121..LHD¥2,680200110-200401

main55107-13020iCDE120,ZZE122..LHD..MTM¥2,680200110-200401

9017908186

main90179-08186¥210

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

9162660818

main91626-60818¥130

9163560832

main91635-60832¥80

9412041000

main94120-41000¥80
