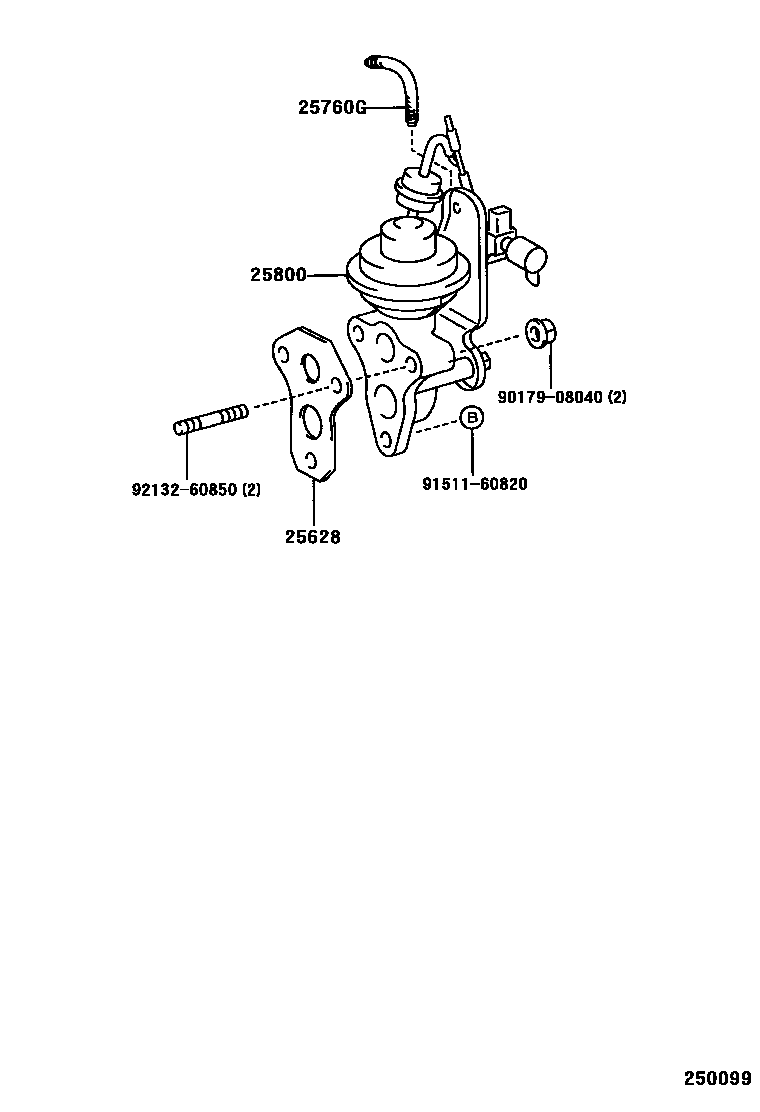

EXHAUST GAS RECIRCULATION SYSTEM

25628GASKET, EGR INLET

main25628-27010i1CDFTV..CDE120200110-200401

25760GHOSE ASSY, VACUUM TRANSMITTING

main25760-27050i1CDFTV..CDE120200110-200401

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-27040i1CDFTV..CDE120200110-200401

9017908040

main90179-08040

9151160820

main91511-60820

9213260850

main92132-60850

6 parts on this diagram · 1 diagram in section
