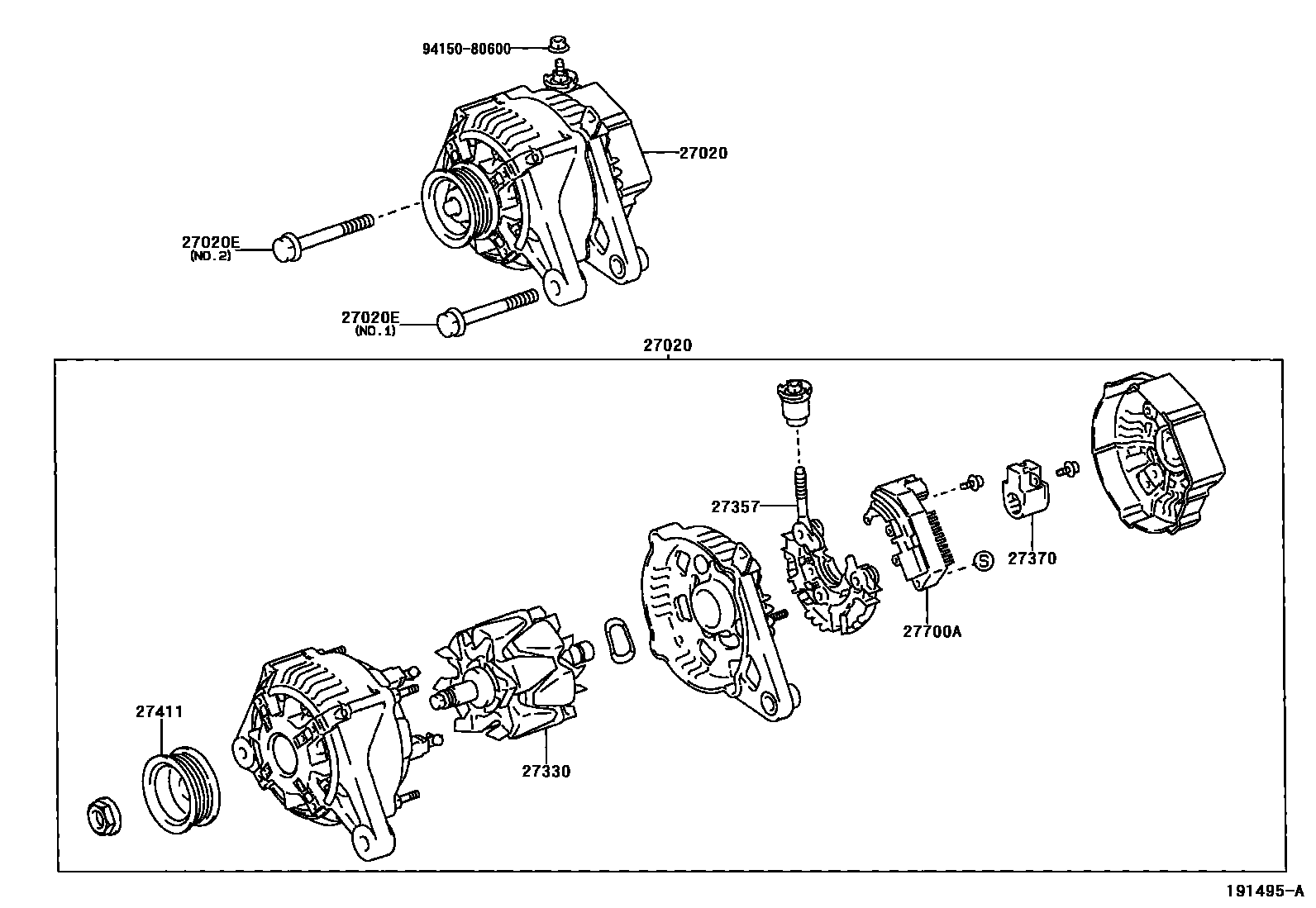

ALTERNATOR

0001 112V 80A 0002 112V 90,130A

27020ALTERNATOR ASSY

main27060-22100i1ZZFE,3ZZFE..ZZE12#200109-200401

12V 80A

main27060-27060i1CDFTV..CDE120..LHD200110-200401

12V 90A

main27060-27070i1CDFTV..CDE120200110-200401

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE,3ZZFE..ZZE12#200109-200401

NO.1

main90901-05004i1CDFTV..CDE120200110-200401

main91511-80830i1ZZFE,3ZZFE..ZZE12#200109-200401

NO.2

27330ROTOR ASSY, ALTERNATOR

main27330-20130i1CDFTV..CDE120200110-200401

12V 130A

sub27330-33090

main27330-74550i1CDFTV..CDE120..LHD;1ZZFE,3ZZFE..ZZE12#200109-200401

12V 80A,90A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-20130i1CDFTV..CDE120200110-200401

12V 130A

main27357-22050i1ZZFE,3ZZFE..ZZE12#200109-200401

12V 80A

main27357-22070i1CDFTV..CDE120..LHD200110-200401

12V 90A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1CDFTV..CDE120..LHD;1ZZFE,3ZZFE..ZZE12#200109-200401

27411PULLEY, ALTERNATOR

main27411-50050i1ZZFE,3ZZFE..ZZE12#200109-200401

27700AREGULATOR ASSY, GENERATOR

main27700-27080i1CDFTV..CDE120200110-200401

12V 130A

main27700-46060i1ZZFE,3ZZFE..ZZE12#200109-200401

12V 80A

main27700-64090i1CDFTV..CDE120..LHD200110-200401

12V 90A

9415080600

main94150-80600

8 parts on this diagram · 2 diagrams in section
