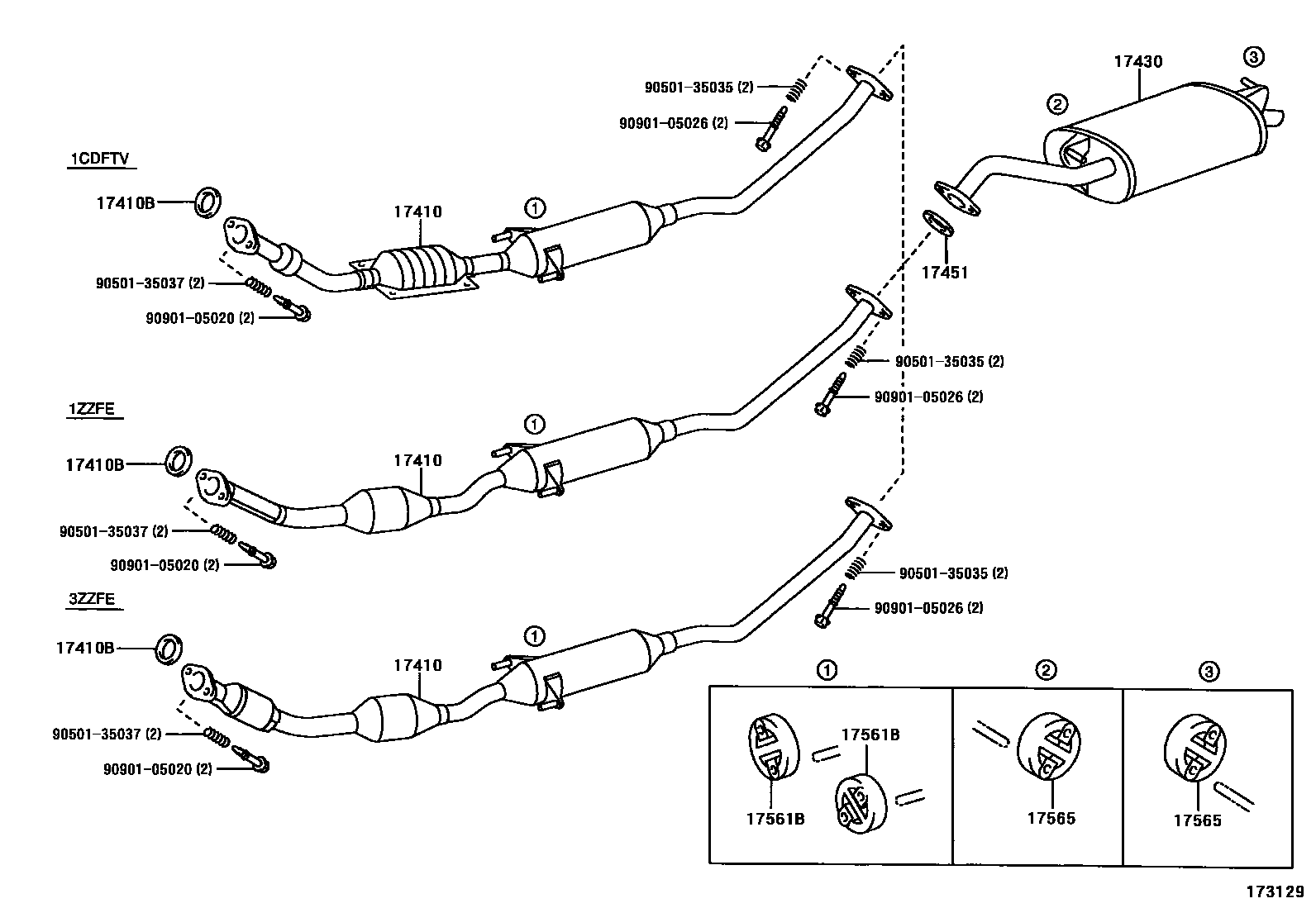

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-22260i3ZZFE..ZZE121200110-200401

*114=*696

main17410-22270i1ZZFE..ZZE122200109-200401

*115=TOYOTA/01-/Y

main17410-27100i1CDFTV..CDE120200110-200401

*114=TOYOTA/U29/N

17410BGASKET, EXHAUST PIPE

main17451-22060i1CDFTV..CDE120200110-200401

main17451-22070i1ZZFE,3ZZFE..ZZE12#200109-200401

17430PIPE ASSY, EXHAUST, TAIL

main17430-22240i3ZZFE..ZZE121200110-200401

main17430-22250i1ZZFE..ZZE122200109-200401

main17430-27120i1CDFTV..CDE120200110-200401

17451GASKET, EXHAUST PIPE

main17451-16030i1CDFTV,1ZZFE..CDE120,ZZE122200109-200401

main17451-64030i3ZZFE..ZZE121200110-200401

sub17451-64031

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-21030i1CDFTV,1ZZFE,3ZZFE..CDE120,ZZE12#200109-200401

sub17565-22030

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-21040i1CDFTV,1ZZFE,3ZZFE..CDE120,ZZE12#200109-200401

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

10 parts on this diagram · 1 diagram in section
